gasification nozzles
- required ND not listed in our online store can be ordered, but it may require consultation
- for more technical information, please contact info@deltastav.sk
|
Boiler type |
Nozzle and cube catalogue numbers |
|
DC18S manufactured until 31.12.2018 |

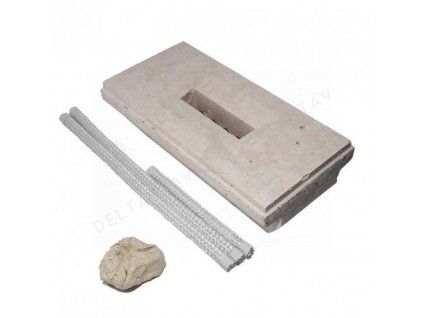

DC0121 - nozzle |
|
DC18S manufactured from 1.1.2019 |
DC0149 - nozzle |
|
DC22S, DC25S, DC30SX, DC25SP(L) |
DC0125 - nozzle |
|
DC32S, DC40SX, DC32SP(L), DC32, DC32G |

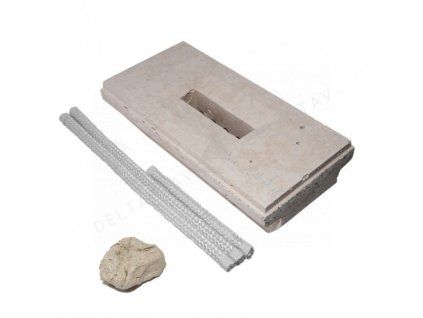

DC0131 - nozzle |
|
DC100 – complete (2 parts) |
DC0135 - nozzle |
|
DC50S manufactured until 31.12.2009 |
DC0133 - nozzle |
|
DC50S manufactured from 1.1.2010 to 31.3.2018 (cube also required – nozzle extension DC0031) |
DC0140 - nozzle |
|
DC50S manufactured from 1.4.2018 - from serial no. 348284, (cube also required – nozzle extension DC0031) |

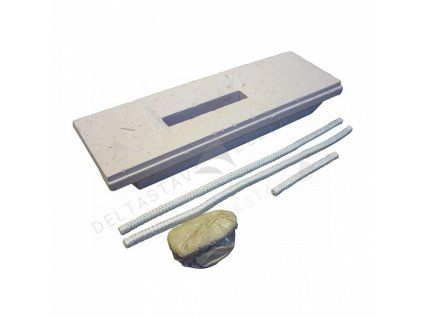

DC0148 - nozzle |
|
DC40GS, GS40- until 31.5.2018 |
DC0132 - nozzle |
|
DC70GSX with 800 mm deep chamber |
DC0134 - nozzle |
|
DC75SE (complete nozzle DC0130 with cube DC0129) |
DC0179 - nozzle+cube |
|
DC75SE (cube also required – nozzle extension DC0129) |
DC0130 - nozzle |
|
DC25GS, DC30GD, DC30SE, DC30GSE, DC30GSP(L), GS25, GS32, DC35SF |
DC0180- nozzle |
|
DC25GD, DC25GSP(L) |
DC0126 - nozzle |
|
DC150S (cube also required – nozzle extension DC0031) |
DC0192 - nozzle |
|
DC105S |
DC0200 - nozzle |
|
DC15GS, GS15 |
DC0123 - nozzle |
|
DC18 |
DC0122 - nozzle |
|
DC50S, DC70S, DC150S, DC50SE, DC80 |
DC0031 - cube |
|
DC75SE |
DC0129 - cube |
Product sorting
List of products
- for ATMOS boiler DC50S, DC70S, DC150S, DC50SE, DC80, DC70GSX(chamber 800mm)
- for ATMOS boiler DC75SE
- for ATMOS boiler DC18S(before 2019), DC18SP(L), DC18GD, DC20GS, DC22SX, GS20, DC18GSE, DC22GSE, DC25GSE - old version, DC18GSP(L)
- for ATMOS boiler DC15GS and GS15
- pre kotol ATMOS DC22S, DC25S, DC30SX, DC25SP(L), DC22, DC25, DC25G, DC30SF
- for ATMOS boilers DC25GD, DC25GSP(L), DC25GSE (manufactured from 15.4.2012)
- pre kotol ATMOS DC75SE a DC50SE
- for ATMOS boilers DC32S, DC40SX, DC32SP(L), DC32, DC32G(S), DC35 Sweden (DC40G)
- pre kotol ATMOS DC40GS, DC50GSX, DC40GD, DC50GD, DC40G, GS40, DC40GSE, DC50GSE, GSX50
- for boiler ATMOS DC50S manufactured until 31.12.2009 and boiler DC50
- for ATMOS boiler DC70S, DC70GSX (chamber 800mm) and DC80
- for ATMOS boiler DC100 - complete
- pre kotol ATMOS DC70GSX (komora 600mm), DC50S, DC40SE, DC60GSX, GSX60, GSX70 (komora 600mm)
- for ATMOS boiler DC50S manufactured from 1.4.2018
- for ATMOS boiler DC18S manufactured from 1.1.2019
- for ATMOS boiler DC75SE with extension (cube)
- pre kotol ATMOS DC25GS, DC32GS(od 2010), DC30GD, DC30SE, DC30GSE, DC30GSP(L), GS25, GS32, DC35SF
- pre kotly ATMOS DC50S, DC70S, DC70GSX(komora 800mm), DC150S, DC50SE, DC80
