    Home / ATMOS solid fuel boilers / ATMOS spare parts / gasification nozzles / Nozzle DC0140

    Nozzle DC0140

    Code: DC0140
    Wholesale discount Wholesale discount 2
    Not rated Rating details
    Nozzle DC0140
    157 € / pcs 127,64 € excl. VAT Measure price:
    In stock at supplier

    - pre kotol ATMOS DC70GSX (komora 600mm), DC50S, DC40SE, DC60GSX, GSX60, GSX70 (komora 600mm)

    Detailed information

    Product detailed description

    - intended for boiler DC70GSX (chamber 600mm), DC50S, DC40SE, DC60GSX, GSX60, GSX70 (chamber 600mm)

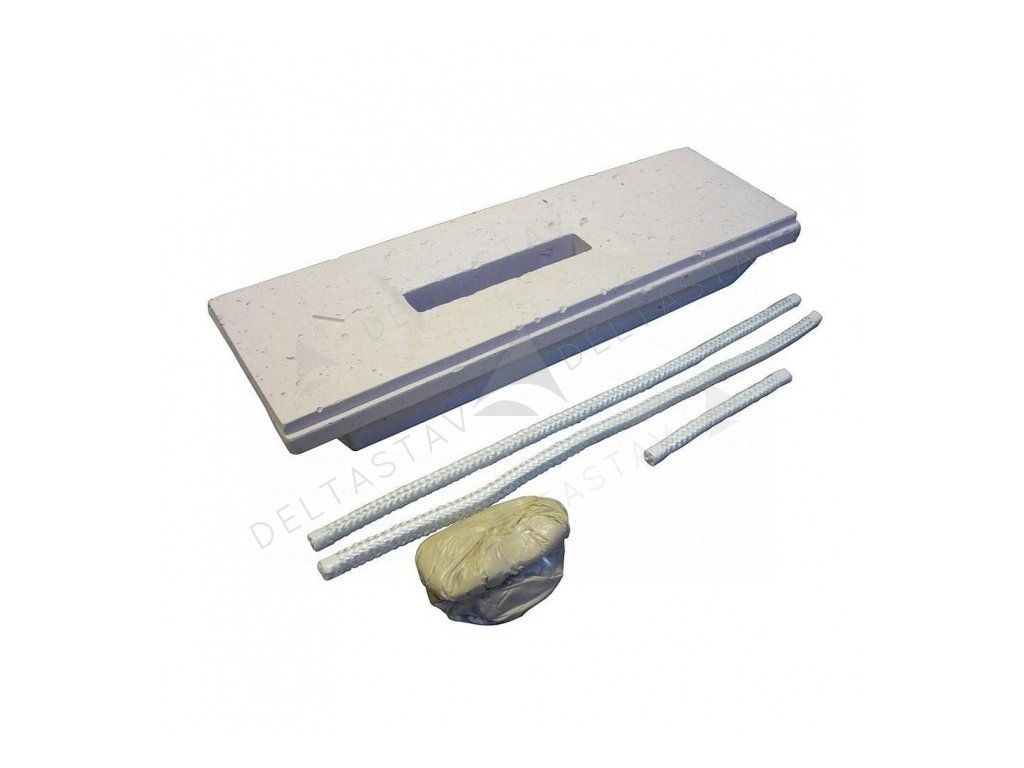

    Original ceramic nozzle ATMOS DC0140:

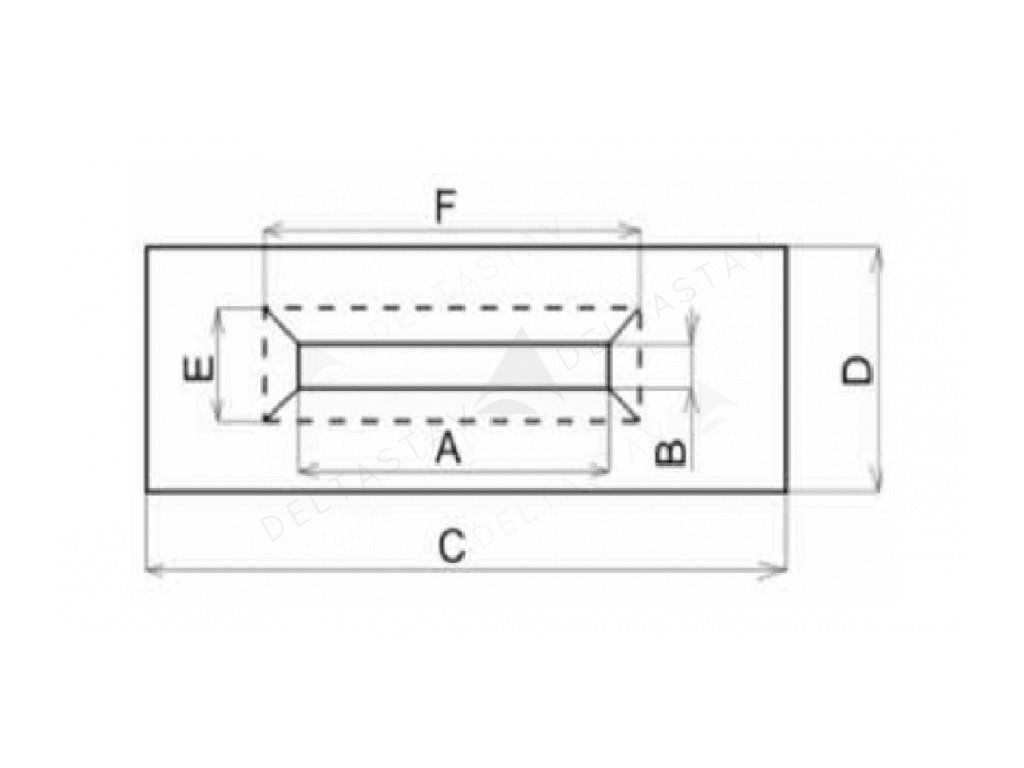

    • external dimensions: length 588 mm, width 200 mm
    • nozzle opening dimensions: length 280 mm, width 45 mm
    • for Atmos boilers: DC70GSX (chamber 600mm), DC50S manufactured from 1.1.2010 to 31.3.2018, DC40SE, DC60GSX, GSX60, GSX70 (chamber 600mm)
    • the package includes a gasket and 3 sealing strips for sealing the venting nozzle on the sides and in the front part of the boiler

    Warning!!! In the Atmos DC50S boiler, there is also an extension - a cube with dimensions 200 x 200mm - attached to the nozzle. This cube is not part of the nozzle package, but must be ordered separately here:
    Cube DC0031 - nozzle extension.

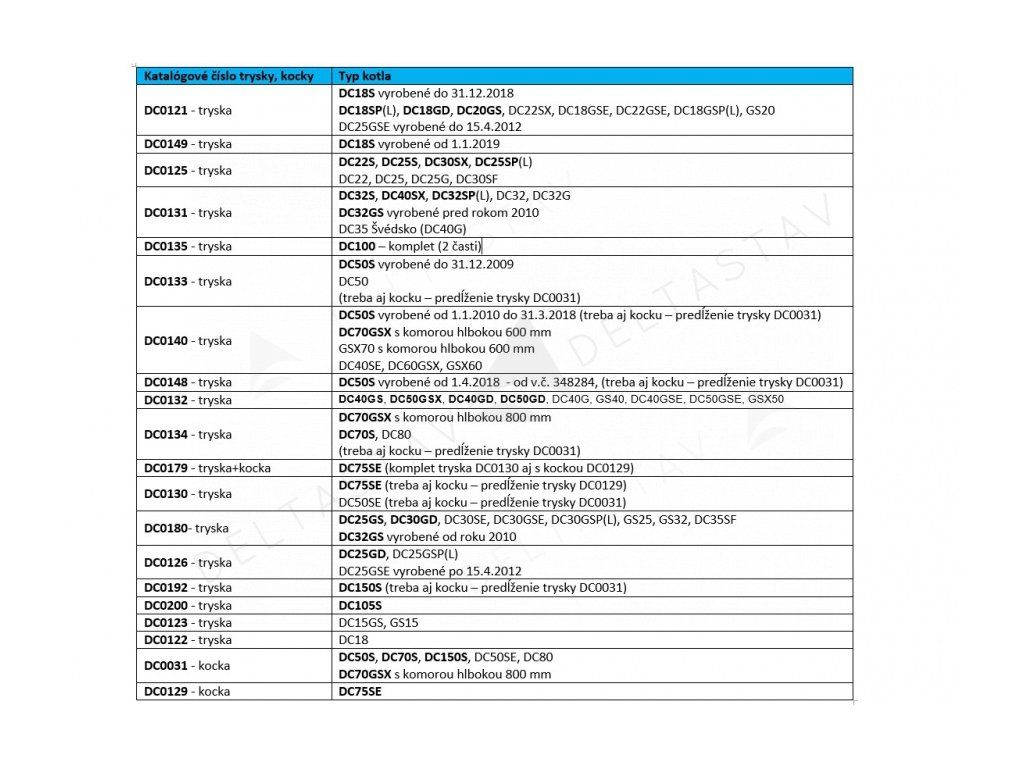

    Note:

    For boilers DC50S manufactured before 31.12.2009, the nozzle DC0133 is intended.

    For boilers DC50S manufactured from 1.4.2018, the nozzle DC0148 is intended.

    Additional parameters

    Category: gasification nozzles
    Warranty: 2 years
    Weight: 20.47 kg
