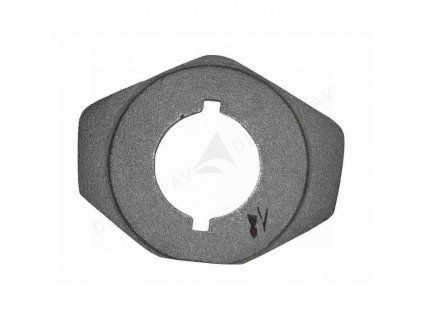

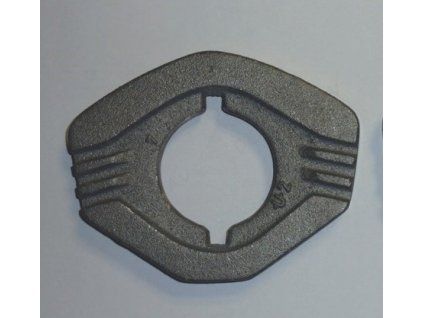

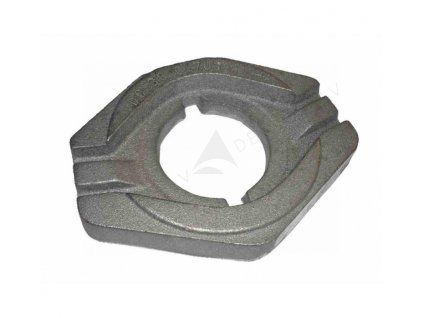

gasification grates
- required ND, which is not listed in our online store, can of course be ordered, but it will probably require a consultation
- for more technical information info@deltastav.sk
|
Type of boiler ATMOS |
Number of grates in the boiler |
B |
A – 24mm |
A – 20mm |
AO – 24mm |
|
C15S, KC16S |
3 |
2x C0010 |
1x C0008 |
|
|
|
C18, C18S – manufactured until 8/2016 |
7 |
New grate design:2x C0027 Old grate design: |
5x C0028

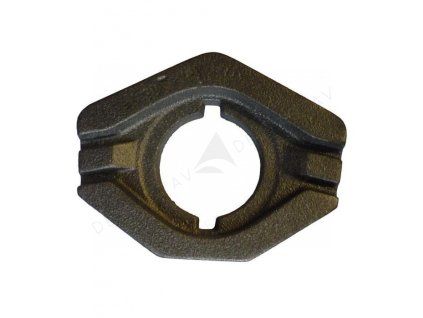

5x C0016 |
|
|
|
C18S, C18SP(L) manufactured from 9/2016 to 5/2017 |
5 |
2x C0010 |
1x C0008 |
|
2x C0083* |
|
C18S, C18SP(L) – manufactured from 6/2017 |
5 |
2x C0010 |
3x C0008 |
|
|
|
KC35S |
6 |
2x C0010 |
4x C0008 |
|
|
|
AC32SP(L), KC32SP(L) |
6 |
2x C0010 |
3x C0008 |
1x C0009 |
|
|
C25ST, C25SP(L) |
6 |
2x C0010 |
2x C0008 |
|
2x C0083* |
|
C20, C20S |
9 |
New grate design: Old grate design: |
6x C0028
6x C0016 |
1x C0029
1x C0019 |
|
|
AC35S |
9 |
2x C0010 |
6x C0008 |
1x C0009 |
|
|
C30, C30S |
10 |
New grate design: Old grate design: |
7x C0028
7x C0016 |
1x C0029
1x C0019 |
|
|
AC45S, KC45S |
10 |
2x C0010 |
7x C0008 |
1x C0009 |
|
|
C32ST |
8 |
2x C0010 |
3x C0008 |
|
3x C0083* |
|
C40, C40S, C50S |
11 |
2x C0010 |
8x C0008 |
1x C0009 |
|
|
DC14R |
4 |
4x C0066 |
|
|
|
|
DC24RS, DC30RS |
3 |
3x C0066 |
|
|
|
|
Boiler type ATMOS |
Number of grates in the boiler |
Grate tube length |
Grate tube |
Grate tube seal |
|
C15S, KC16S |
3 |
390 |
C0077 |
S0940 |
|
C18, C18S – produced until 8/2016 |
7 |
490 |
C0011 |
S0940 |
|
C18S – produced from 9/2016 |
5 |
490 |
C0011 |
S0940 |
|
KC35S, AC32SP(L), KC32SP(L) |
6 |
490 |
C0011 |
S0940 |
|
C25ST, C25SP(L) |
6 |
490 |
C0011 |
S0940 |
|
C20, C20S, AC35S |
9 |
490 |
C0011 |
S0940 |
|
C30, C30S, AC45S, KC45S |
10 |
590 |
C0013 |
S0940 |
|
C32ST |
8 |
590 |
C0013 |
S0940 |
|
C40, C40S |
11 |
690 |
C0014 |
S0940 |
|
C50S |
11 |
650 |
C0015 |
S0940 |
|
DC14R |
4 |
490 |
C0067 |
S0940 |
|
DC24RS, DC30RS |
3 |
490 |
C0068 |
S0940 |
|
Boiler type ATMOS |
Cube in front part |
Cube in rear part |
Ceramic side of grate |
|
C15S, C18, KC16S C18S – manufactured until 8/2016 (7 grates) |
C0021 |
C0021 |
|
|
C20, C20S, AC35S |
C0022 |
C0022 |
|
|
C30, C30S, AC45S, KC45S, C25ST, C25SP(L), KC35S, AC32SP(L), KC32SP(L), C80S |
C0023 |
C0023 |
|
|
C32ST |
C0030 |
C0030 |
|
|
C40, C40S, C50S |
C0024 |
C0023 |
|
|
AC25S, KC25S, C18SP(L), AC25SP(L), KC25SP(L) C18S – manufactured from 9/2016 (5 grates) |
C0026 |
C0026 |
|
|
DC14R |
DC0019 |
DC0019 |
DC0155(2xDC0154) – side of grate |
|
DC24RS, DC30RS |
DC0020 |
DC0019 |
DC0156 (left side), DC0157 (right side) |
