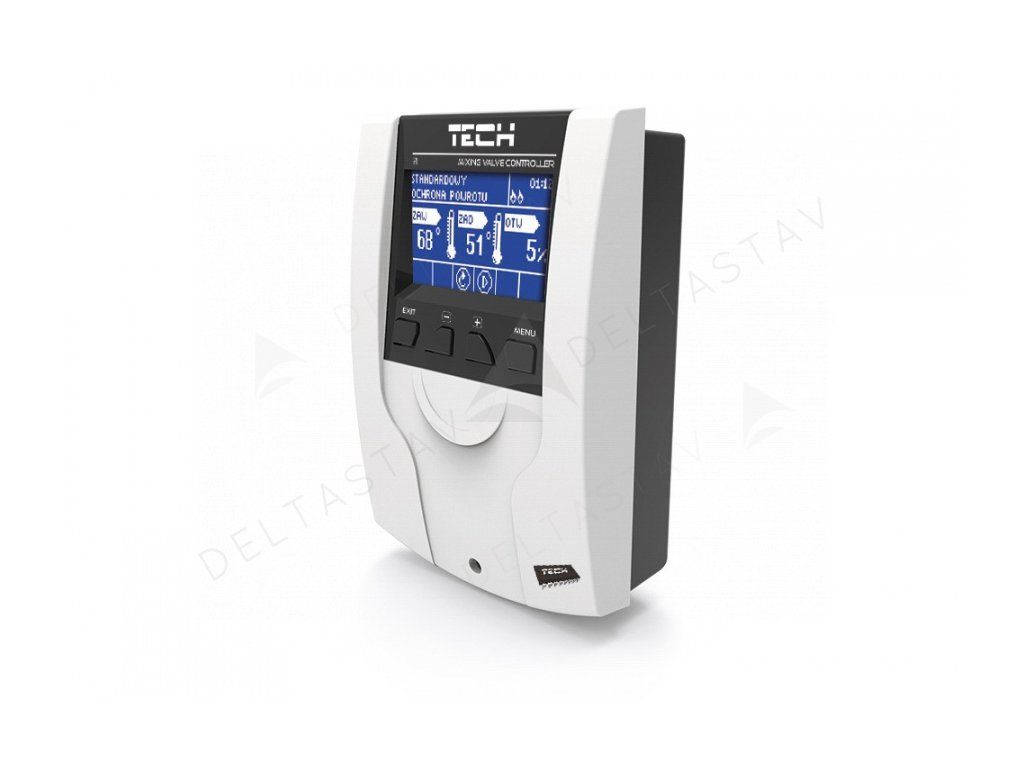

TECH EU-i-1 CWU controller for heating systems, for operating 1 valve actuator + DHW circulation
Code: WG.14.0068Product detailed description

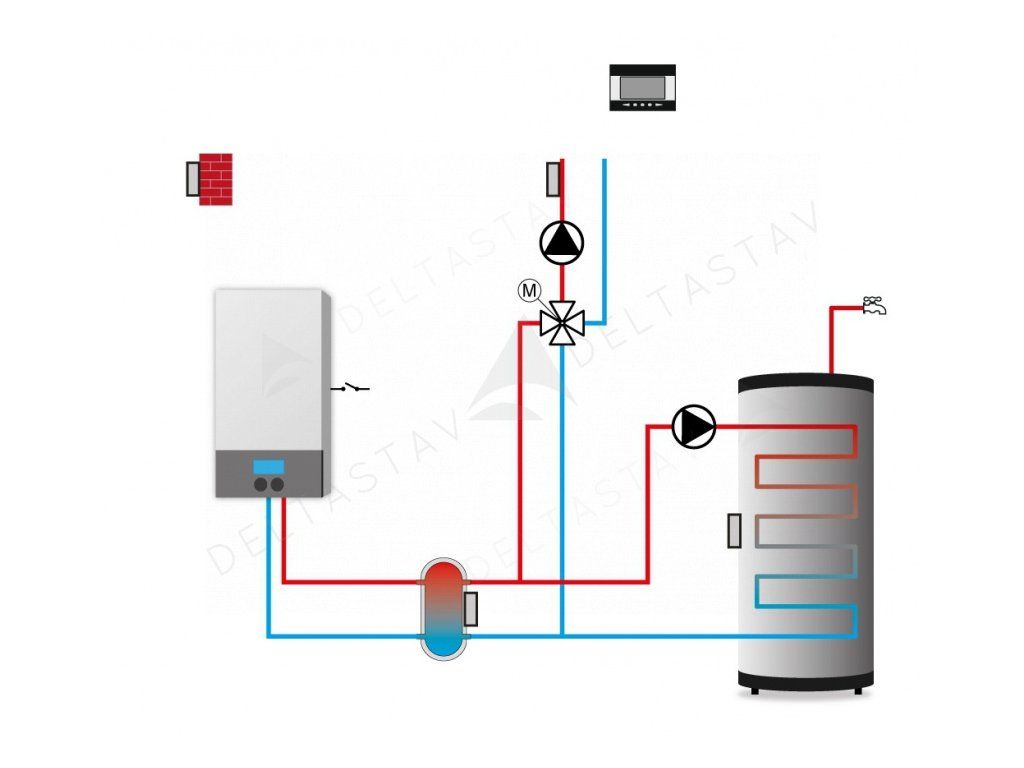

- control of 1x servo motor, 1x pump and DHW
Functions performed by the controller:
- continuous control of the mixing valve and its pump with options:
- constant temperature,
- equithermal control,
- correction of the valve temperature according to room temperature,
- weekly heating program
- differential control of the DHW pump
- no-voltage output for controlling the heat source
- cooperation with an apartment thermostat with standard communication (two-position – on/off) with the possibility to reduce the valve temperature or to close it
(e.g. EU-294 v1 , EU-295 v3 or EU-292 v3 ) - cooperation with a room controller equipped with RS communication
- possibility to connect internet module EU–505 or WiFi RS, which allow remote control of functions and monitoring of parameters via the internet - eModul app
- possibility to connect two additional modules for controlling mixing valves and their pumps (e.g.: EU-i-1m or EU-i-1)
- boiler protection
- possibility to update the program via USB input

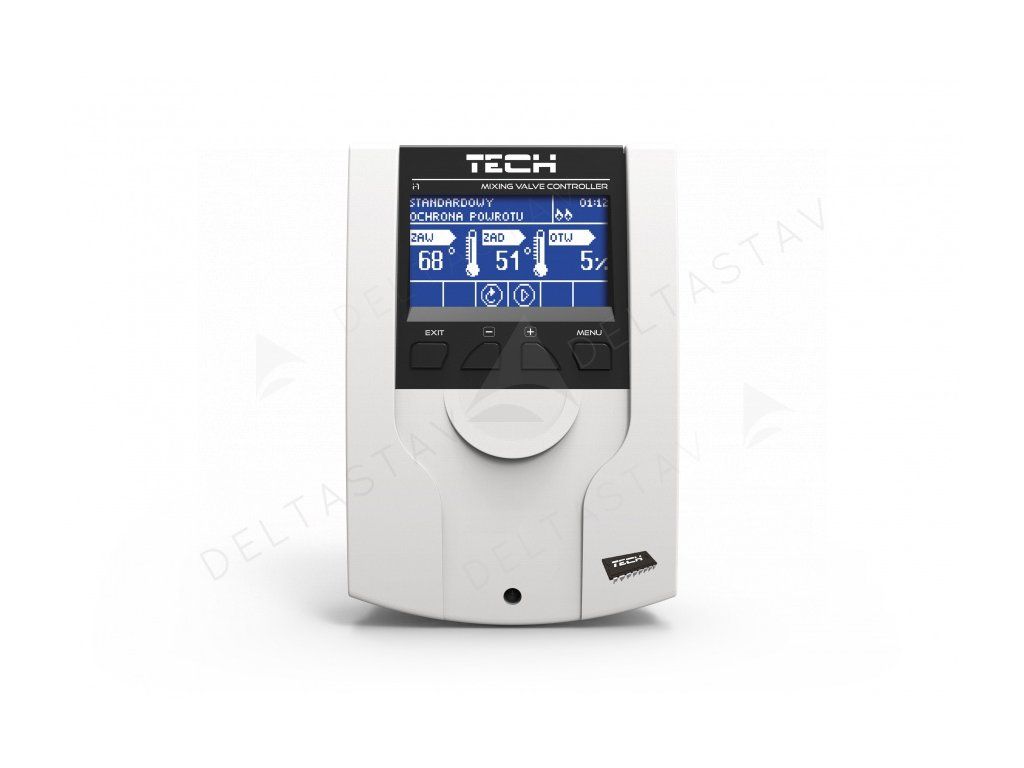

- LCD display

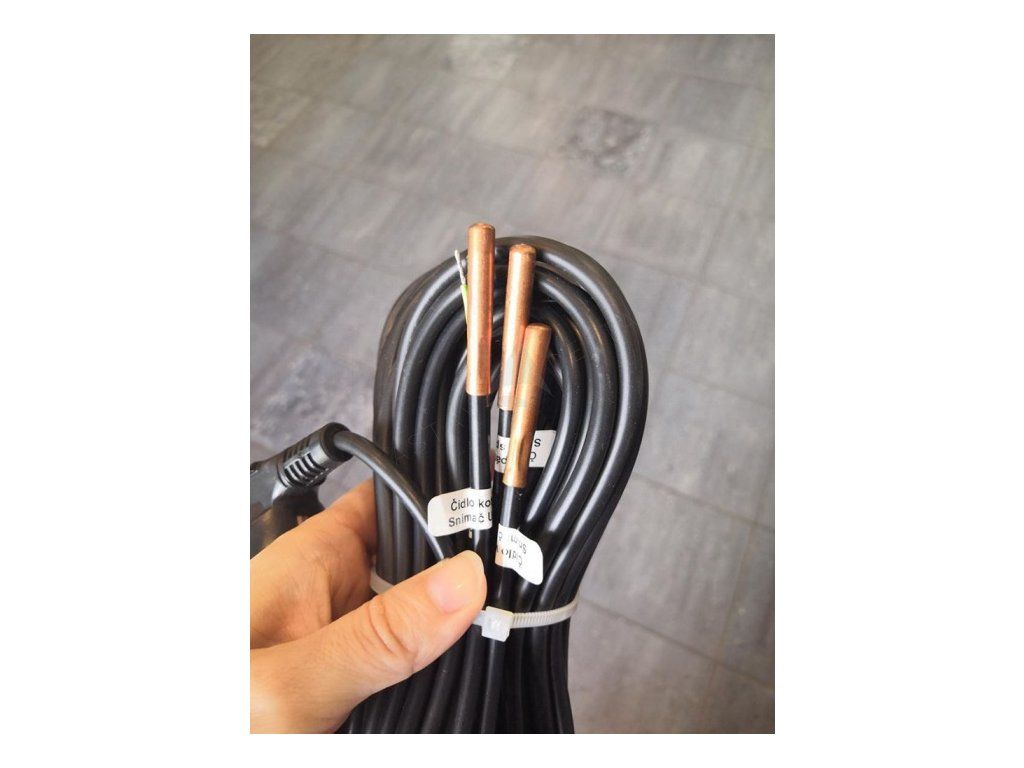

- boiler temperature sensor
- valve temperature sensor
- return temperature sensor
- DHW temperature sensor
- equithermal sensor (external temperature)
- housing suitable for wall mounting
Product parameters:
| Specification | Value |
|---|---|
| Power supply | 230V +/- 10% /50Hz V |
| Maximum energy consumption of the controller | 4 W |
| Ambient temperature | 5÷50 °C |
| Temperature resistance of the sensor | -25÷95 °C |
| Fuse | 1,6 A |
| Temperature setting range | 8÷90 °C |
| Load on outputs | 0,5 A |
Additional parameters
| Category: | TECH |
|---|---|
| Warranty: | 2 years |
| Weight: | 1 kg |
