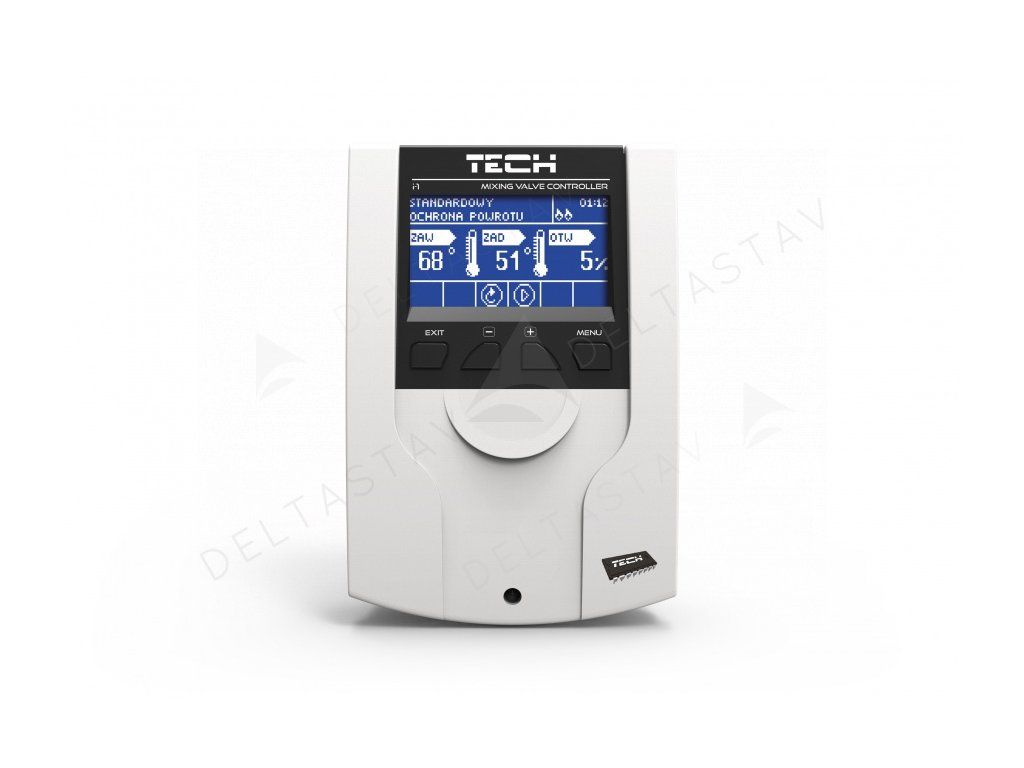

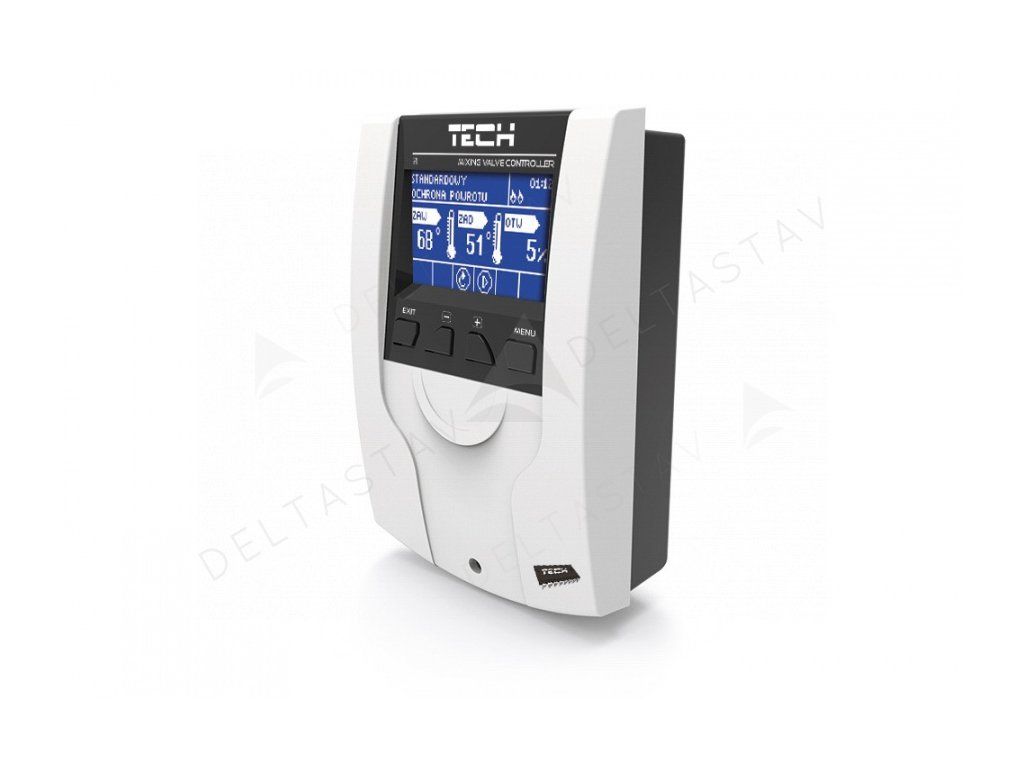

TECH EU-i-1 controller for heating systems, for operating 1 valve actuator
Code: WG.14.0067Product detailed description
- smooth control of the mixing valve and its pump with the following options:
constant temperature, equithermal control, correction of the valve temperature according to room temperature, weekly heating program - heating / cooling function
- cooperation with a room thermostat with standard communication with the option to reduce the valve temperature or close it
(e.g. EU-294 v1 , EU-295 v3 or EU-292 v3 ) - cooperation with a room controller equipped with RS communication
- possibility to connect internet module EU–505 or WiFi RS – eModul app
- possibility to connect two additional modules for controlling mixing valves and their pumps
(e.g.: EU-i-1m or another EU-i-1) - boiler protection
- possibility to update the program via USB input.
- LCD display

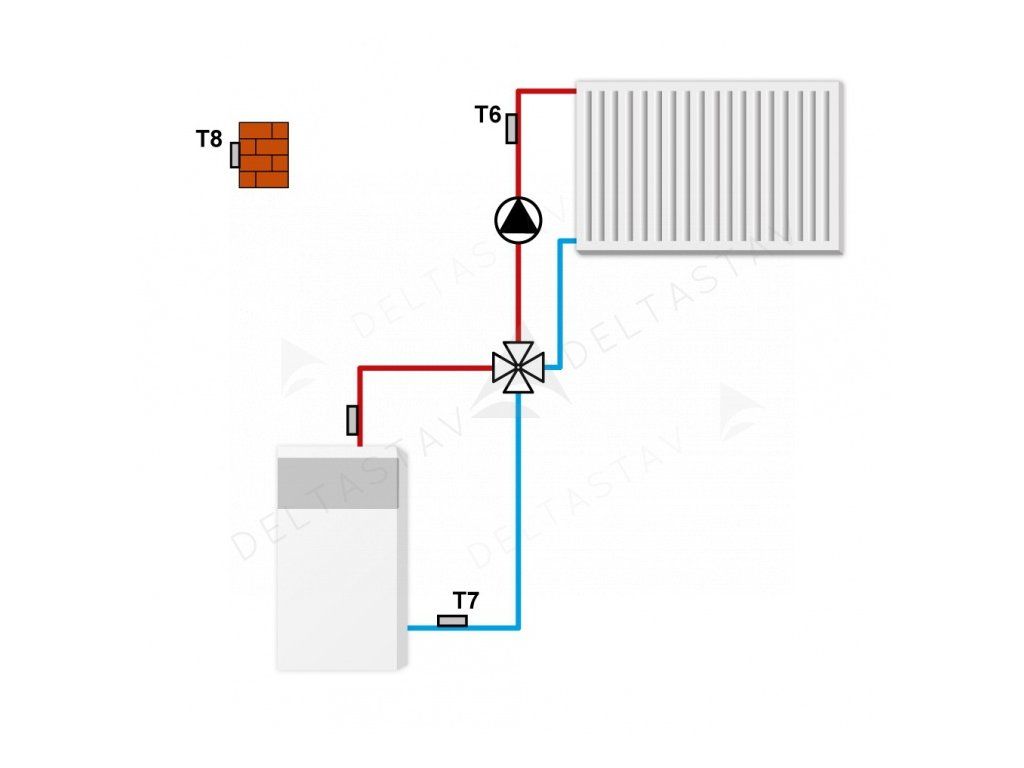

- boiler temperature sensor
- valve temperature sensor
- return temperature sensor
- equithermal sensor (external temperature)
- housing suitable for wall mounting
Product parameters:
| Specification | Value |
|---|---|
| Power supply | 230V +/- 10% /50Hz |
| Maximum energy consumption of the controller | 4 W |
| Ambient temperature | 10÷50 °C |
| Temperature resistance of the sensor | -30÷99 °C |
| Fuse | 1,6 A |
| Temperature setting range | 8÷90 °C |
| Load on the valve output | 0,5 A |
Additional parameters
| Category: | TECH |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.8 kg |
