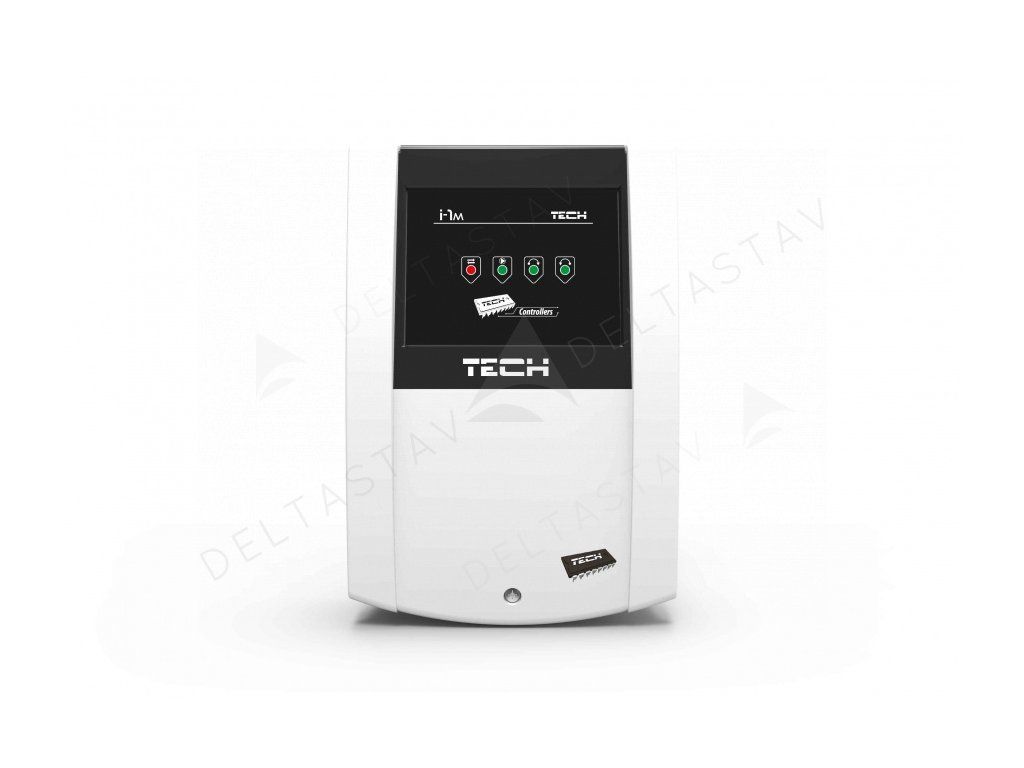

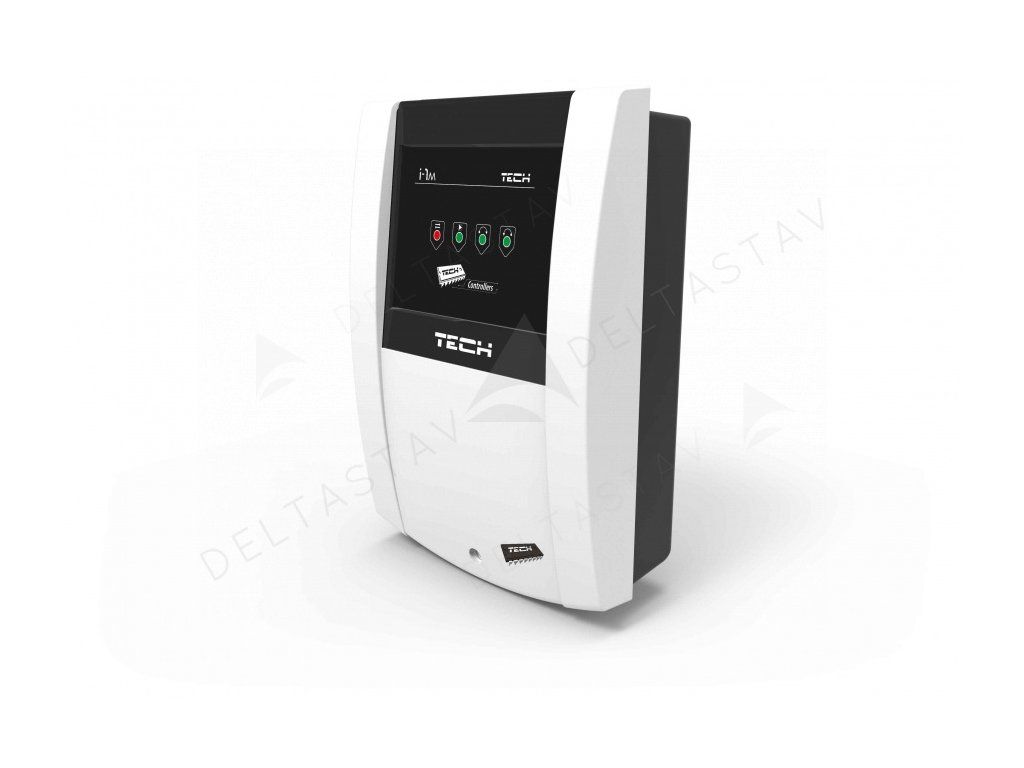

TECH EU-i-1m add-on module for main controller for controlling mixing valve and its pump
Code: WG.05.0030Product detailed description

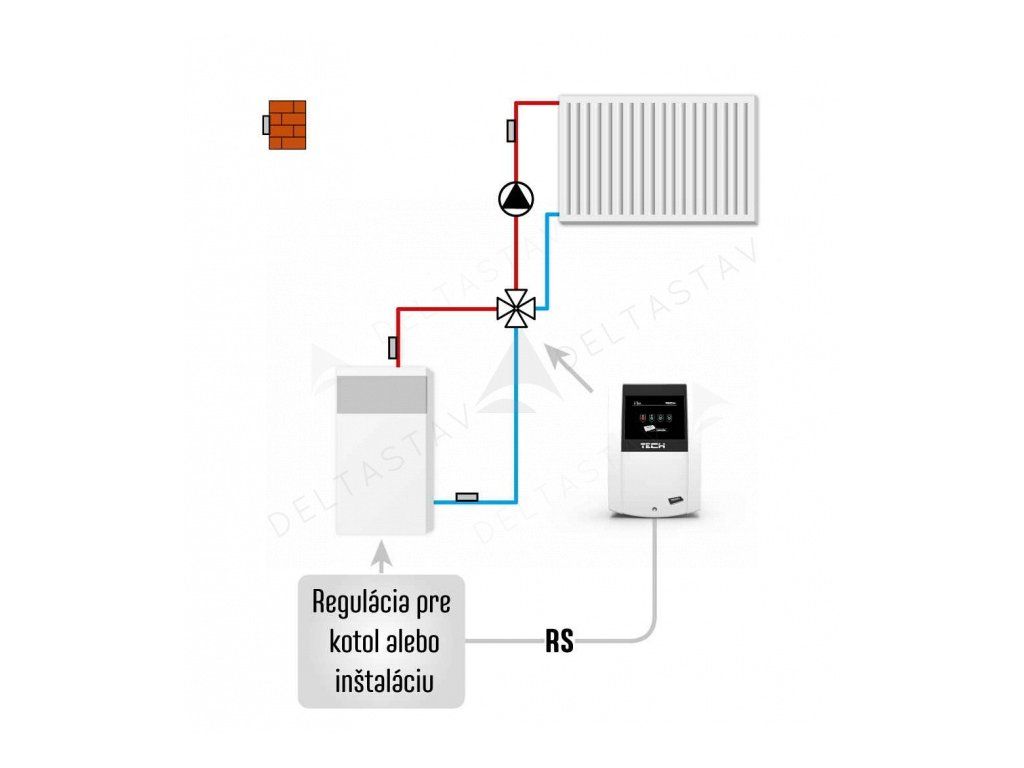

- smooth regulation of the mixing valve and its pump with options: constant temperature, equithermal regulation, correction of the valve temperature according to room temperature, weekly heating program
- cooperation with an apartment thermostat with standard communication two-position – on/off with the option to reduce the valve temperature or to close it
(e.g. EU-294 v1, EU-295 v3 or EU-292 v3)
- heat source temperature sensor
- valve temperature sensor
- return temperature sensor
- equithermal sensor (external temperature)
- housing suitable for wall mounting
Product parameters:
| Specification | Value |
|---|---|
| Power supply | 230V +/- 10% /50Hz |
| Maximum energy consumption of the regulator | 2 W |
| Ambient temperature | 10÷50 °C |
| Temperature resistance of the sensor | -30÷99 °C |
| Fuse | 1.6 A |
| Temperature setting range | 20÷55 °C |
| Load on the valve output | 1 A |
Additional parameters
| Category: | TECH |
|---|---|
| Warranty: | 2 years |
| Weight: | 1 kg |
