Flat-plate solar collector AlCu with structured glass

Code: 144702

Sale Wholesale discount Wholesale discount 2

Not rated Rating details

Brand: HEWALEX

–20 %

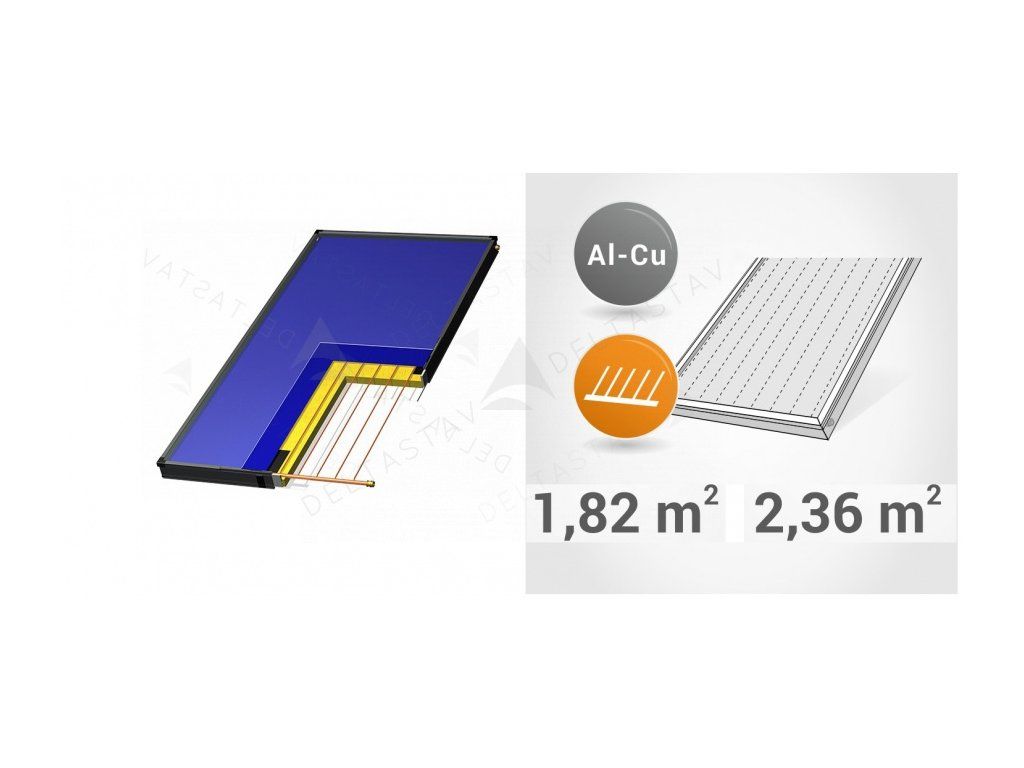

Flat-plate solar collector AlCu with structured glass

from 410,16 € –20 % from 328,12 € / pcs from 266,76 € excl. VAT

Choose variant

- type KS2100F TLP AC 1.82 m² or KS2600F TLP AC 2.36 m²
(optical efficiency 75.3%)

Detailed information

Show all related products

Type: Flat-plate solar collector AlCu with structured glass KS2100F TLP AC 1,82 m²

In stock (10 pcs) | 144702

410,16 €

328,12 € / pcs

266,76 € excl. VAT

Type: Flat-plate solar collector AlCu with structured glass KS2600F TLP AC 2,36 m²

In stock (11 pcs) | 149002

483,98 €

387,18 € / pcs

314,78 € excl. VAT

Product detailed description

- model KS2100F TLP AC 1.82 m² and KS2600F TLP AC 2.36 m²

The solar collector was designed to win you over with an attractive retail price by using aluminum in the absorber plate instead of copper sheet.

The increased thickness of the aluminum absorber, 0.40 mm compared to the standard thickness of 0.20 mm for copper absorbers, fully compensates for the lower thermal conductivity of aluminum compared to copper.

Copper piping allows the use of standard components from the equipment, for example made of brass or copper.

The absorber is made of aluminum and the piping is made of copper using the latest laser welding technology.

All absorbers are produced using PVD technology (plasma deposition of the absorber layer by evaporation in a vacuum). Joints are welded using laser technology. The entire production is ecological and the manufacturer guarantees that the materials used are environmentally friendly. The solar glass is of the highest quality U1 with a radiation transmittance of up to 91.6%, a load capacity of up to 100 kg/m², and can withstand hailstones with a diameter of up to 25 mm at a perpendicular impact.

KS2100F TLP AC	KS2600F TLP AC
total collector area: 2.06 m² overall dimensions (mm): 2018x1037x89 absorber surface area: 1.82 m² weight: 37 kg maximum achievable temperature: 201.2 °C maximum thermal output: 1550 W optical efficiency according to ISO09806: 75.3% fluid capacity: 0.9 l	total collector area: 2.62 m² overall dimensions (mm): 2018x1314x89 absorber surface area: 2.36 m² weight: 43 kg maximum achievable temperature: 201.2 °C maximum thermal output: 1972 W optical efficiency according to ISO09806: 75.3% fluid capacity: 1.1 l

Why choose Hewalex solar collectors?
Top quality thanks to over 30 years of experience. High efficiency confirmed by Solar Keymark. Especially favorable "price / performance" indicators. Favorable conditions of 10-year warranty from the manufacturer. Heat from solar energy - the cheapest and easily accessible.

Components for assembling the entire solar system:
Pump unit and regulation
Solar storage tank
Collector connection accessories
THERMSOL ECO antifreeze mixture
Solar expansion vessel
Manual pump for system filling
Collector mounting on the roof

Additional parameters

Category:	flat plate collectors
Warranty:	10 rokov

Sale

–29 %

EUROSTER 813 - solar controller

88,57 € excl. VAT

108,94 €

Regulates the solar system, monitors the temperature of the solar collector and up to two storage tanks according to the selected operating mode.

312033

Wholesale discount Wholesale discount 2

–20 %

Stainless steel solar twin pipe, corrugated pipe TWIN

from 184 € excl. VAT

from 226,32 €

DN16, L= 10m, 15m, 20m, 30m or 50 m
DN20 L= 15 m or 20 m
/ with cable and EPDM HT insulation of 13 mm thickness

602V1610

Show all alternative products

Product rating

Be the first who will post an article to this item!

Name

E-mail

Comment

How would you rate this product? Choose 1 to 5 stars, where 1 is the worst and 5 is the best rating.

By submitting a review, you agree to the privacy policy

Discussion

Miloš 28.10.2022 22:13

Dobrý deň,mám 480 l akumulačnú nádrž s výmeníkom,z ktorej je vyhrievaný 160 l bojler TUV. Koľko kolektorov KS2100F TLP AC doporučujete inštalovať na optimálne pracovanie systému. Ďakujem

Cabúk 23.03.2022 08:51

Dobrý deň, Mám 500l akumulačnú nádrž s vnoreným 140l bolerom. Koľko kolektorov KS2100F TLP AC je potrebných dať na strechu aby to bolo akurát ? Ďakujem Cabuk

Deltastav.sk 23.03.2022 08:51

Dobrý deň, doporučujeme buď 5 kolektorov s absorbčnou plochou 1,82 m2 alebo 4 ks s plochou 2,36m2. Vieme Vám vypracovať cenovú ponuku na dané kolektory spolu s ostatnými komponentami pre celý systém. Pekný deň.

Soňa 23.03.2022 08:51

Dobrý deň, uvádzate, že solárny systém obsahuje aj rozvody z medi a absorbér kolektora je hliníkový. Je možné uvedené materiály v kvapalinovom okruhu jednoducho kombinovať? Nebudú vznikať problémy s galvanickou koróziou? Dakujem

Deltastav.sk 23.03.2022 08:51

Dobrý deň, Hliníkový absorbér je privarený na medené rozvody laserom z vonkajšej strany, t.j. nie je priamo v kvapalinovom okruhu. Kvapalina prúdi len v medených rozvodoch a nedochádza k jej kontaktu s hliníkovým absorbérom.

Jozef 23.03.2022 08:50

Dobrý deň,mám 1000l akumulačnú nádobu s bojlerom 200l. Koľko by som potreboval kolektorov daľ nq strechu ? Ďakujem..

Deltastav.sk 23.03.2022 08:51

Dobrý deň, v prípade, že Vaša nádrž má aj výmenník ( ako tento náš typ https://www.deltastav.sk/solarny-zasobnik-s-jednym-vymennikom-a-zasobnikom-tuv-vratane-izolacie/ ) potrebujete pre ohrev až 8 kolektorov. V prípade, že nádrž je len vstavaná bez výmenníka, nie je vhodná pre solárny ohrev. Najjednoduchšie riešenie pre Vás by bolo zabezpečiť si celú solárnu zostavu, napr. typ https://www.deltastav.sk/solarna-zostava-c-viii-s/ prípadne prepojiť ju aj Vašou nádržou, čím získate efektívny ohrev TUV.
