EUROSTER 813 - solar controller
Code: 312033Related products
Product detailed description
Euroster 813 Solar, solar controller
The basic use is the preparation of hot water in households.
It controls the solar system, monitors the temperature of the solar collector and up to two storage tanks according to the selected operating mode.

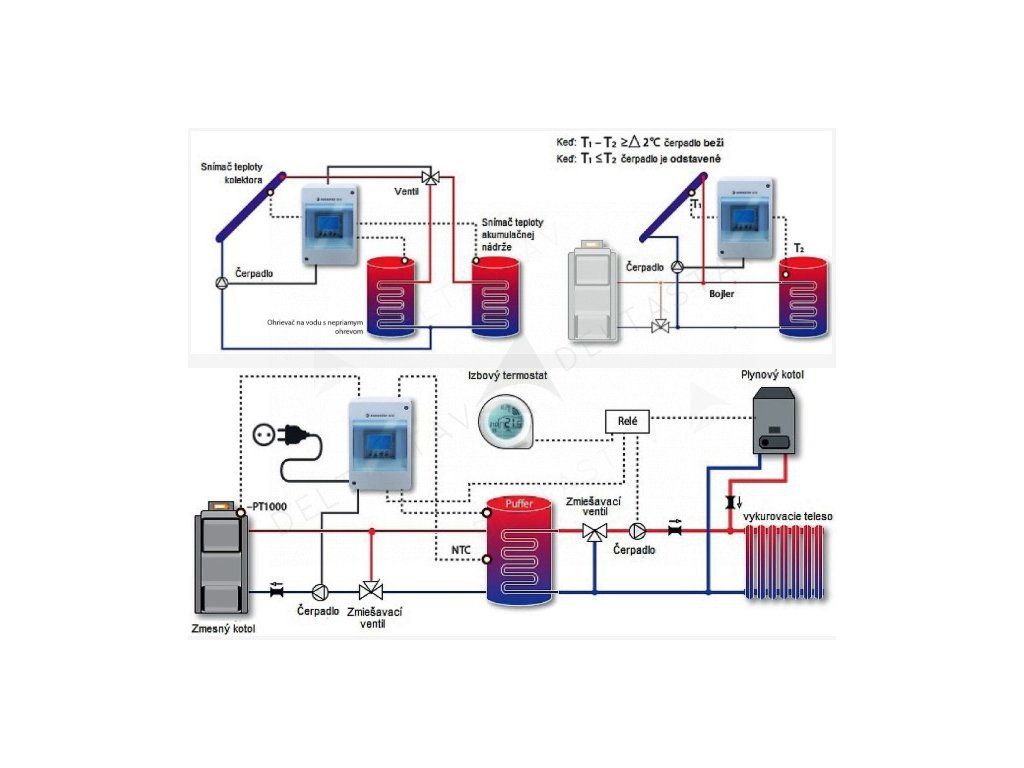

The controller can operate in one of four modes (see User Manual). The list of available modes displayed depends on the connection of the sensors. A system diagram for each operating mode is displayed on the screen during operation.

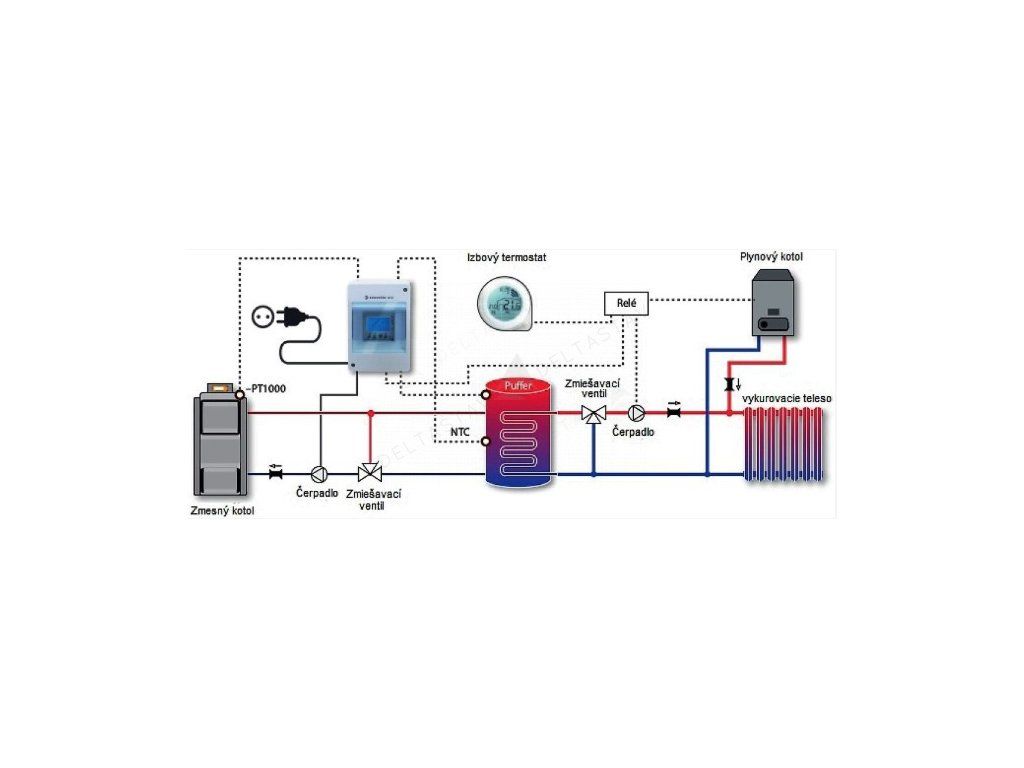

The device is capable of controlling an auxiliary heat source (e.g. boiler or electric heating element) providing additional heating when the energy obtained from the solar collector is insufficient. You can program time intervals during which the auxiliary heat source is switched on.

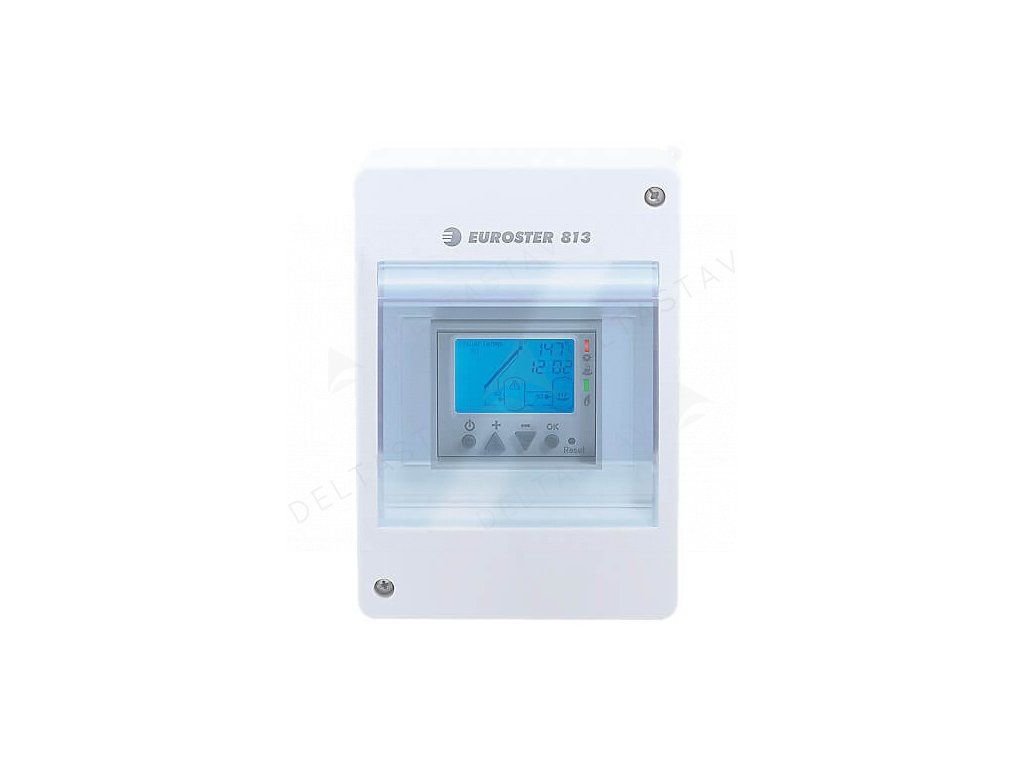

Euroster 813 is a controller intended for mounting on a DIN 35 rail. It is recommended to install the controller in a protective housing (included in the package).
Technical data:
- intended for controlling devices: solar collector pump, auxiliary heat source
- power supply: 230V 50 Hz
- load: 7A 230V 50Hz (output A), 16A 230V 50Hz (output B)
- energy consumption: 0.8 W
- output: relay 230V 50Hz
- temperature measurement range: -40 °C ... +250 °C (solar collector), -10 °C ... +110 °C (tanks)
- temperature regulation range in the tank: +10 °C ... +100 °C
- temperature regulation accuracy: 1 °C
- temperature measurement accuracy: +/- 0.5 °C
- hysteresis: 1 °C ... 20 °C
- status display: backlit LCD display, LED diodes
- operating temperature: 0 °C ... +45 °C
- storage temperature: -20 °C ... +55 °C
- protection class: IP 30
- color: white
- mounting: on the wall
- weight: 161 g without wall box, 293 g with wall box
- dimensions (W / H / D) mm: 52.5 / 85 / 61 (without box)
Package contents:
- Euroster 813 controller
- 3 temperature sensors (1x Pt1000, 2x NTC10k)
- manual
- mounting bracket
- wall box
Additional parameters
| Category: | Solar systems |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.3 kg |
