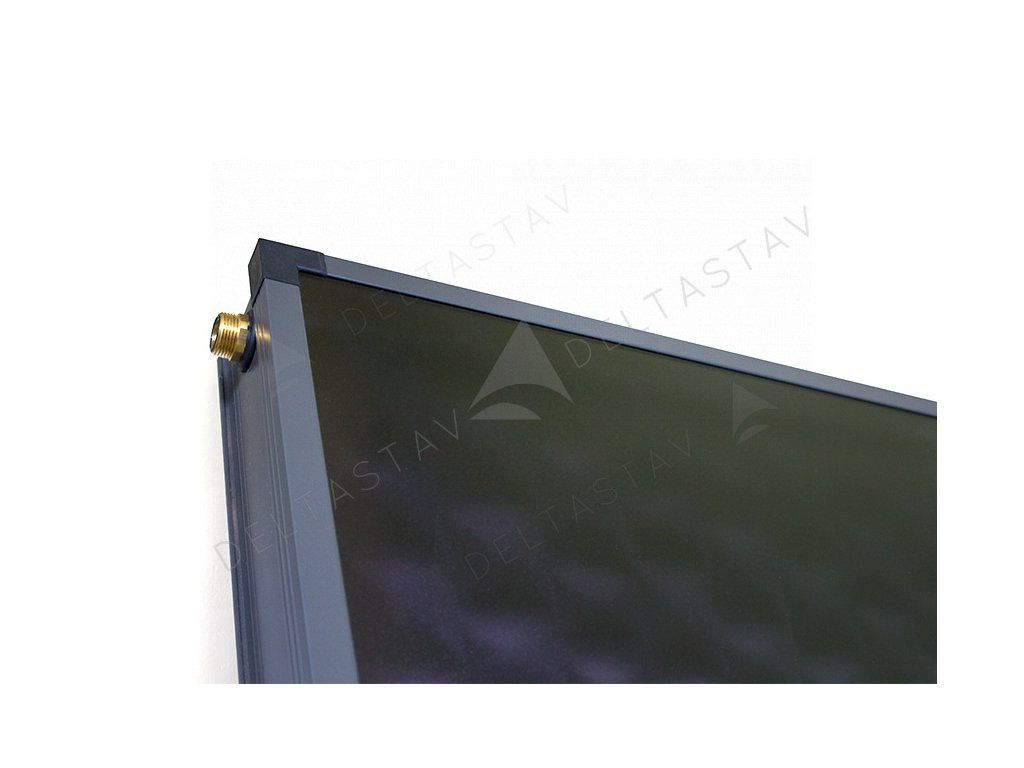

Flat-plate solar collector AlCu with structured anti-reflective glass

Code: 144802

Sale Wholesale discount Wholesale discount 2

Not rated Rating details

Brand: HEWALEX

–20 %

Flat-plate solar collector AlCu with structured anti-reflective glass

from 461,78 € –20 % from 369,42 € / pcs from 300,34 € excl. VAT

Choose variant

- type KS2100F TLP ACR 1.82 m² or KS2600F TLP ACR 2.36 m²
(high optical efficiency 79.1%)

Detailed information

Show all related products

Type: Flat-plate solar collector AlCu with structured anti-reflective glass KS2100F TLP ACR 1,82 m²

In stock (4 pcs) | 144802

461,78 €

369,42 € / pcs

300,34 € excl. VAT

Type: Flat-plate solar collector AlCu with structured anti-reflective glass KS2600F TLP ACR 2,36 m²

In stock (10 pcs) | 149102

570,36 €

456,29 € / pcs

370,97 € excl. VAT

Product detailed description

- model KS2100F TLP ACR 1.82 m² and KS2600F TLP ACR 2.36 m²

The latest generation of collectors ensures maximum efficiency thanks to the use of anti-reflective glass.

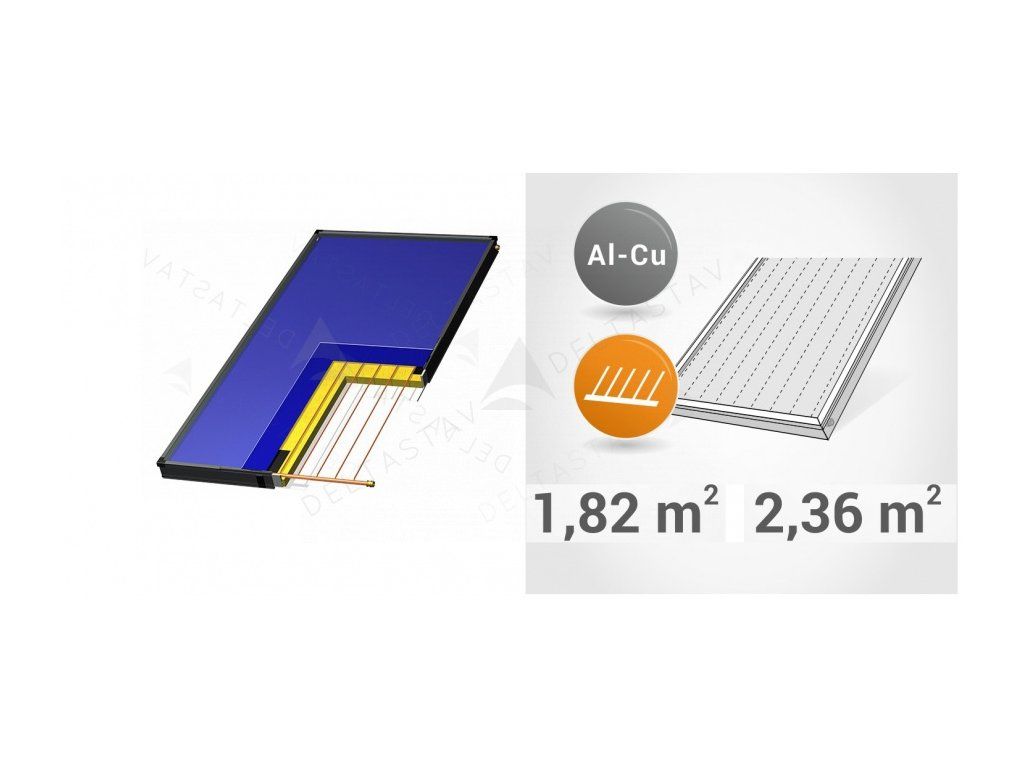

The absorber is made from high-quality materials - aluminium and copper (Al-Cu) using laser welding technology.

High efficiency is also achieved by using highly selective absorption (PVD) and complete thermal insulation of the cover.

All absorbers are manufactured using PVD technology (plasma deposition of the absorption layer by evaporation in a vacuum). Joints are welded using laser technology. The entire production is ecological and the manufacturer guarantees that the materials used are environmentally friendly. The solar glass is of the highest quality U1 with a radiation transmittance of up to 91.6%, a load capacity of up to 100 kg/m² and can withstand hailstones with a diameter of up to 25 mm at a perpendicular impact.

KS2100F TLP ACR	KS2600F TLP ACR
total collector area: 2.06 m² overall dimensions (mm): 2018x1037x89 absorber surface area: 1.82 m² weight: 37 kg maximum achievable temperature: 196.6 °C maximum thermal power: 1630 W optical efficiency according to ISO09806: 79.1% fluid capacity: 0.9 l	total collector area: 2.62 m² overall dimensions (mm): 2018x1314x89 absorber surface area: 2.36 m² weight: 43 kg maximum achievable temperature: 196.6 °C maximum thermal power: 2073 W optical efficiency according to ISO09806: 79.1% fluid capacity: 1.1 l

Why choose Hewalex solar collectors?
Top quality thanks to over 30 years of experience. High efficiency confirmed by Solar Keymark. Especially favorable "price / performance" indicators. Favorable conditions of 10-year warranty from the manufacturer. Heat from solar energy - the cheapest and easiest to obtain.

Components for assembling the entire solar system:
Pump unit and control
Solar storage tank
Collector connection accessories
THERMSOL ECO antifreeze mixture
Solar expansion vessel
Manual pump for system filling
Collector mounting on the roof

Additional parameters

Category:	flat plate collectors
Warranty:	10 rokov
