Control unit ROTOTEMP FX3
Code: F21162Related products
Type: Control unit ROTOTEMP FX3 DN15, kvs= 3
Temporarily unavailable
| F21162
266,49 €
213,19 €
/ pcs
173,33 €
excl. VAT
Type: Control unit ROTOTEMP FX3 DN20, kvs= 7
Temporarily unavailable
| F21163
270,80 €
216,64 €
/ pcs
176,13 €
excl. VAT
Type: Control unit ROTOTEMP FX3 DN25, kvs= 11
Temporarily unavailable
| F21164
283,05 €
226,44 €
/ pcs
184,10 €
excl. VAT
Type: Control unit ROTOTEMP FX3 DN32, kvs= 15
Temporarily unavailable
| F21165
308,71 €
246,96 €
/ pcs
200,78 €
excl. VAT
Product detailed description
- for maintaining a constant flow temperature- with servo drive and three-way valve type ROTOMIX F3 DN15- DN32

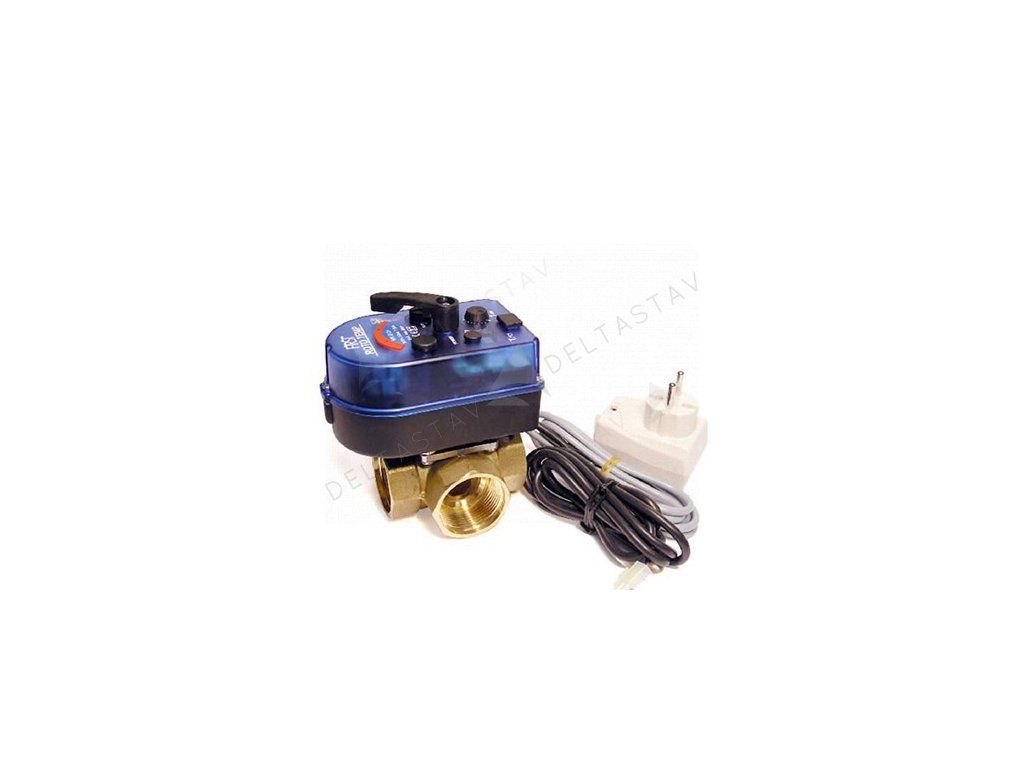

Part of the delivery includes:
- adjustable control unit ROTOTEMP C
- adapter for 24V
- three-way valve ROTOMIX F3
- power cable
- temperature probe with pipe mounting

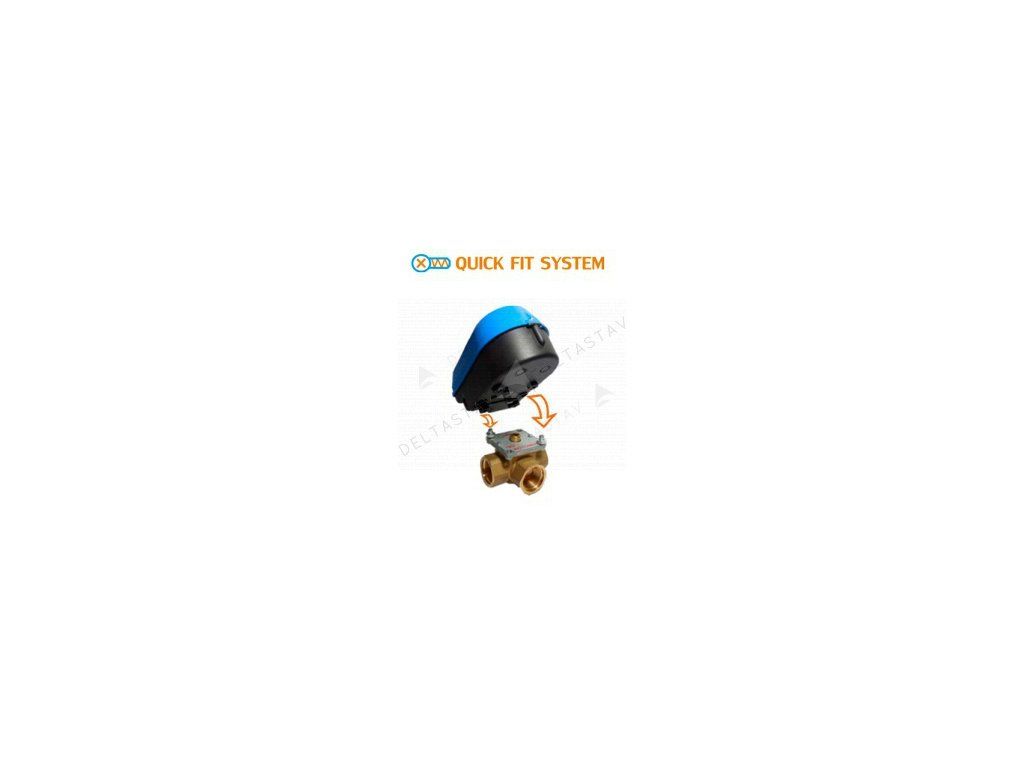

- quick and easy installation on the mixing valve without screwing
using the QUICK FIT SYSTEM fastener
Technical data:
- voltage 230V 50Hz, with adapter 24V 50Hz
- setting the desired temperature using a rotary button, displayed on the screen
- rotation time: 105s / 90°
- possibility to change the direction of the servo rotation clockwise and counterclockwise
- control option: manually / automatically
- setting different working temperature ranges (0°C..100°C, 60°C...85°C, 20°C....70°C, 25°C...45°C)
- max. temperature measurement range 135°C
- temperature of heating medium: + 2°C to + 110°C
- ambient temperature: +5°C to + 55°C
- max. torque: 8 Nm
- setting proportional valve opening according to the type of installation material Xp (position no. 6 in the front panel description)
ROTOTEMP FX3 is a combined constant temperature controller, drive and 3-way mixing valve ROTOMIX F3.
The controller has a fixed rotation angle of 90° and the possibility of manual control. The mixing valves are available in sizes DN 15 to DN 32.

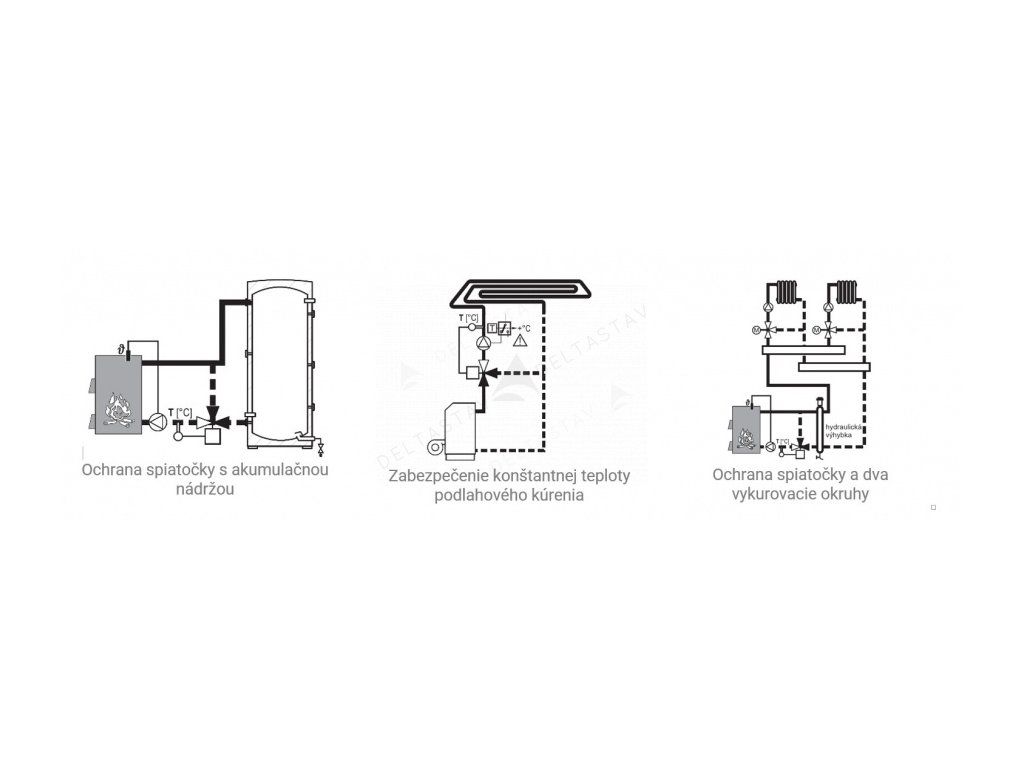

It is designed to maintain a constant temperature in the boiler heating circuit (protection against condensation). Suitable for use in floor heating, industrial processes, thermal accumulators.
Suitable for use in domestic hot water systems or swimming pools (private systems, spas, public pools).
Additional parameters
| Category: | control units |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.deltastav.sk/kontrolna-jednotka-constantemp-fx7/ |
