Control unit ROTOTEMP C
Code: F21146Related products
Product detailed description

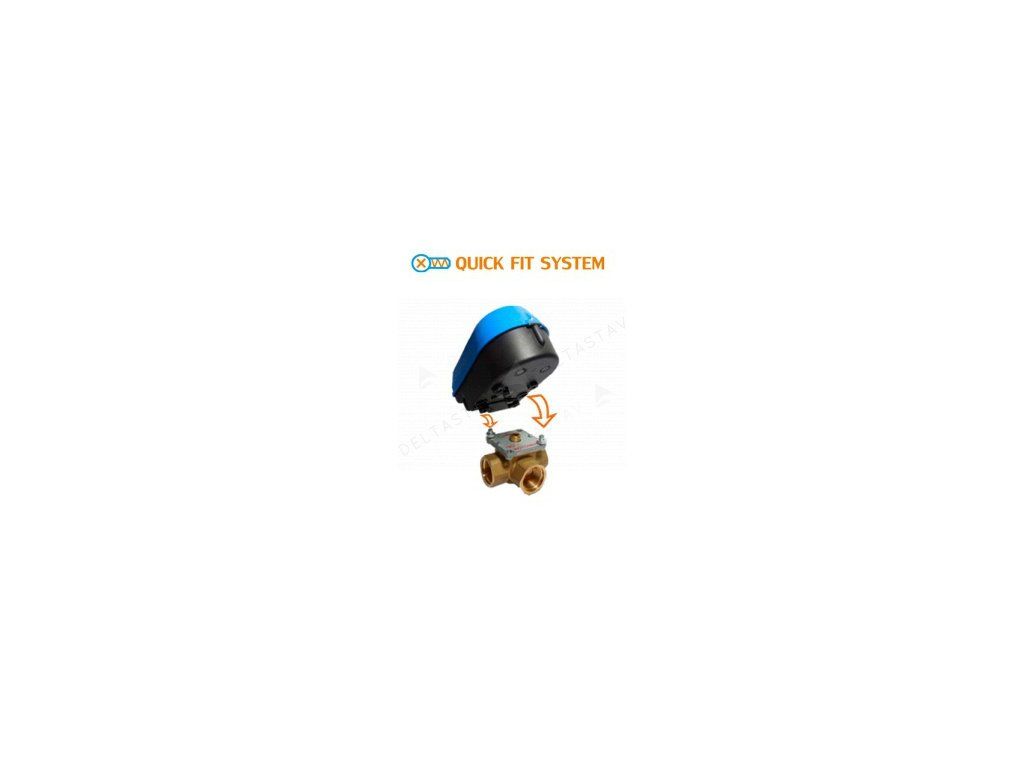

- control unit for maintaining constant flow temperature, suitable for three- and four-way valves of type ROTOMIX F3,F4
Part of the delivery is:

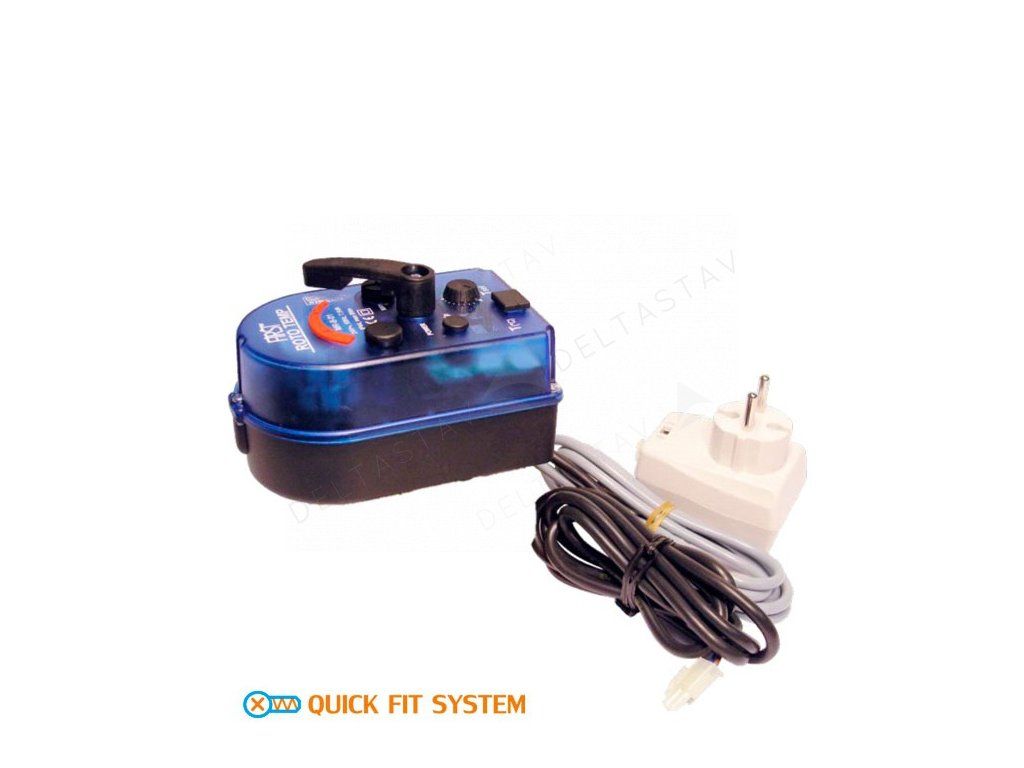

- adjustable control unit ROTOTEMP
- adapter for 24V
- power cable
- temperature probe with pipe mounting
Technical data:
- voltage 230V 50Hz, with adapter 24V 50Hz
- setting the desired temperature by rotating button, displayed on the display
- rotation time: 105s / 90°
- possibility to change the direction of the servo rotation clockwise and counterclockwise
- control option: manually/automatically
- setting different working temperature range (0°C..100°C, 60°C...85°C, 20°C....70°C, 25°C...45°C)
- max. temperature measurement range 135°C
- temperature of heating medium: + 2°C to + 110°C
- ambient temperature: +5°C to + 55°C
- max. torque: 8 Nm
- setting proportional opening of the valve according to the type of installation material Xp (position no. 6 in the front panel description)
Additional parameters
| Category: | control units |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.5 kg |
| Product replaced by new one: | https://www.deltastav.sk/kontrolna-jednotka-constantemp/ |
| The item has been sold out… | |
