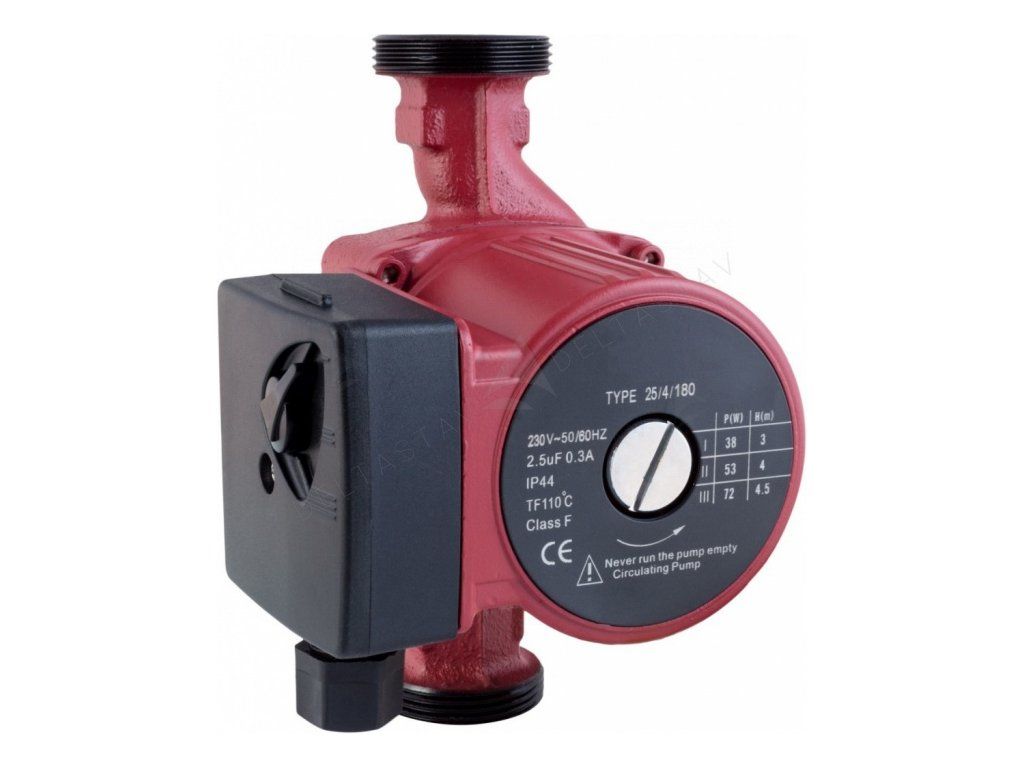

Three-speed circulation pump AVANSA 25-4/180

Product detailed description

- installation length 180 mm, discharge 4 m, max. flow 48 l/min

Used in systems for hot and cold non-potable water. The pump body is made of cast iron, cast aluminium. A high-quality bipolar motor, asynchronous, does not require overload protection, has three speeds. It is controlled by a special switch mounted on the terminal block, which allows to set the pump according to the device characteristics.

Technical data:

• max. working pressure: up to 10 bar
• max. temperature of the pumped medium: + 110 °C
• protection class: IP44, insulation class: FH
• pump part material: cast iron / plastic
• version: 230 V
• distance between suction and discharge nozzle: 180 mm
• electric motor power: 72/53/38 W
• discharge: 4 m, max. flow: 48 l/min
• connection dimensions: 6/4“
