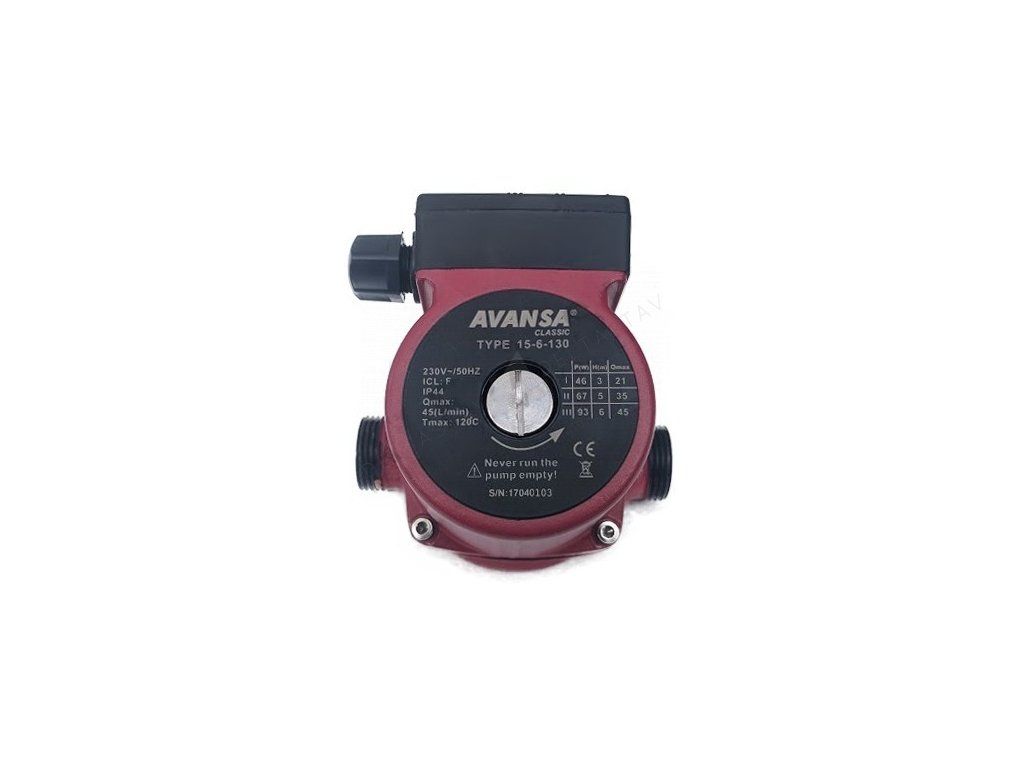

Three-speed circulation pump AVANSA 15-6/130

Product detailed description

- installation length 130 mm, head 6 m, max. flow 45 l/min, 1" connection

Used in systems for hot and cold non-potable water. The pump body is made of cast iron, cast aluminum. A high-quality bipolar motor, asynchronous, does not require overload protection, has three speeds. It is controlled by a special switch mounted on the terminal block, which allows to set the pump according to the device characteristics.

Technical data:

• max. working pressure: up to 10 bar
• max. temperature of the pumped medium: + 110 °C
• protection class: IP44, insulation class: FH
• supply voltage: 230 V
• distance between suction and discharge nozzles: 130 mm
• electrical motor power: 93 / 67 / 46 W
• head 6 m
• max. flow: 45 l/min
• pipe diameter: DN 15
• connection dimensions: 1"
