Three-axis bathroom set

Product detailed description

Three-way bathroom set:

IVAR. KIT VCD-  1/2" x EK, 15 x 1 right
IVAR KIT VCS- 1/2" x EK, 15 x 1 left
IVAR. KIT VCD/1-  1/2" x EK, 16 x 2 right
IVAR KIT VCS/1- 1/2" x EK, 16 x 2 left
IVAR KIT VCDT- 1/2" x EK, 15 x 1 right + T-piece
IVAR KIT VCST- 1/2" x EK, 15 x 1 left + T-piece
IVAR KIT VCDT/1-  1/2" x EK, 16 x 2 right + T-piece
IVAR KIT VCST/1- 1/2" x EK, 16 x 2 left + T-piece


• PN 10, T = +120 °C
• for connection to copper or plastic-aluminium pipe with IVAR TR compression fitting (copper with diameter 15x1), IVAR TA (ALPEX with diameter 16x2)
• three-way configuration right P, left L
• material: nickel-plated brass CW617N

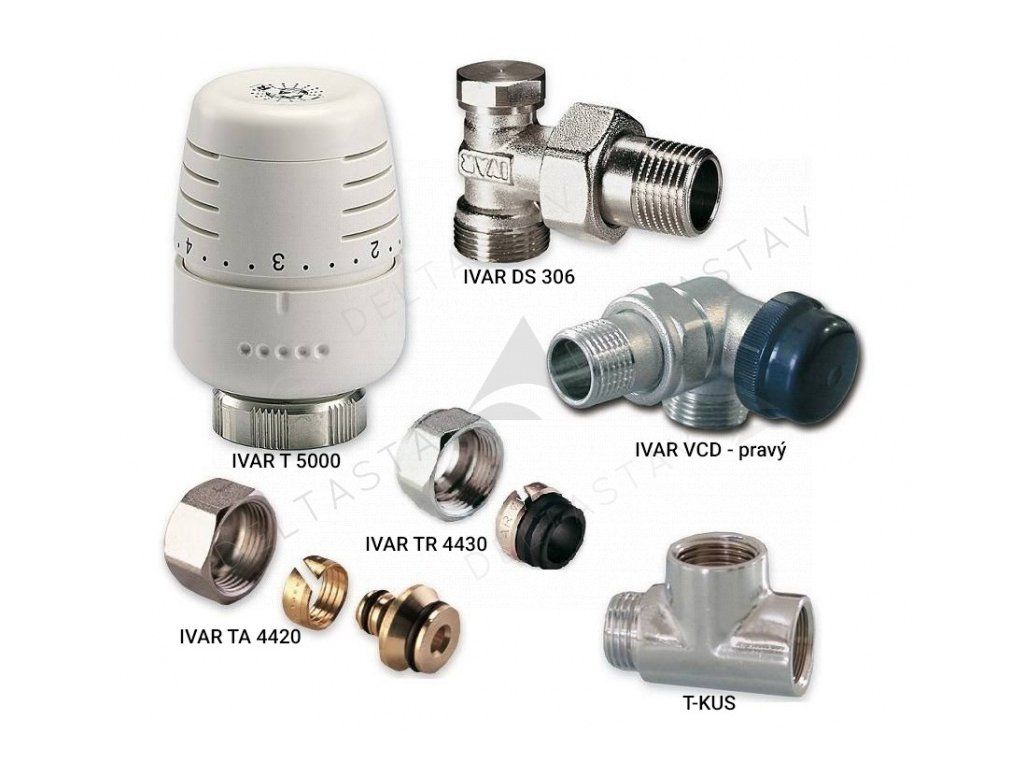

The set consists of a three-way two-position thermostatic valve, thermostatic head, regulating compression fitting and compression fittings for copper or plastic-aluminium pipe and a T-piece for combined radiator connection. Tightening torque for IVAR TA 4420 = 25-35 Nm, for IVAR TR 4430 = 35-45 Nm.
