Threaded check valve
Code: 51000200
Product detailed description

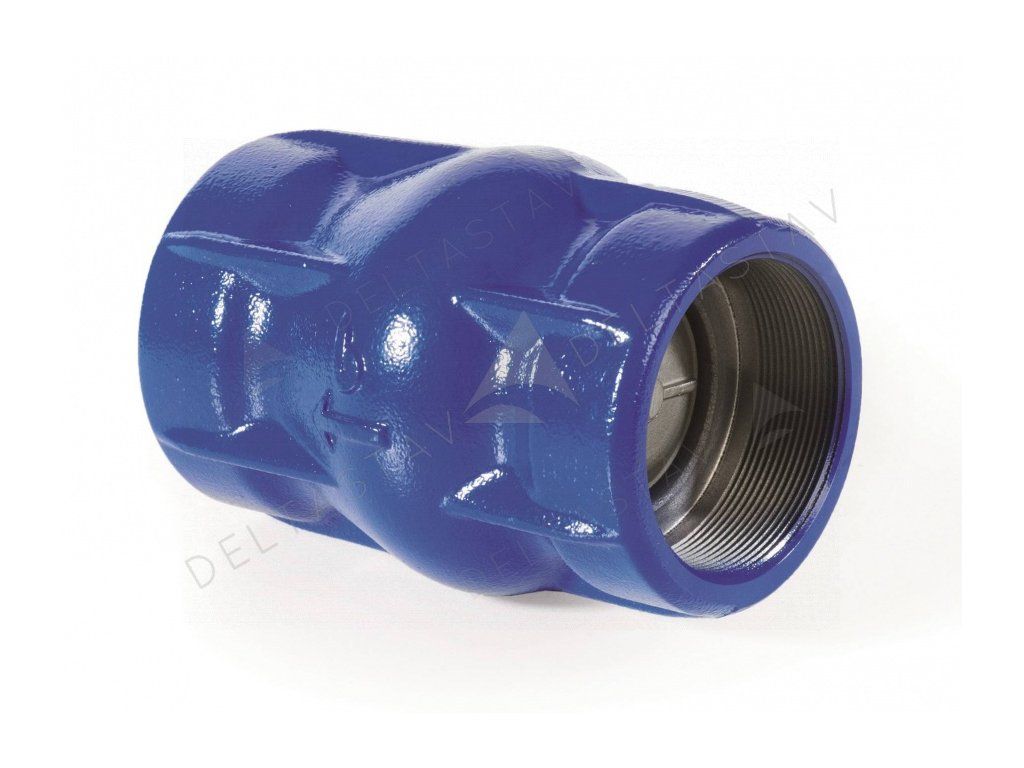

Threaded check valve BRA T5 000.
- PN 16
- minimum back pressure for closing 0.1 bar, for opening 0.2 bar
- T = -10 °C to +100 °C
- threaded check valve with stainless steel spring and NBR sealing
- for heating and air conditioning, water supply, compressed air, oils and hydrocarbons
- construction types minimize turbulence and pressure loss
- for all mounting positions (with strainer BRA.51.000 and as suction basket)
- not suitable for steam supply
- material: body cast iron GJL250, spring AISI 302, sealing NBR

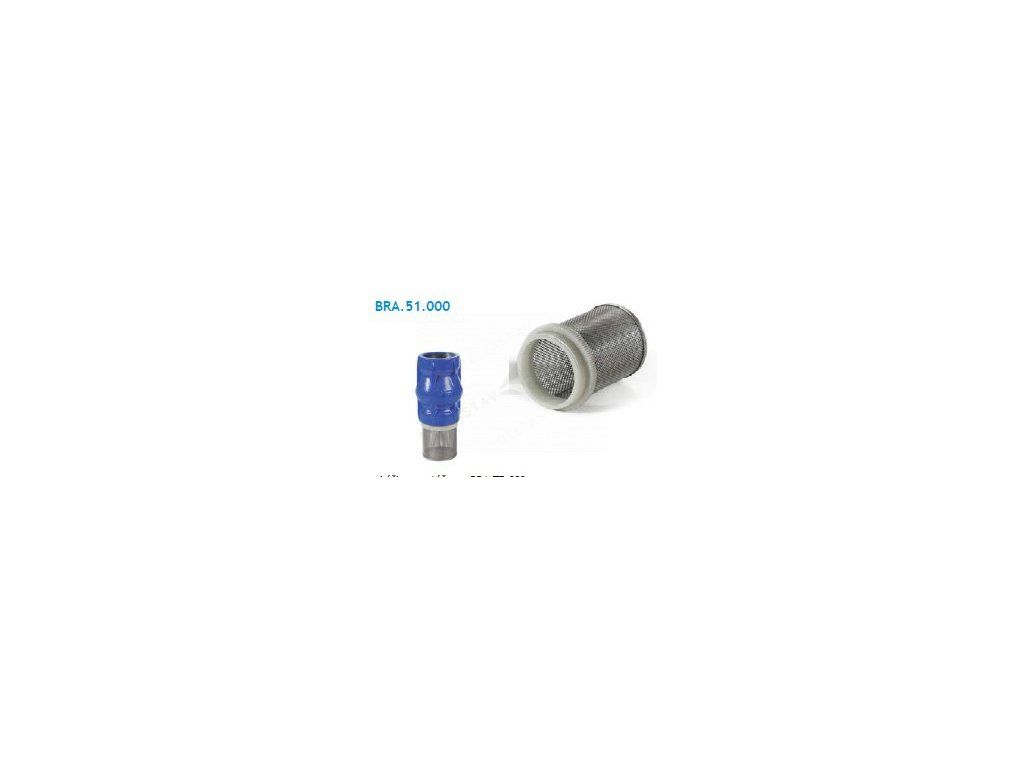

Strainer for suction basket BRA 51.000 - for BRA T5 000.
- PN 10
- T = -10 °C to +100 °C
- for water supply, pumping stations
- material: body AISI 304, thread nylon
Additional parameters
| Category: | check valves |
|---|---|
| Warranty: | 2 years |
