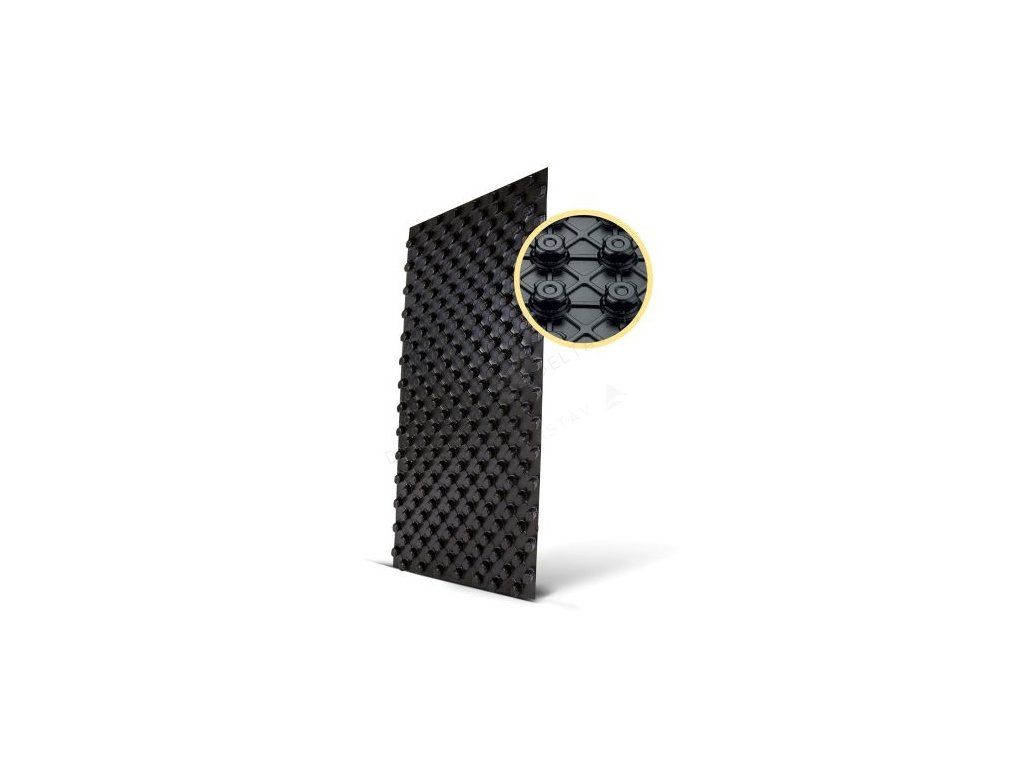

System plastic sheet STIROTERMAL SOLO
Code: STIROTERMAL SOLORelated products
Product detailed description
- PS foam sheet with a thickness of 1 mm, spacing of 50 mm, suitable for pipe Ø14-18 mm
|
Price is given per 1 m2 of the board One package contains 22.4 m2, or 20 boards (with an area of 1.12 m2 each)
|
- for pipe diameter: 14 – 18 mm
- pipe spacing: 50, 100, 150, 200 mm

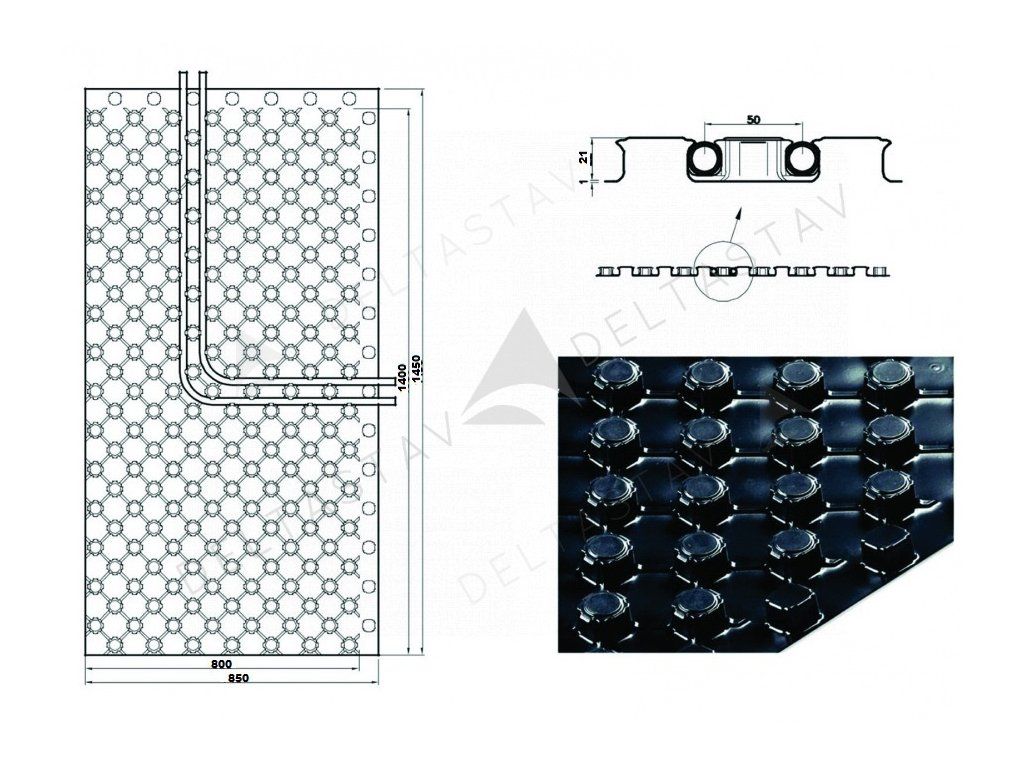

- net board dimensions (actual usable dimensions): 1400 x 800 mm
- net board area: 1.12 m2
- overall foam height: 21 mm
- fire classification according to EN 13501-1: E
- fire classification according to DIN 4102: B1
- foam thickness: 1 mm
- overlap of the foam: 50 mm
- foam material: PS
- foam color: black
- quantity in the package: 22.4 m2
- quantity in the package: 20 boards
- package dimensions: 1510 x 865 x 315 mm
- country of origin: EU
- each board contains a so-called "lock", which ensures overlap on each side of the board with the next board, thus preventing the concrete mix from penetrating under the polystyrene during pouring
- the reflective foam consists of rigid PS plastic with a thickness of up to 1 mm with protrusions (hats) with overhangs that allow for quick and easy installation (the pipe will not pop out afterward)
- inside the board there are 5 mm small protrusions that ensure the pipe is fully covered by the concrete mix
Additional parameters
| Category: | studded polystyrene floor panels |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.4 kg |
