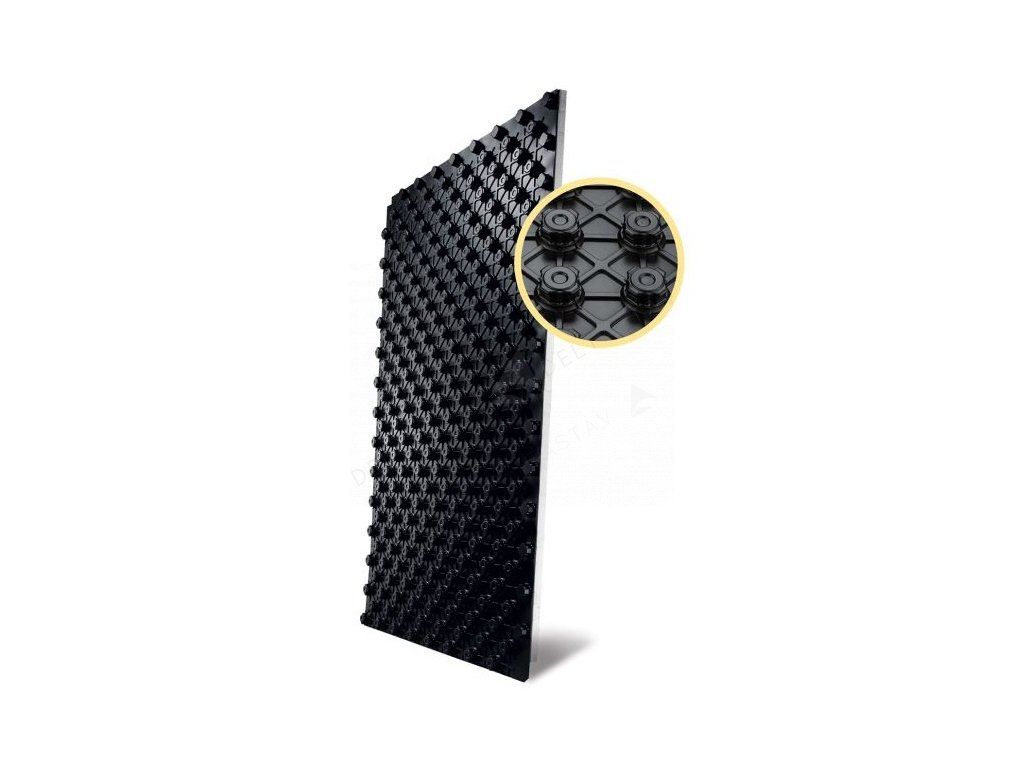

System board STIROTERMAL DUO 20
Code: STIROTERMAL DUO 20Related products
Product detailed description
- with thickness 42 mm, PS foil with thickness 0.6 mm, insulation thickness 20 mm,
spacing 50 mm, suitable for pipe Ø14-18 mm
spacing 50 mm, suitable for pipe Ø14-18 mm
|
Price is given per 1 m2 of board One package contains 11.2 m2, or 10 boards (with area 1.12 m2) |
- for pipe diameter: 14 – 18 mm
- pipe spacing: 50, 100, 150, 200 mm
- insulation material: EPS
- net board dimensions (actual usable dimensions): 1400 x 800 mm
- net board area: 1.12 m2
- overall thickness: 42 mm
- insulation thickness: 20 mm
- thermal conductivity coefficient: 0.034 W/(m.K)
- thermal resistance: 0.55 m2 K/W
- maximum load: 4000 kg/m2
- compressive strength (10% compression): 150 kPa
- thermal resistance: 80 °C
- fire classification according to EN 13501-1: E
- fire classification according to DIN 4102: B1
- foil thickness: 0.6 mm
- foil material: PS
- foil color: black
- quantity in package: 11.20 m2 / 10 boards
- package dimensions: 1510 x 865 x 315 mm
- country of origin: EU
- suitable also for higher load
- each board contains so-called "lock", which ensures overlapping of each side of the board with the next board, thus ensuring that the mixture does not penetrate under the polystyrene during pouring
- the reflective foil consists of reinforced PS plastic with thickness 0.6 mm with protrusions (hats) with overhangs allowing quick and easy installation (the pipe will not pop out afterward)
- inside the board there are 5 mm small protrusions, which ensure that the pipe is completely covered by the casting material
Additional parameters
| Category: | studded polystyrene floor panels |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.7 kg |
