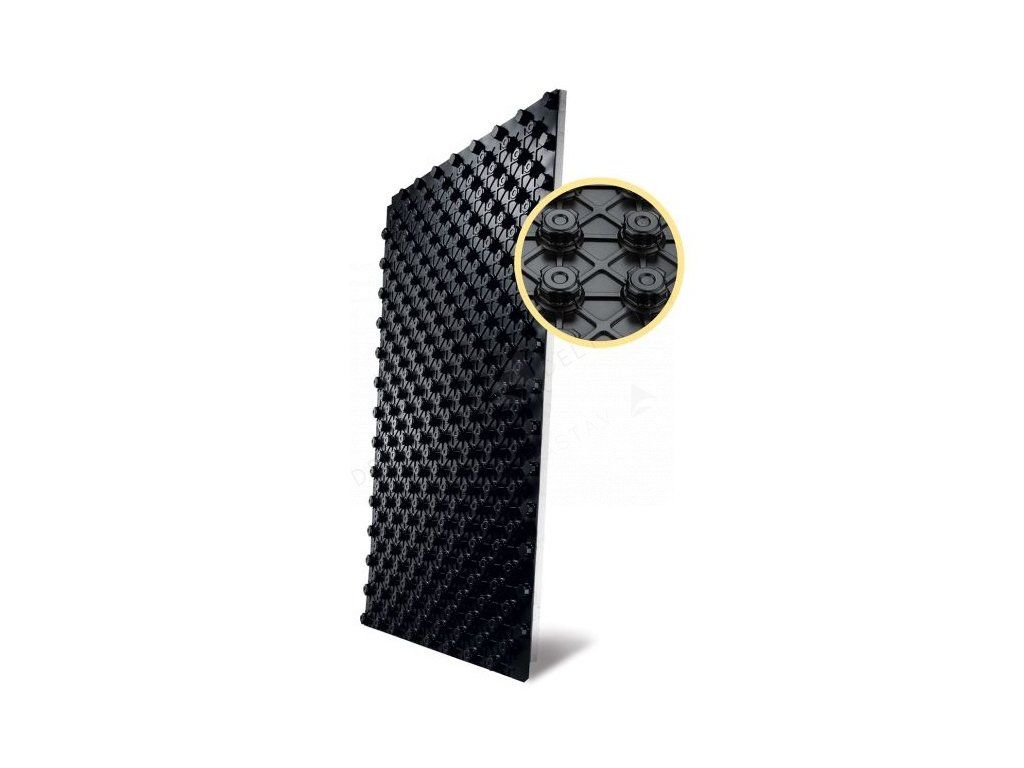

System board STIROTERMAL DUO 11
Code: STIROTERMAL DUO 11Related products
Product detailed description
- with a thickness of 33 mm, PS foil with a thickness of 0.6 mm, insulation thickness 11 mm, spacing 50 mm,
suitable for pipe Ø14-18 mm
Technical parameters:
suitable for pipe Ø14-18 mm
|
Price is given per 1 m2 of the board One package contains 14.56 m2, or 13 boards (with an area of 1.12 m2 each) |
- for pipe diameter: 14 – 18 mm
- pipe spacing: 50, 100, 150, 200 mm
- insulation material: EPS 150
- net board dimensions (actual usable dimensions): 1400 x 800 mm
- net board area: 1.12 m2
- overall thickness: 33 mm
- insulation thickness: 11 mm
- thermal conductivity coefficient: 0.034 W/(m.K)
- thermal resistance: 0.30 m2 K/W
- maximum load: 4000 kg/m2
- thermal resistance: 80 °C
- fire classification EN 13501-1: E
- fire classification DIN 4102: B1
- foil thickness: 0.6 mm
- foil material: PS
- foil color: black
- quantity in a package: 14.56 m2 / 13 boards
- package dimensions: 1510 x 865 x 315 mm
- country of origin: EU
- each board contains so-called "locking" mechanism, which ensures overlapping of each side of the board with the next board, thus preventing the concrete mix from penetrating under the polystyrene during pouring
- the reflective foil consists of reinforced PS plastic with a thickness of 0.6 mm with protrusions (bumps) that allow for quick and easy installation (the pipe will not pop out later)
- inside the board there are 5 mm small protrusions that ensure the pipe is fully covered with the concrete mix
Additional parameters
| Category: | studded polystyrene floor panels |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.4 kg |
