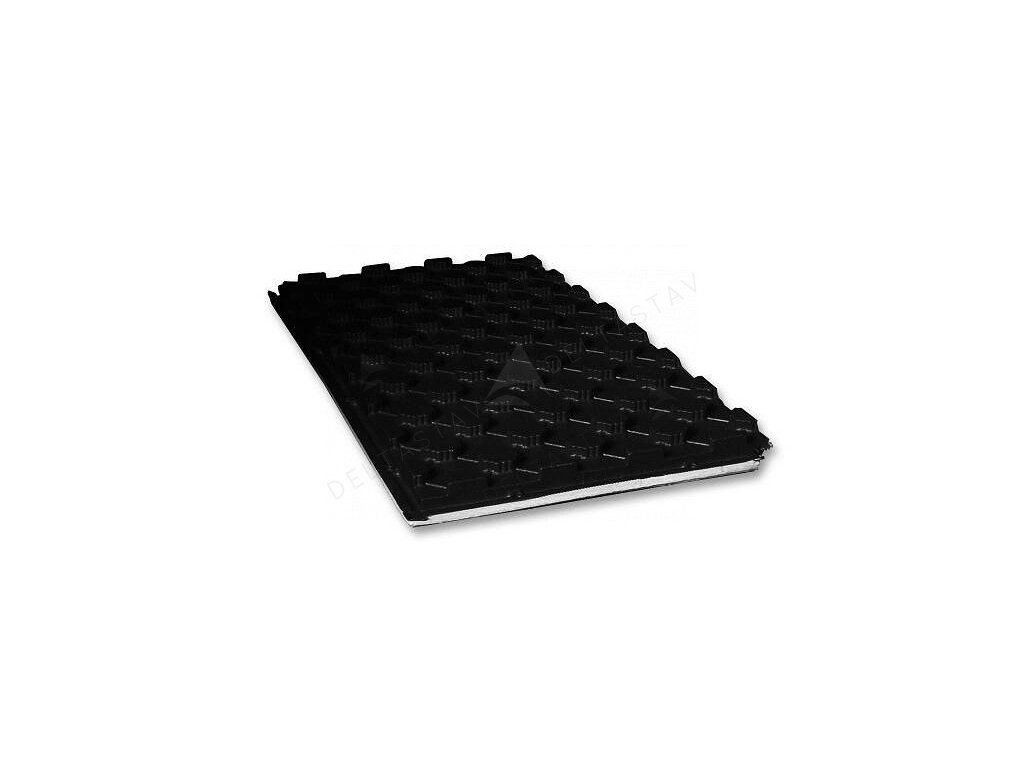

System board IVAR TH

Code: TH15P

Wholesale discount Wholesale discount 2

Not rated Rating details

Brand: IVAR

up to –20 %

from 20,79 € up to –20 % from 16,63 € / m2 from 13,52 € excl. VAT

Choose variant

- with thickness of 47mm, or 57mm with protective waterproofing foil

Detailed information

Type: System board IVAR.TH 15P

In stock at supplier | TH15P

20,79 €

16,63 € / m2

13,52 € excl. VAT

Type: System board IVAR.TH 30P

In stock at supplier | TH30P

21,03 €

16,83 € / m2

13,68 € excl. VAT

Product detailed description

- IVAR.TH 15P and IVAR.TH 30P with protective hydro-insulation foil

TH15P has a thickness of 43 mm,
spacing 50 mm, for pipe Ø16-18 mm

TH30P has a thickness of 57 mm,
spacing 75 mm, for pipe Ø16-18 mm

Price is indicated per 1m2

( 1 panel has an area of 0.5 m2)

Purchase is possible only in full packages!
- one package contains 7.52 m2
( 1 package contains 15 panels )

installation spacing 50 / 100 / 105 / 200 / 250 / 300 mm, usable dimensions 1000 x 500 mm = 0.50 m2
for pipes with outer diameter 16, 17 and 18 mm
insulation thickness: 15 mm
total thickness: 43 mm
packing: 7.5 m2 / 15 pcs

Price is indicated per 1m2

( 1 panel has an area of 0.72 m2)

Purchase is possible only in full packages!
- one package contains 7.20 m2
( 1 package contains 10 panels )

installation spacing 75 / 150 / 225 / 300 mm, usable dimensions 1200 x 600 mm = 0.72 m2
for pipes with outer diameter 16, 17 and 18 mm
insulation thickness: 30 mm
total thickness: 57 mm
packing: 7.2 m2 / 10 pcs

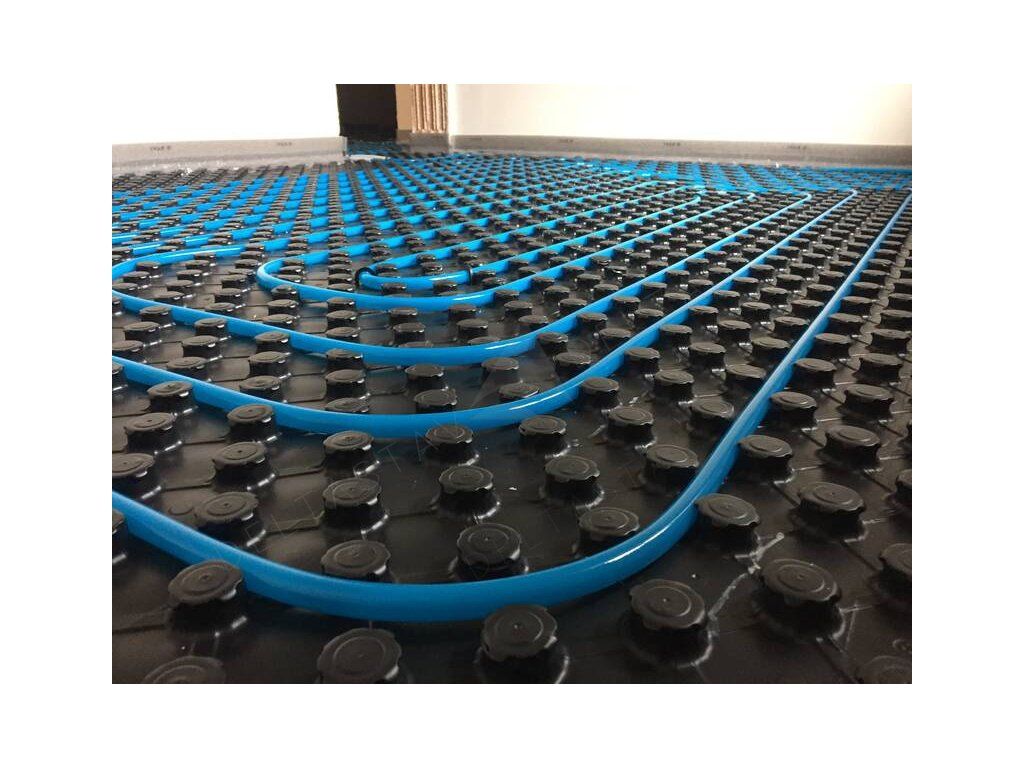

Note: thermal insulation for floor heating with covering foil (black)

Additional parameters

Category:	Underfloor heating system panels
Warranty:	2 years

SKNAVOD-systemove-desky.pdf - (1 001 kB) User manual
