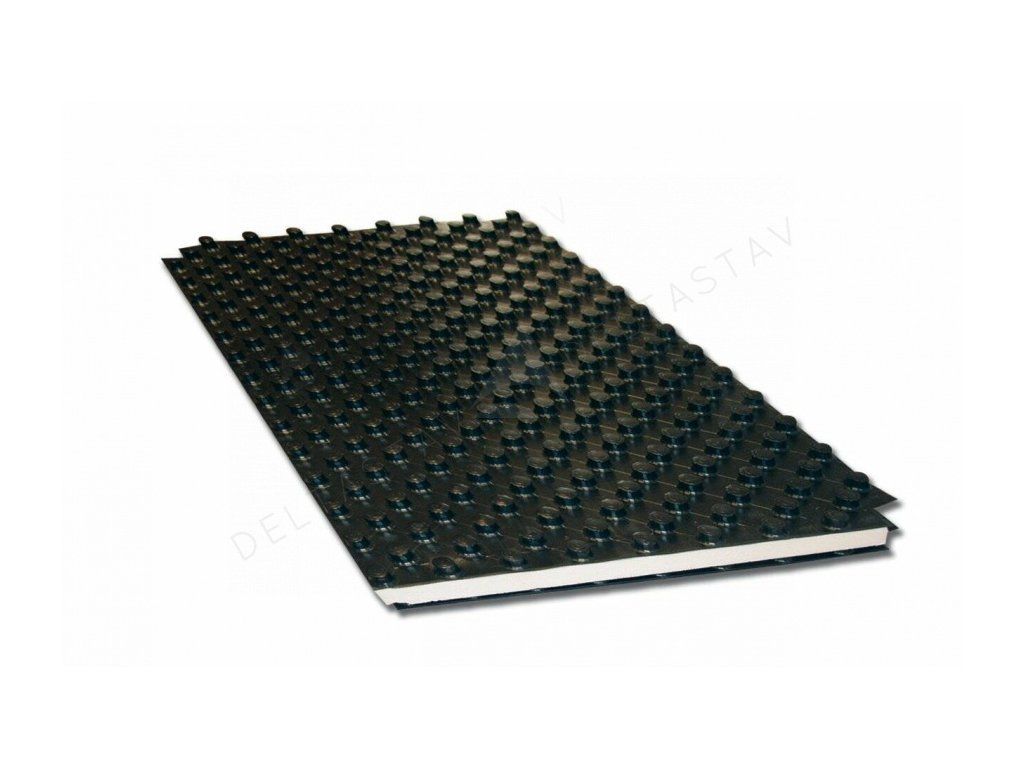

System board IVAR COMBITOP ND

Code: ND10N

Wholesale discount Wholesale discount 2

Not rated Rating details

Brand: IVAR

up to –20 %

from 21,65 € up to –20 % from 17,32 € / m2 from 14,08 € excl. VAT

Choose variant

- thickness 51 mm, or 31 mm with protective waterproofing foil (hardened)

Detailed information

Type: System board IVAR.COMBITOP ND 10 N

In stock at supplier (11.2 m2) | ND10N

21,65 €

17,32 € / m2

14,08 € excl. VAT

Type: System board IVAR.COMBITOP ND 30 N

In stock at supplier | ND30N

23,37 €

18,70 € / m2

15,20 € excl. VAT

Product detailed description

COMBITOP ND30N has a thickness of 51 mm,
spacing of 50 mm, for pipe Ø16-18 mm

COMBITOP ND10N has a thickness of 31 mm,

spacing of 50 mm, for pipe Ø16-18 mm

Price is indicated per 1m²

(1 panel has an area of 1.12 m²)

Available only in full packages!
- one package contains 6.72 m²
(1 package contains 6 panels)

installation spacing 50 / 100 / 150 / 200 / 250 / 300 mm
usable dimensions 1400 x 800 mm = 1.12 m²
for pipe with outer diameter 16, 17 and 18 mm
insulation thickness: 30 mm
total thickness: 51 mm
packaging: 6.72 m² / 6 pcs

Price is indicated per 1m²
(1 panel has an area of 1.12 m²)

Available only in full packages!
- one package contains 14.56 m²
(1 package contains 13 panels)

installation spacing 50 / 100 / 150 / 200 / 250 / 300 mm
usable dimensions 1400 x 800 mm = 1.12 m²
for pipe with outer diameter 16, 17 and 18 mm
insulation thickness: 11 mm
total thickness: 31 mm
packaging: 14.56 m² / 13 pcs

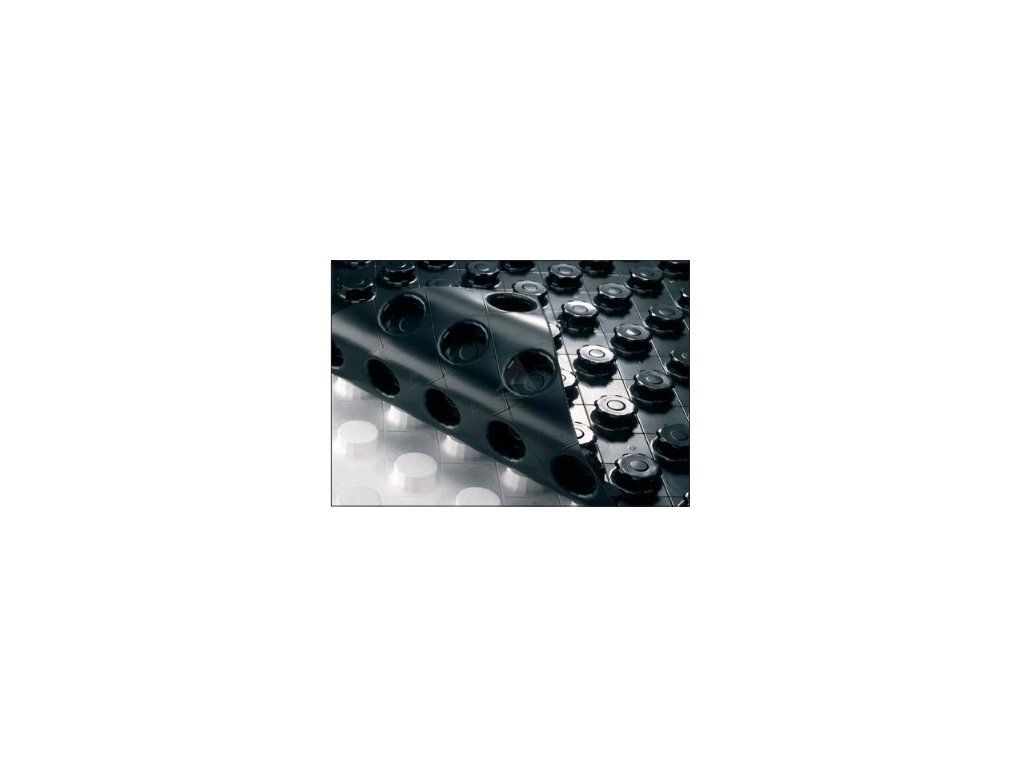

Note: thermal insulation for underfloor heating with increased thermal resistance and reinforced walking surface foil (black).

Additional parameters

Category:	Underfloor heating system panels
Warranty:	2 years

SKNAVOD-systemove-desky.pdf - (1 001 kB) User manual
