Solar pump unit ALEX
Code: 713408GSRelated products
Product detailed description
- highly efficient circulation pump WILO PARA15/7iPWM2 /for controller GH26, it is the SHIMGE APM20-8-130T PWM2 pump / which allows meeting strict electricity consumption requirements (signal iPWM, iPWM2)
- compact construction integrating all components into a polypropylene housing, which provides thermal insulation
- low flow rate of the entire assembly
- easy installation
- easy filling and flushing of the device - two drain valves
- fast and reliable air venting of the device / contains T-piece with an air vent, which ensures efficient air venting of the solar system during the first start-up and maintenance. Air is trapped inside the heater, where glycol flow is reduced due to the pipe cross-section. Air bubbles have a greater ability to rise towards the venting opening. The T-piece is made of brass and is thermally insulated /
- possibility to equip with additional components such as, e.g., temperature sensor, pressure switch or electronic flow meter
Parameters:
- dimensions: height 375 x width 115 x depth 130 mm
- nominal flow 10l/min
- max. operating temperature 110 °C
- max. operating pressure 6 bar
- connection 3/4"

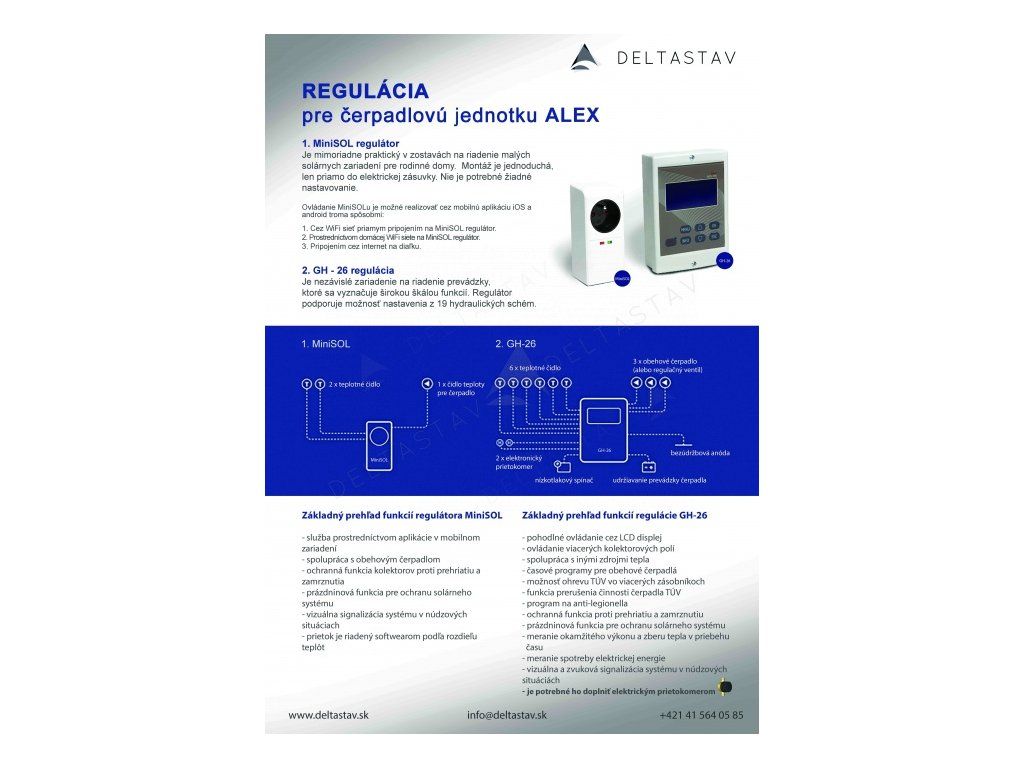

- two types according to control:
- with power cable with a plug
for operation with control MiniSOL
- cable without plug, terminated with bare wires
for connection to control GH26
|
You need to choose between these two types of control: |
|
|
|
| Components for assembling the entire solar system: | |
| Solar collectors |  |
| Solar storage tank |  |
| Collector connection accessories |  |
| THERMSOL ECO antifreeze mixture |  |
| Solar expansion vessel |  |
| Hand pump for system filling |  |
| Collector mounting on the roof |  |
Additional parameters
