Solar cylinder OKC

Code: 862000H

Sale Wholesale discount Wholesale discount 2

Not rated Rating details

Brand: HEWALEX

–20 %

from 1 076,97 € –20 % from 861,58 € / pcs from 700,47 € excl. VAT

Choose variant

- 200 to 500L for heating DHW in a two-circuit system consisting of a solar system and a boiler

Detailed information

Show all related products

Type: OKC 400 L

In stock at supplier | 864000H

1 793,03 €

1 434,42 € / pcs

1 166,20 € excl. VAT

Type: OKC 500 L

In stock at supplier | 865000H

1 958,77 €

1 567,02 € / pcs

1 274 € excl. VAT

Type: OKC 200 L

In stock at supplier | 862000H

1 076,97 €

861,58 € / pcs

700,47 € excl. VAT

Type: OKC 300 L

In stock at supplier | 863000H

1 282,38 €

1 025,90 € / pcs

834,07 € excl. VAT

Product detailed description

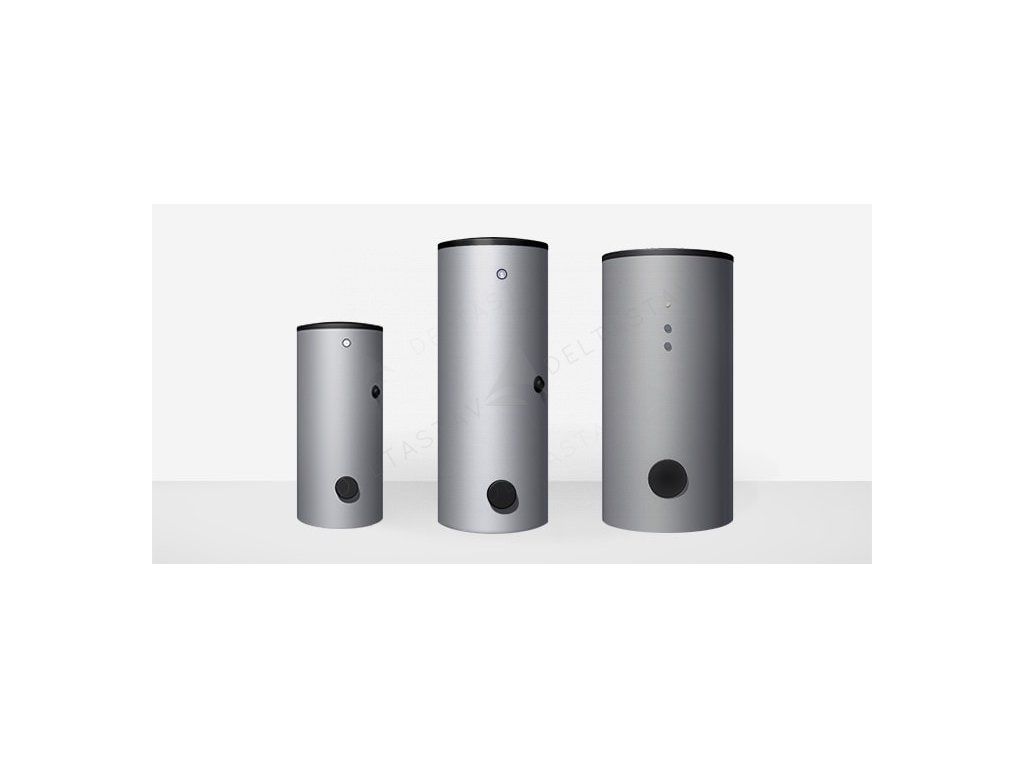

- model Hewalex OKC 200 L, 300 L, 400 L and 500 L - with 2 heat exchangers, including insulation

is designed for heating hot water in a 2-circuit system consisting of a solar system and a boiler
effective corrosion protection using the enamelled surface Crystal Enamel®
optimal relation of energy efficiency to purchase and operating costs
magnesium anode for additional protection of internal surfaces
reduction of heat losses to a minimum using rigid polyurethane foam ThermoGen®
hard plastic casing, easy to keep clean
built-in thermometer in the casing allows water temperature reading and monitoring of the tank operation
6/4” inlet allows installation of an electric heater (for emergency water heating)
adjusting tools for leveling the heater on the floor

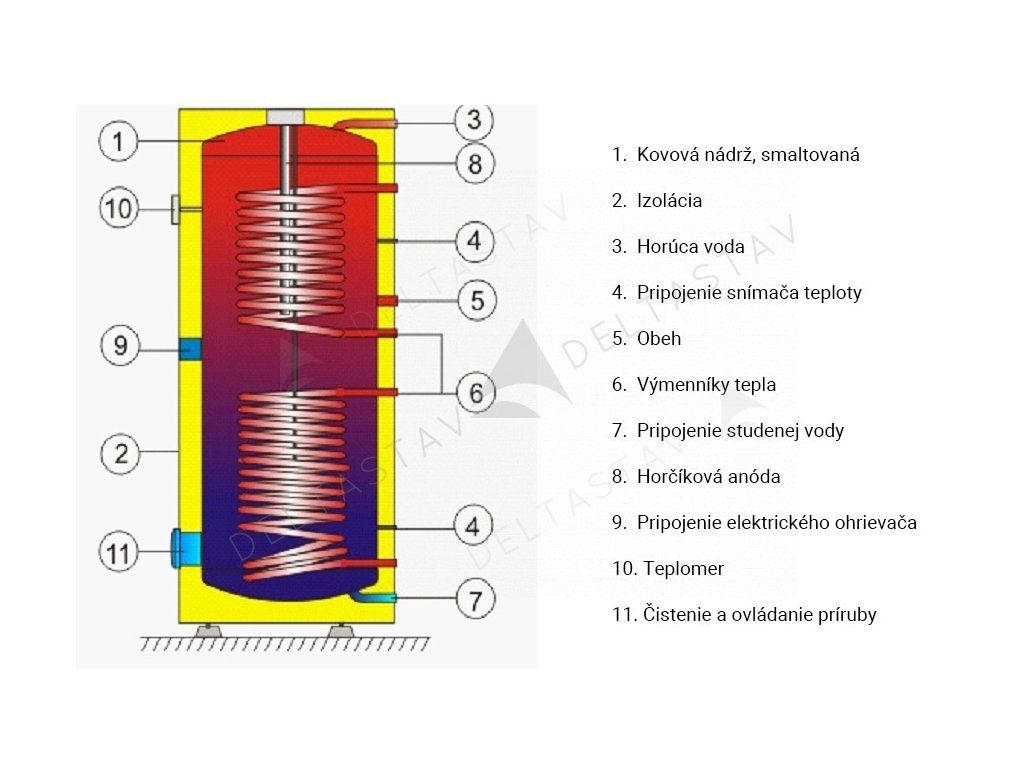

The lower coil is connected to the solar thermal system and the upper coil to a traditional heat source, such as a hot water boiler.

Another heat source can be an electric heater - its connection is enabled by a separate pipe fitting 6/4”. The tank is characterized by low heat loss due to polyurethane foam used as insulation (thickness 50 mm). Energy efficiency class "C" indicates a very high standard in this category and size of heaters. At the same time, it allows maintaining an optimal ratio of energy efficiency to purchase and operating costs.

The outer casing is made of hard plastic in a grey color.

It is therefore more resistant to dirt and mechanical damage.

The internal surfaces are made of steel and covered with a ceramic enamel that protects them against corrosion.

The magnesium anode is a standard heater fitting and provides additional protection.

The heater can be placed directly on the floor and precisely levelled using adjusting tools (feet).

OKC 200 L	weight: 96 kg heat exchanger areas (upper/lower): 0.8/0.8 m2 volume (L): 195 diameter/height: 600/1407 mm max. operating pressure: 10 bar maximum recommended solar collector absorber surface: 4.2 m2
OKC 300 L	weight: 118 kg heat exchanger areas (upper/lower): 0.8/1.2 m2 volume (L): 295 diameter/height: 600/1791 mm max. operating pressure: 10 bar maximum recommended solar collector absorber surface: 8.4 m2
OKC 400 L	weight: 165 kg heat exchanger areas (upper/lower): 1.1/1.9 m2 volume (L): 395 diameter/height: 650/1926 mm max. operating pressure: 10 bar maximum recommended solar collector absorber surface: 10 m2
OKC 500 L	weight: 175 kg heat exchanger areas (upper/lower): 1.4/2.0 m2 volume (L): 495 diameter/height: 700/1922 mm max. operating pressure: 10 bar maximum recommended solar collector absorber surface: 12 m2
