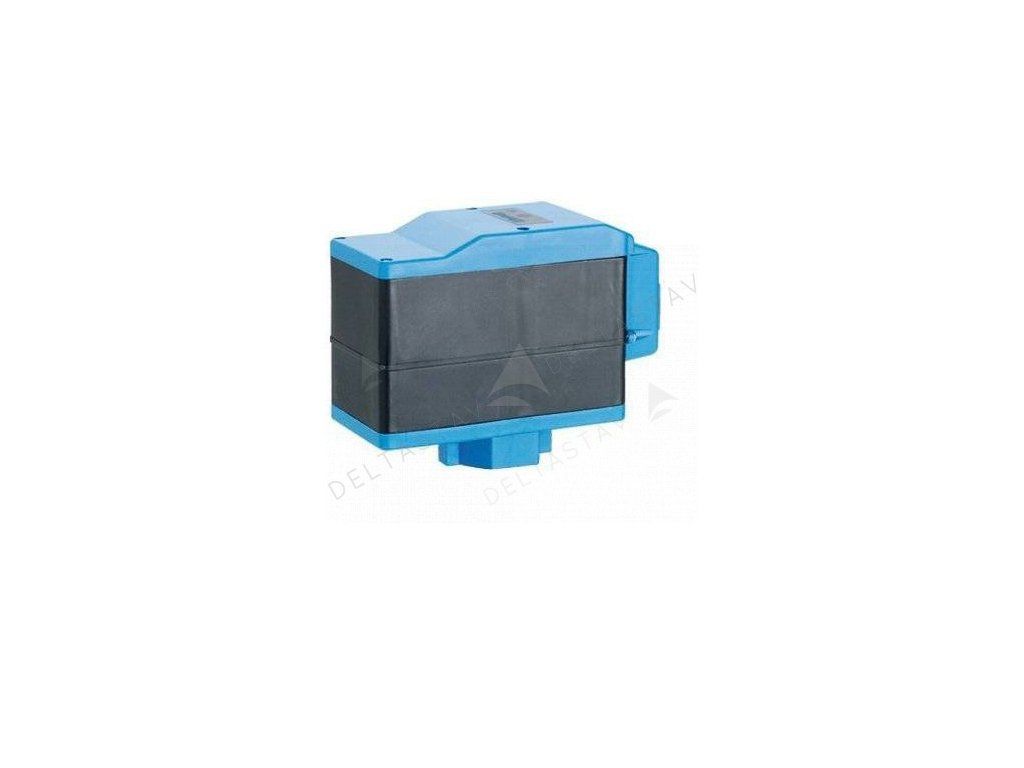

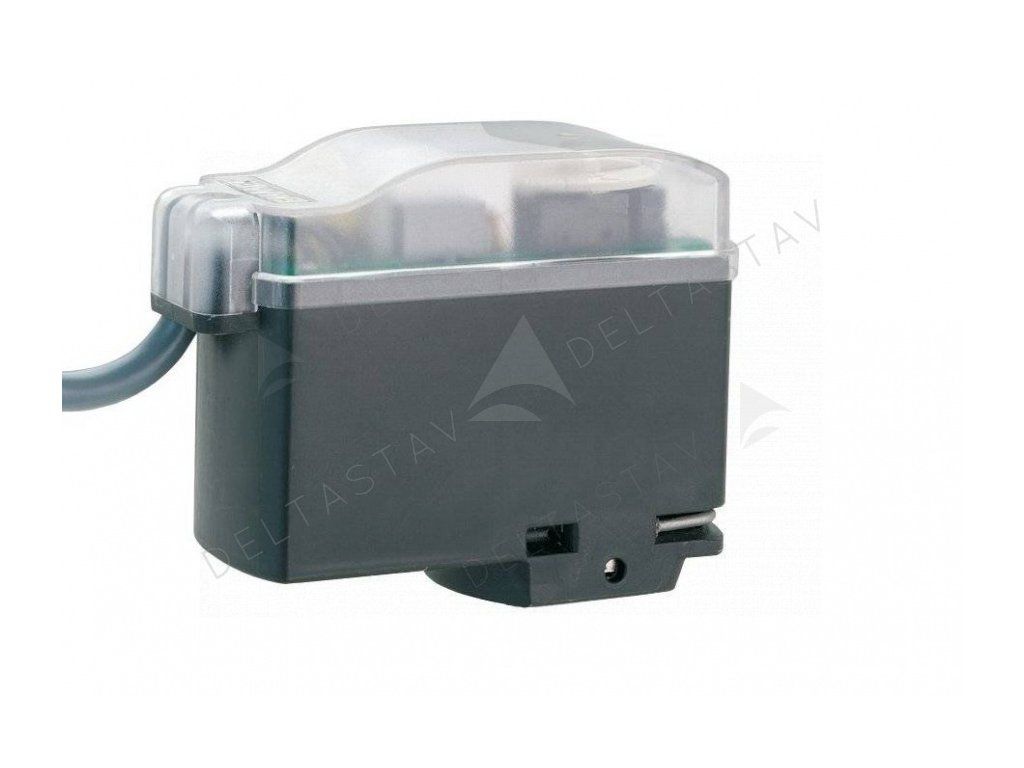

Replacement actuator for two-way and three-way zone valve
Code: I01420044
Product detailed description
Replacement actuator for two- and three-way zone valves MODULO COMPACT and MODULO PLUS.
- power supply 230 V, power consumption 4 VA, IP50 and IP55 depending on installation position
- - MODULO COMPACT 2 and PLUS 2 rotation angle 90°, time constant 60 s, torque 8 Nm
- - MODULO COMPACT 3 and PLUS 3 rotation angle 180°, time constant 120 s, torque 28 Nm
Additional parameters
| Category: | zone shut-off valves |
|---|---|
| Warranty: | 2 years |
