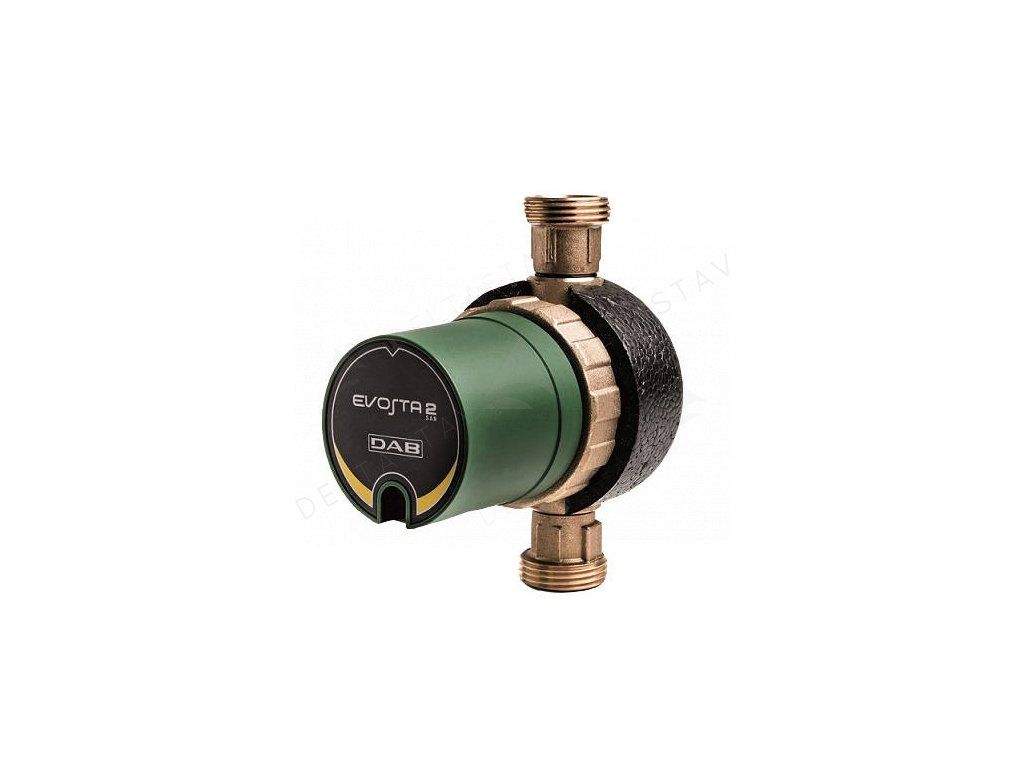

Pump DAB.EVOSTA2 SAN
Code: 60187267Related products
Product detailed description
- suitable for circulation of hot utility water in small domestic system areas
Technical data:
- operating pressure max. 10 bar
- operating range from 0 to 0.6 m³/h with a head up to 1.1 m
- power supply: 230 V / 50/60 Hz
- protection class IP42
- insulation class II
- liquid temperature range from 2°C to +75°C
- installation with horizontal position of the motor shaft
- pumped liquid must be clean, free of solid particles and mineral oils, non-viscous, chemically neutral with properties close to water / maximum 30% glycol content /
Self-protected synchronous motor with ball rotor, which requires only one sealing ring between the motor and the pump body. Easy to clean or replace. Brass pump body with internal thread R 1/2" (G 1/2") in version R or with check valve and insulation, standard version V for connector with external thread 1/2" (G 1") is supplied as standard.
Additional parameters
| Category: | hot water circulation pumps |
|---|---|
| Warranty: | 2 years |
