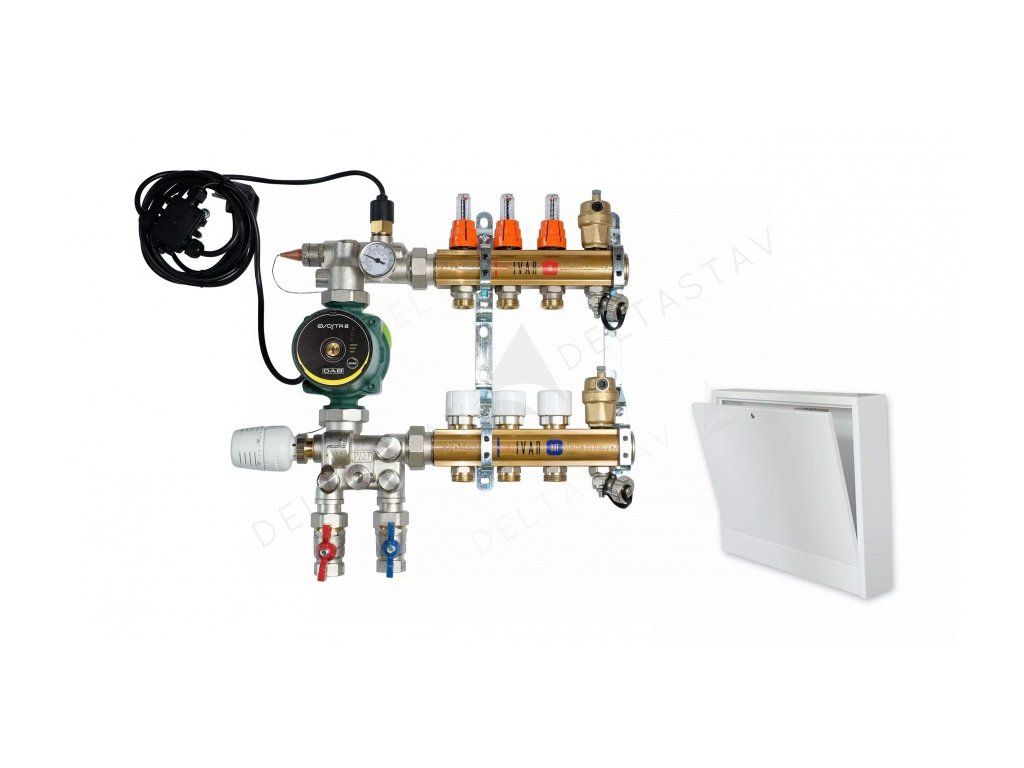

Manifold assembly IVAR UNIMIX including surface-mounted cabinet

Code: 557670UN

Wholesale discount Wholesale discount 2 Wholesale sale

Not rated Rating details

Brand: IVAR

–20 %

Manifold assembly IVAR UNIMIX including surface-mounted cabinet

from 1 226,31 € –20 % from 981,05 € / pcs from 797,60 € excl. VAT

Choose variant

- for combination of underfloor heating with radiator and with integrated three-way mixing valve,
including ceiling box N-MAX

Detailed information

Show all related products

Set – type: 2-port + surface-mounted cabinet N-MAX2

In stock at supplier | 557670UN

1 226,31 €

981,05 € / pcs

797,60 € excl. VAT

Set – type: 3-port + surface-mounted cabinet N-MAX3

In stock at supplier | 557671UN

1 301,34 €

1 041,07 € / pcs

846,40 € excl. VAT

Set – type: 4-port + surface-mounted cabinet N-MAX3

In stock at supplier | 557672UN

1 346,85 €

1 077,48 € / pcs

876 € excl. VAT

Set – type: 5-port + surface-mounted cabinet N-MAX3

In stock (1 pcs) | 557673UN

1 391,13 €

1 112,90 € / pcs

904,80 € excl. VAT

Set – type: 6-port + surface-mounted cabinet N-MAX3

In stock at supplier | 557674UN

1 436,64 €

1 149,31 € / pcs

934,40 € excl. VAT

Set – type: 7-port + surface-mounted cabinet N-MAX3

In stock at supplier | 557675UN

1 483,38 €

1 186,70 € / pcs

964,80 € excl. VAT

Set – type: 8-port + surface-mounted cabinet N-MAX3

In stock at supplier | 557676UN

1 527,66 €

1 222,13 € / pcs

993,60 € excl. VAT

Set – type: 9-port + surface-mounted cabinet N-MAX4

In stock at supplier | 557677UN

1 596,54 €

1 277,23 € / pcs

1 038,40 € excl. VAT

Set – type: 10-port + surface-mounted cabinet N-MAX4

In stock at supplier | 557678UN

1 648,20 €

1 318,56 € / pcs

1 072 € excl. VAT

Set – type: 11-port + surface-mounted cabinet N-MAX4

In stock at supplier | 557679UN

1 694,94 €

1 355,95 € / pcs

1 102,40 € excl. VAT

Set – type: 12-port + surface-mounted cabinet N-MAX4

In stock at supplier | 557680UN

1 739,22 €

1 391,38 € / pcs

1 131,20 € excl. VAT

Product detailed description

- for the combination of floor heating with radiator and with an integrated three-way mixing valve
- including mounting cabinet N-MAX

Note:
The assembly is intended for use with a condensing boiler or heat pump, and is suitable for use with all types of heat sources.

PN 10, T = +90 °C
material: brass CW617N
pump: DAB Evosta 40-70/130
internal pipe thread: 3/4“F

The assembly includes:

universal control and pump module with circulation pump and integrated three-way mixing valve with alternative control options
balancing control valve and adjustable bypass flow
thermostatic head with separate immersion temperature sensor for constant temperature control
distributor with control valves and flow meters
collector with shut-off valves
mounting brackets
emergency safety thermostat
3 pcs thermometers
air vents
2 pcs filling valves
4 pcs ball valves
installation cabinet of the appropriate size

Warning: Before commissioning the heating system, especially when combining floor and radiator heating, the manufacturer strongly warns nabout the need to flush the entire system according to the manufacturer's instructions. The seller is not liable for functional faults caused by impurities in the system.
We recommend treating the heating system with the preparation GEL.LONG LIFE 100.

Additional parameters

Category:	with pump, for combined heating
Warranty:	2 years
