Kit UCP25S for burner A 25

Product detailed description

Kit UCP25S for burner ATMOS A 25

As an accessory for each pellet boiler DxxP produced after 1.3.2007, it is possible to purchase an automatic ash removal system from the boiler body to an additional external ash container. This automatic ash removal device does not require any special operation and increases the comfort of pellet heating.

Ash removal takes place completely automatically using a screw conveyor with a gearbox, which removes ash from the chamber under the burner at regular intervals of 1, 3, 6, 12 or 24 hours, depending on the setting for the specific fuel. Automatic ash removal can be manually activated when needed by simply turning the switch on the boiler off and on again. The size of the ash container is selected carefully based on the ash content of the fuel.
When the additional ash container is completely full, the ash removal device (screw conveyor) will be automatically switched off and the ash removal module will start emitting an acoustic signal. To restart the operation after cleaning the external ash container (removing it), simply turn the switch on the boiler off and on again for 5 to 10 seconds.

Kit for wood, wood briquette and coal stoker boilers with a built-in burner in the upper door (basic kit)

Designed for boilers DCxxS, DCxxRS, CxxS(T), ACxxS and DC50S (burner A 45).

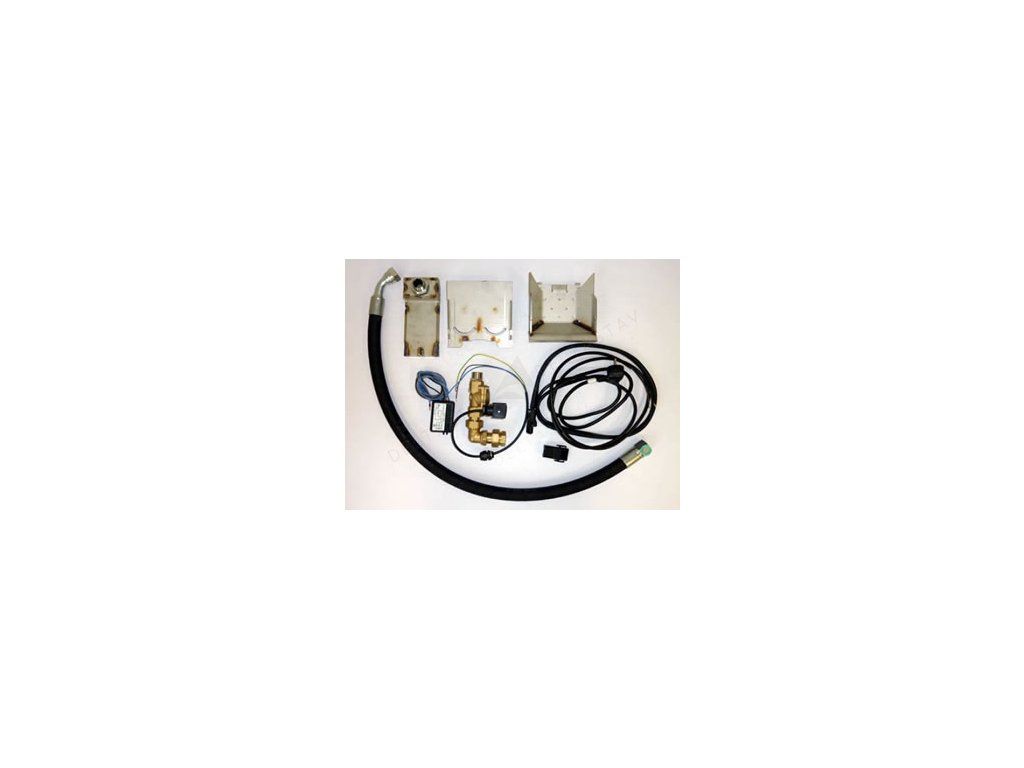

Kit contents:

• connecting air hose of 1 m length (DN 28 mm) with 3/4" coupling and control solenoid valve
• new igniter coil mounting plate
• new combustion chamber
• pneumatic cleaning channel with securing nut and washer
• module AD04 for special fan function of the boiler
• module AD03 for controlling the fan and compressor via the reserve output R, R2
• special metal cover under the flap with a closing slide

NOTE: The basic kit without a compressor is selected only if you own a compressor with an air tank volume of 5 to 10 L, which can achieve a pressure of 5 – 8 bar (500 – 800 kPa). The compressor or air tank must be in close proximity to the boiler and the basic pipe diameter must be observed.
