Kit UCP25KS for burner A 25

Product detailed description

Kit UCP25KS for burner ATMOS A 25

As an accessory for each pellet boiler DxxP manufactured after 1.3.2007, it is possible to purchase an automatic ash removal system from the boiler body to an additional external ash container. This automatic ash removal device requires no special operation and increases the comfort of pellet heating.

Ash removal takes place fully automatically using a screw conveyor with a gearbox, which removes ash from the chamber under the burner at regular intervals of 1, 3, 6, 12 or 24 hours, depending on the setting for the specific fuel. Automatic ash removal can be manually activated when needed by simply turning the switch on the boiler off and on again. The size of the ash container is selected carefully based on the ash content of the fuel.
When the additional ash container is completely full, the ash removal device (screw conveyor) is automatically switched off and the ash removal module begins to emit an acoustic signal. To restart the operation after cleaning the external ash container (removing it), simply turn the switch on the boiler off and on again for 5 to 10 seconds.

Kit for wood, wood briquette and coal boilers with a built-in burner in the upper door (extended kit)

Intended for boilers DCxxS, DCxxRS, CxxS(T), ACxxS and DC50S (burner A 45).

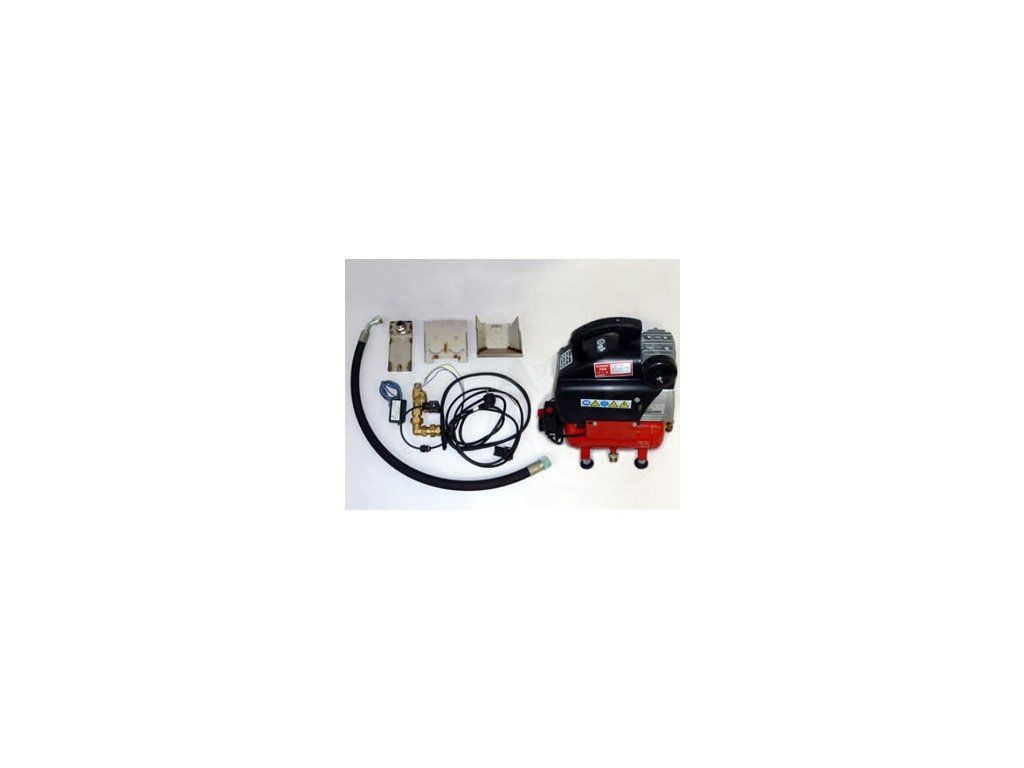

Kit contents:

• connecting air hose of 1 m length (DN 28 mm) with 3/4" thread and control solenoid valve
• new mounting plate (holder) for the ignition coil
• new combustion chamber
• pneumatic cleaning channel with a locking nut and washer
• module AD04 for a special function of the boiler fan
• module AD03 for controlling the fan and compressor via the reserve output R, R2
• special metal cover under the flap with a closing shutter
• compressor 1500 W and air tank volume 6 L
