Kit CP45KS for burner A 45

Product detailed description

Kit CP45KS for burner ATMOS A 45

This is a device intended for cleaning the combustion chamber of burners ATMOS A 25 and ATMOS A 45 when using lower quality pellets, which produce clinkers as a result of the bark content and other impurities in the pellets. The device ensures automatic cleaning, removal of clinkers and ash from the burner chamber at regular intervals or after each afterburning of the burner, in combination with the pellet burner. Pneumatic cleaning of the burner is very fast, effective and reliable. In the case where the customer requires that cleaning does not take place at night, it is necessary to purchase special switching hours (it is not possible to use standard switching hours available in stores). The device is sold as a kit for retrofitting pellet burners ATMOS A 25 or ATMOS A 45. Burner ATMOS A 85 is always delivered with pneumatic cleaning already included.

Kit for pellet boilers with exhaust fan CP45KS for burner A 45 (extended kit)

For boilers: D 20 P, DCxxSP(X), CxxSP (burner A 25),  D 30 P, D 31 P, D 40 P, D 50 P (burner A 45).

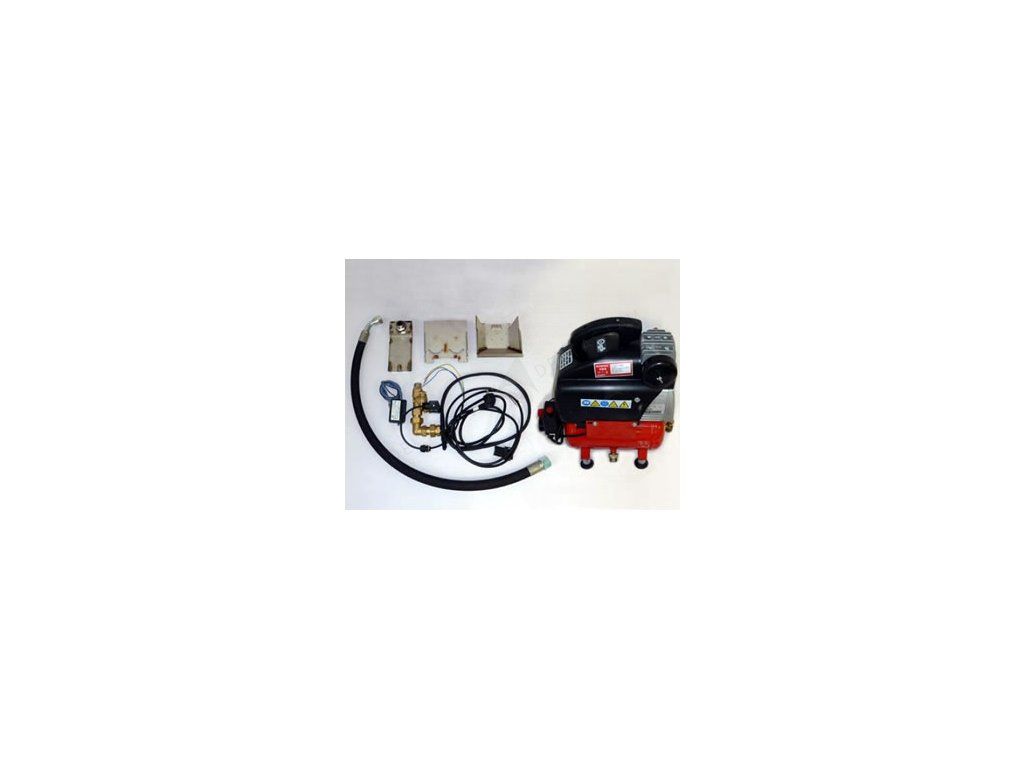

Kit contents:

• connecting air hose of length 1 m (DN 28 mm) with 3/4" coupling and control solenoid valve
• new igniter spiral mounting plate
• new combustion chamber
• pneumatic cleaning channel with securing nut and washer
• module AD02 for compressor control for spare output R, R2
• compressor 1500 W and air tank volume 6 L
