Kit CP25S for burner A 25

Product detailed description

Kit CP25S for burner ATMOS A 25

This is a device designed for cleaning the combustion chamber of ATMOS A 25 and ATMOS A 45 burners when using lower quality pellets, which can result in clinkers due to the content of bark and other impurities in the pellets. The device ensures automatic cleaning, removal of clinkers and ash from the burner chamber at regular intervals or after each afterburning of the burner. Pneumatic cleaning of the burner is very fast, effective and reliable. In the case where the customer requires that cleaning does not take place at night, it is necessary to purchase special switching hours (it is not possible to use standard switching hours available in stores). The device is sold as a kit for retrofitting pellet burners ATMOS A 25 or ATMOS A 45. The ATMOS A 85 burner is always delivered with pneumatic cleaning already included.

Kit for pellet boilers with exhaust fan CP25S for burner A 25 (basic kit)

For boilers: D 20 P, DCxxSP(X), CxxSP (burner A 25),  D 30 P, D 31 P, D 40 P, D 50 P (burner A 45).

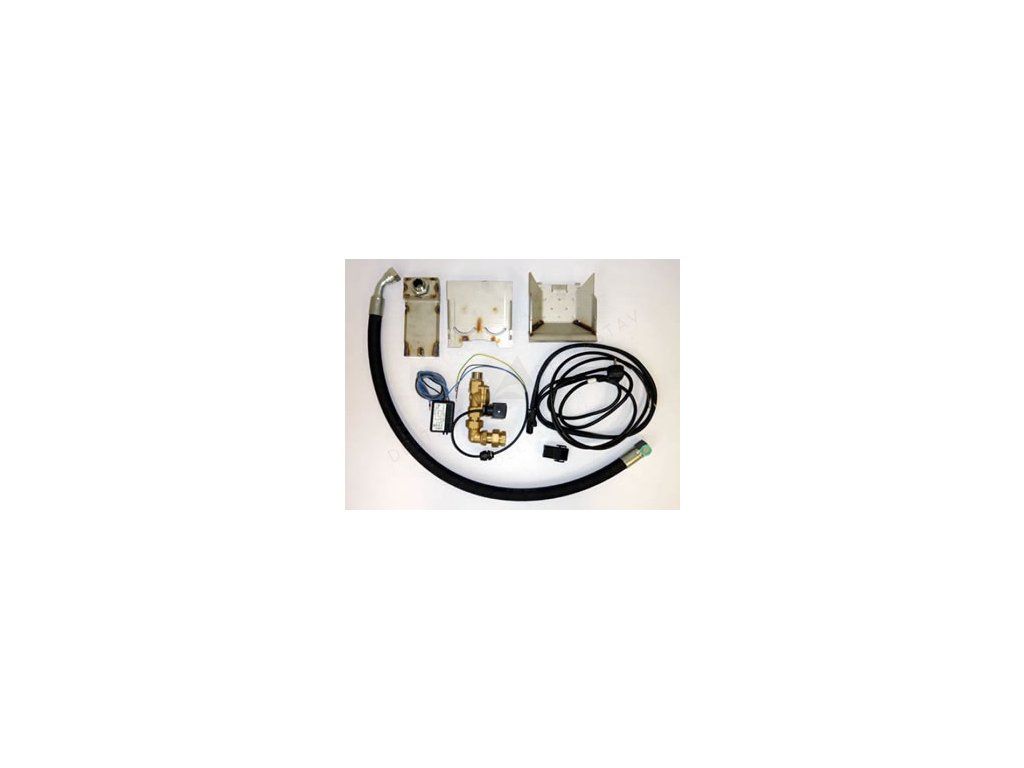

Kit contents:

• connecting air hose of length 1 m (DN 28 mm) with 3/4" coupling and control solenoid valve
• new igniter coil mounting plate
• new combustion chamber
• pneumatic cleaning channel with locking nut and washer
• AD02 module for controlling the compressor for spare output R, R2

NOTE: We choose the basic kit without a compressor only if we already own a compressor with an air tank volume of 5 to 10 L, which can achieve a pressure of 5 – 8 bar (500 – 800 kPa). The compressor or air tank must be in close proximity to the boiler and the basic pipe diameter must be maintained.
