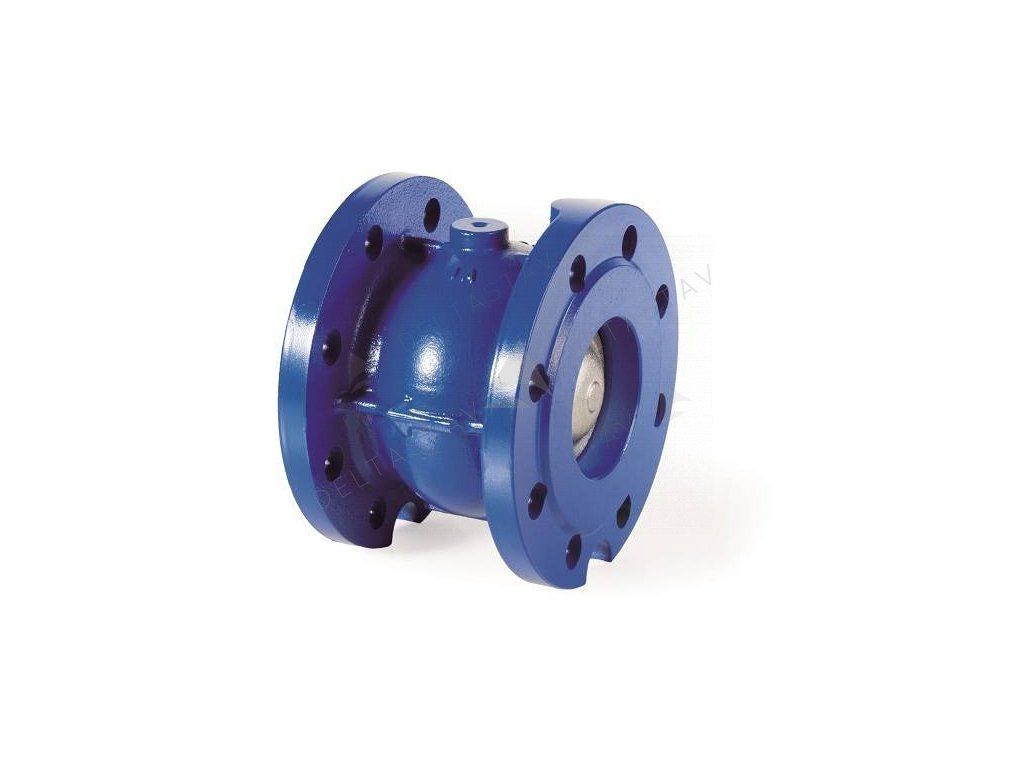

Flanged check valve - series 05
Code: 50000050
Product detailed description
Flanged check valve BRA F5 000.
- PN 10
- minimum back pressure for closing 0.1 bar, for opening 0.2 bar
- T = -10 °C to +100 °C
- screwed check valve with stainless steel spring and NBR sealing
- for water supply, heating, air conditioning, pumping stations, compressed air
- construction types minimize turbulence and pressure loss
- for all mounting positions (with strainer BRA.50.000 or as suction basket)
- not suitable for steam supply, possibility of delivery with FKM sealing T = +140 °C (BRA.F5.022)
- material: body grey cast iron GJL250, spring AISI 302, sealing NBR
Strainer for suction basket BRA 50.000 - for BRA F5 000.
- PN 10
- T = -10 °C to +100 °C
- for water supply, pumping stations
- for flanges PN 10/PN 16, strainer thickness 5 mm
- material: galvanized steel
Additional parameters
| Category: | check valves |
|---|---|
| Warranty: | 2 years |
