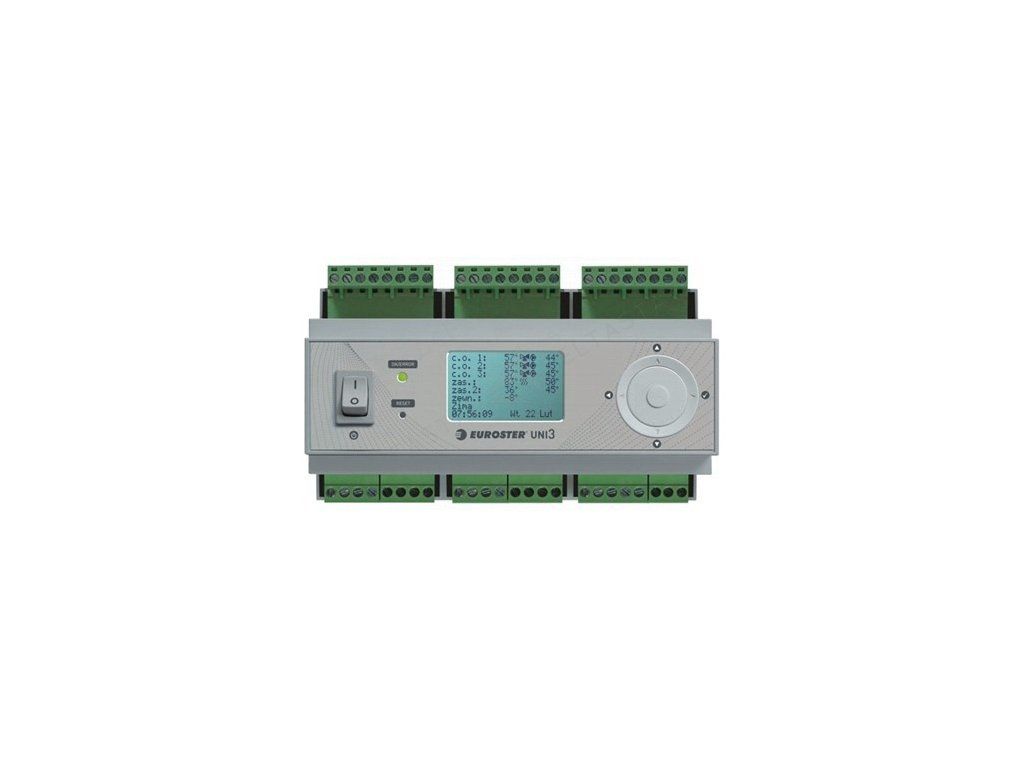

Euroster UNI3 - programmable controller for 3 heating circuits

Product detailed description

• possibility of independent setting of temperature and weather curve for each circuit
• enables independent control of each circuit together with a room thermostat and a weekly schedule
• controls - main heat source with its own controller e.g. gas boiler and auxiliary heat source - manually operated - e.g. solid fuel boiler, stove
• manual or automatic switching of summer / winter season - possibility to set the start and end date of the heating period
• selection of operating mode of the circuit by switching on and off the pump, or by reducing the temperature via a mixing valve with a permanently switched on pump
• utilization of heat generated in the auxiliary heat source (stove, solid fuel boiler)
• output for boiler, or control of auxiliary heating device
• communication - possibility of combining several UNI3 and UNI2 control units for the purpose of controlling auxiliary systems
• possibility to switch off the control of the mixing valve, or to completely switch off the circuit
• anti-stop function - protection of pumps and valves against short-circuit
• records of dangerous and alarm events
• overheat protection for each circuit
• signal at each exceedance of the permitted temperature
• possibility to activate the anti-freeze function
• cooperation with underfloor heating distributors
• interface languages of the controller: Czech, English, German, Polish, Russian, Hungarian
• including sensors

• intended for: 3 central heating circuits with pumps and mixing valves
• power supply: 230 V 50 Hz
• maximum consumption: 4 W
• maximum output load: 100 W (each output)

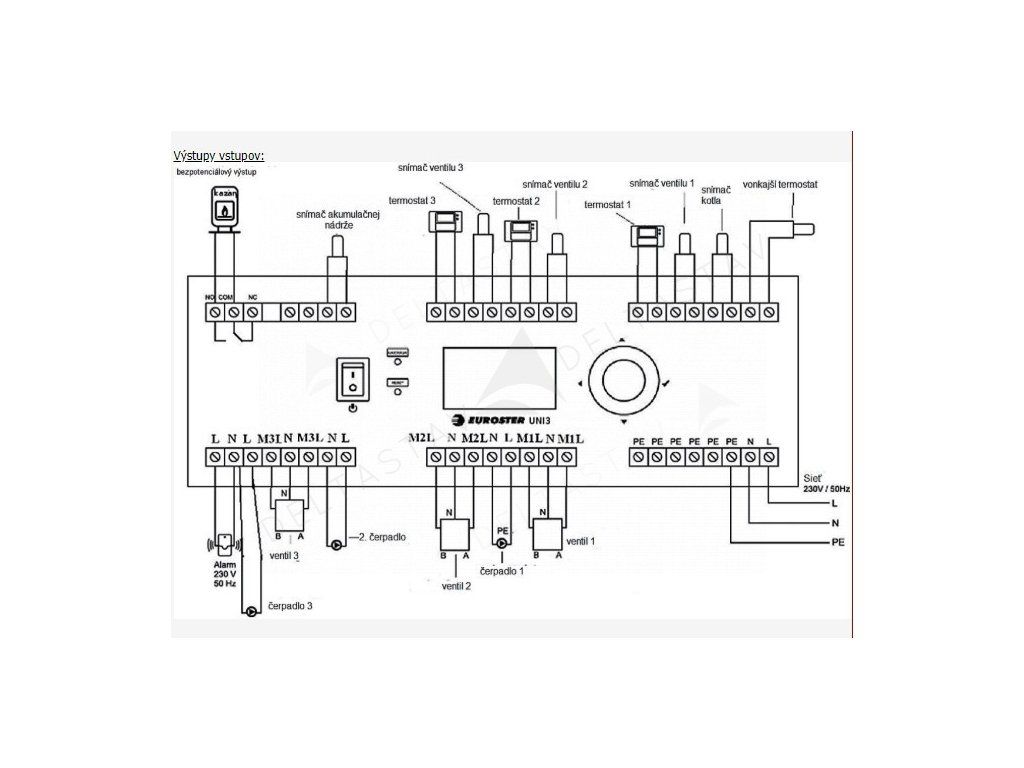

• controller outputs: relays, voltage types for pumps, servomotors, alarm output relays, no-voltage types for boiler or other heating device controllers
• temperature measurement range: - 30°C ........ + 110°C
• temperature control range: 15°C ........ + 90°C
• temperature control accuracy: 1 °C
• temperature measurement accuracy: 1°C
• operating temperature range: 5°C ...... 40°C
• visual indication: backlit LCD display, LED RGB
• storage temperature: 0°C ....... 45°C
• protection class: IP 20
• color: grey
• mounting: 35 mm rail, inside an electrical box
• weight (controller with cables): 0.545 kg

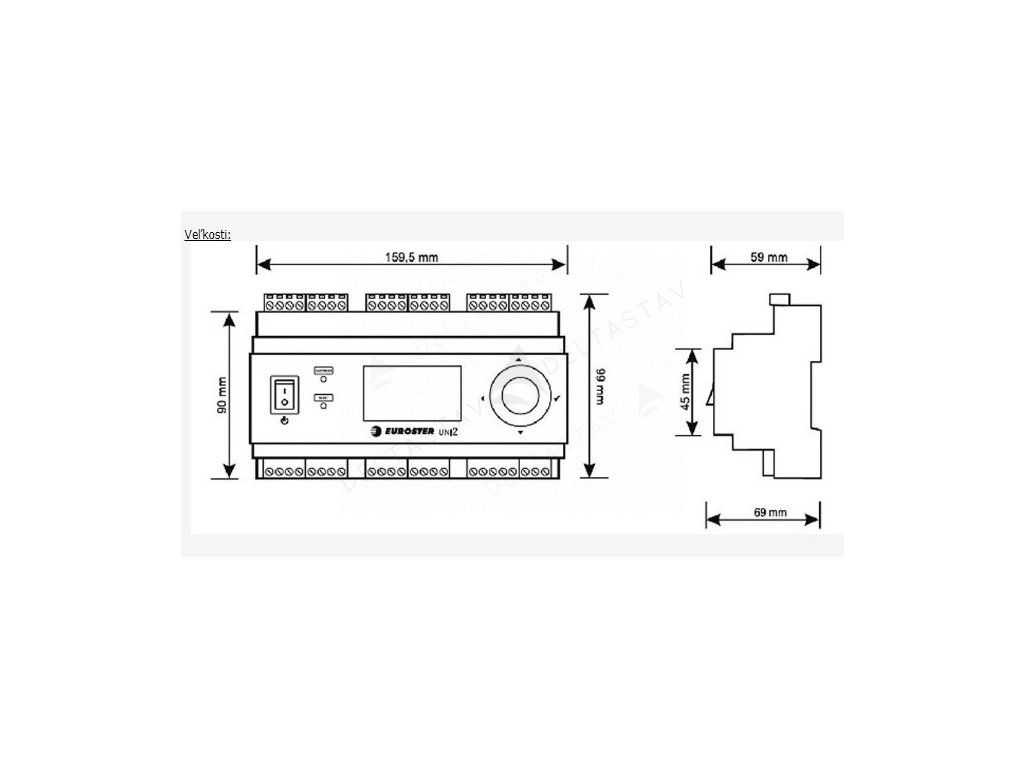

• maximum dimensions (WxHxD) mm: 159.5/90/59 mm

• UNI3 controller, power cable, 6 temperature sensors, clips for sensor cable mounting, screw terminals, manual
