Euroster UNI2 - programmable controller for 2 heating circuits
Code: EUROSTER UNI 2Related products
Product detailed description

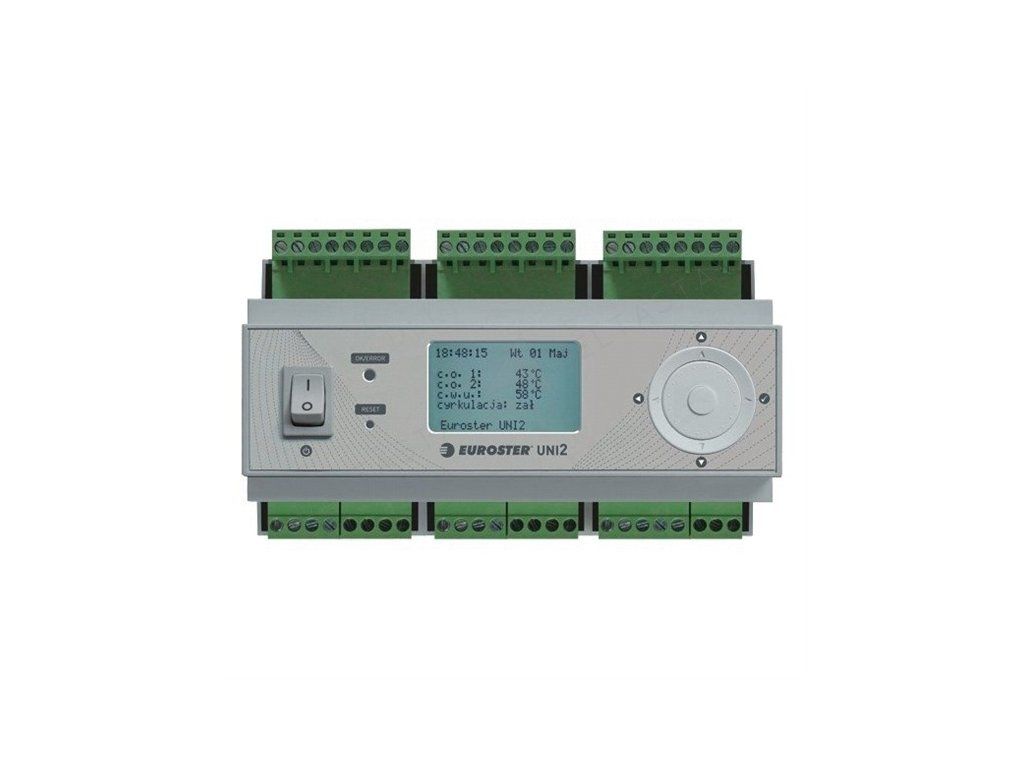

Euroster UNI2 - automatic (programmable) controller for 2 heating circuits.

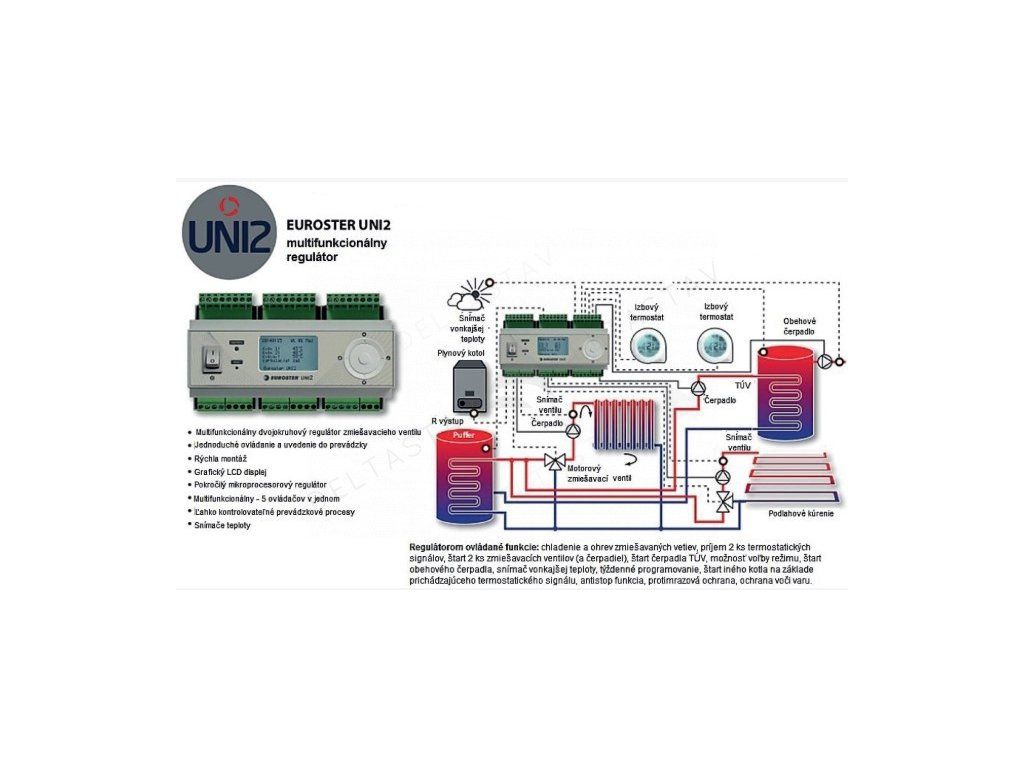

UNI2 is a multifunction controller designed for controlling a heating system equipped with two central heating circuits with mixing valves (e.g., radiators and floor heating supply).
Option to configure the controller according to the requirements of the existing system.
Equipped with a tank charging function and a DHW circulation circuit.
The UNI2 controller allows independent control of each heating circuit based on a weekly schedule with temperature and weather curve settings (applies only to central heating).

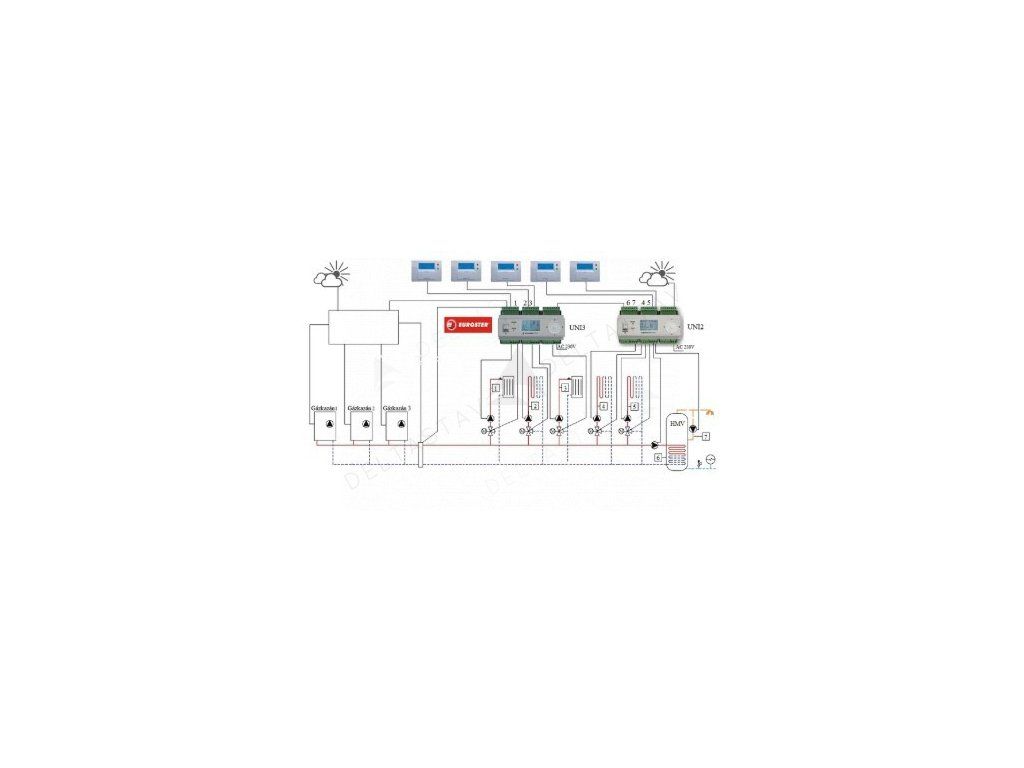

The communication module allows combining several UNI3 and UNI2 control units for extended systems.
UNI2 is equipped with a wide range of system protection functions: overheating protection for each zone, alarm in case of exceeding the permissible temperature, records of dangerous and alarm events.
The package also includes sensors.
Basic controller functions:
- control of two circuits via a mixing valve (e.g., radiator and floor heating)
- control of the tank charging pump with priority switching
- time and temperature control of the hot water circulation circuit
- independent setting of temperature and weather curves for each circuit
- independent control of each circuit in the room temperature controller and schedule
- change of heating season summer / winter
- control of hot water circulation according to an adjustable work schedule
- option to disable mixing control of the heating circuits
- disinfection function for hot water circuits
- output for controlling a gas boiler or other device
- alarm output
- register of dangerous events and alarms
- ability to test switching outputs
- overheat protection
- frost protection
- support for multiple languages
- compatibility with floor heating distributors
- Anti-Stop system for pumps and valves
Technical specifications :
- power supply : 230 V 50 Hz
- maximum consumption : 4W
- maximum output load : 100 W (each output)
temperature setting range :
- central heating circuit : 15°C - 90°C
- DHW circuit: 40°C - 75°C
- DHW circulation circuit: 20°C - 50°C
temperature measurement range : - 30°C ........ + 120°C
- temperature regulation accuracy : 1 °C
- operating temperature range : 0 °C ...... 40 °C
- storage temperature : 0°C ....... 55°C
- protection class : IP 20
- color : gray
- mounting : 35 mm rail, in protective housing
- alarm - output : 230 V 50 Hz
- boiler - output : potential-free, normally closed, maximum load 4A 230V 50Hz
- pump - output : 230 V 50 Hz
- power outputs for servomotors : 230 V 50 Hz
- weight (controller with cables) : 0.545 kg
- maximum dimensions (WxHxD) mm : 159.5/99/69 mm
Packaging includes :
- UNI2 controller, external temperature sensor 5m, additional temperature sensor 1.5m, tank temperature sensor 2.5m, circulation temperature sensor 2.5m, heating circuit temperature sensor, sensor straps 5 pcs, mounting clips for external temperature sensor 2 pcs, manual, power cable 1.5m
Additional parameters
| Category: | controllers for pumps and boiler rooms |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.6 kg |
