EUROSTER 11 M - programmable controller for circulation pump and 3-way valve
Code: EUROSTER 11 MProduct detailed description

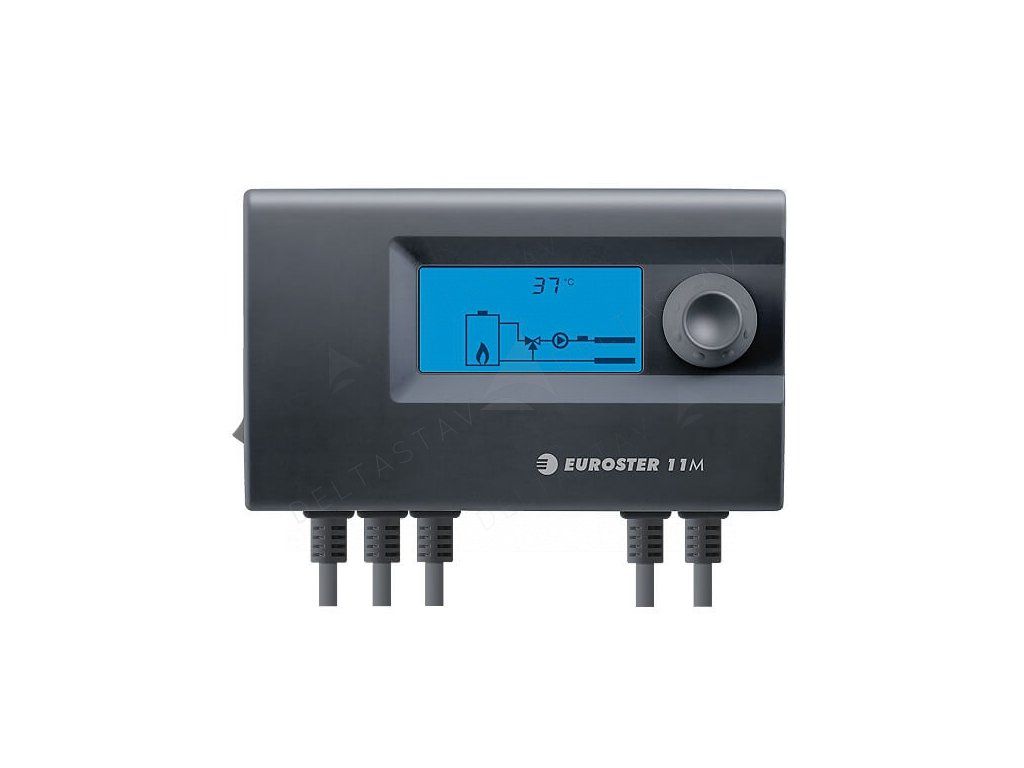

Euroster 11 M, programmable thermostat for heating systems with a circulation pump and a three-way valve.
Maintains the central heating temperature at a preset level, or checks the set temperature of the pumped water.
Monitors the supplied temperature. Works together with a room thermostat. Anti-Stop function.
Euroster 11 M is designed to control the actuator of the central heating mixing valve and the circulation pump.
It is a modern microprocessor controller for controlling heating systems with three-way valves with limit switches.
Maintains the central heating temperature at a preset level, or checks the set temperature of the pumped water.
Monitors the supplied temperature. Works together with a room thermostat. Anti-Stop function.
Practically all 230V 50Hz valves are supported.
Depending on the setting, it can control the temperature of the water entering the heating system, or the return water temperature.
The device can also control the operation of the circulation pump of the heating system and turn it off when the boiler is turned off.
PI regulation allows more precise and faster control of the heating system water temperature.
EUROSTER 11 M can be connected to room thermostats equipped with a voltage-free NO (normally-open) output (all thermostats of the brand EUROSTER have this type of output).
EUROSTER 11 M has two operating modes: it can control the temperature of the water entering the heating system (e.g., floor heating system) or the boiler return water temperature.
The device compares the set and current temperature.
If the difference is greater than half of the set hysteresis, the valve will slowly open / close, thus achieving smooth temperature changes of the heating water in the controlled circuit.
The speed of opening / closing the mixer depends on the value of parameter no. 3 (dynamics).
EUROSTER 11 M is equipped with an AntiStop system that protects the pump rotor or valve from clogging during inactivity.
Advantages of the device EUROSTER 11 M:
adjustable hysteresis
clear LCD display - backlit
possibility to correct temperature sensors
possibility to manually switch the pump
Technical specifications:
intended for: heating systems with a three-way valve, central heating pump
power supply: 230 V 50 Hz
rated output load: 3 A 230 V 50 Hz
rated power consumption: 1.6 W
temperature measurement range: + 0 °C ... + 110 °C
temperature regulation range: + 25 °C ... + 70 °C, or + 10 °C ... + 70 °C (central heating temperature control mode)
temperature regulation accuracy: 1 °C
temperature regulation hysteresis: 2 °C - 10 °C
status display: backlit LCD display
operating temperature range: + 5 °C ... + 40 °C
storage temperature range: 0 °C ... + 65 °C
IP rating: IP 40
color: black
mounting: wall-mounted
weight (controller with cables): 0.76 kg
certifications / standards: complies with EMC and LVD directives
dimensions (WxHxD) mm: 150/90/52
Packaging includes:
regulator Euroster 11 M, screws, instructions, sensor, mounting template
Additional parameters
| Category: | controllers for pumps and boiler rooms |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.8 kg |
