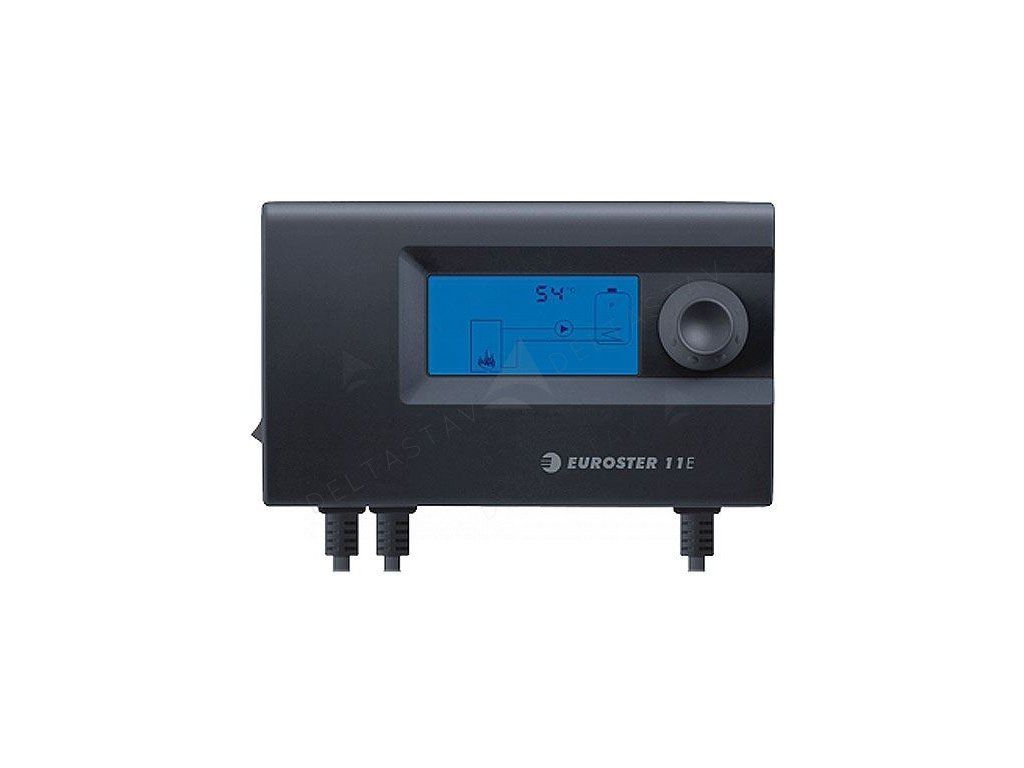

EUROSTER 11 E - programmable thermostat for 1 circulation pump
Code: EUROSTER 11 ERelated products
Product detailed description
Euroster 11 E, thermostat for 1 circulation pump (heating or TÜV).
Programmable controller with AntiStop function.

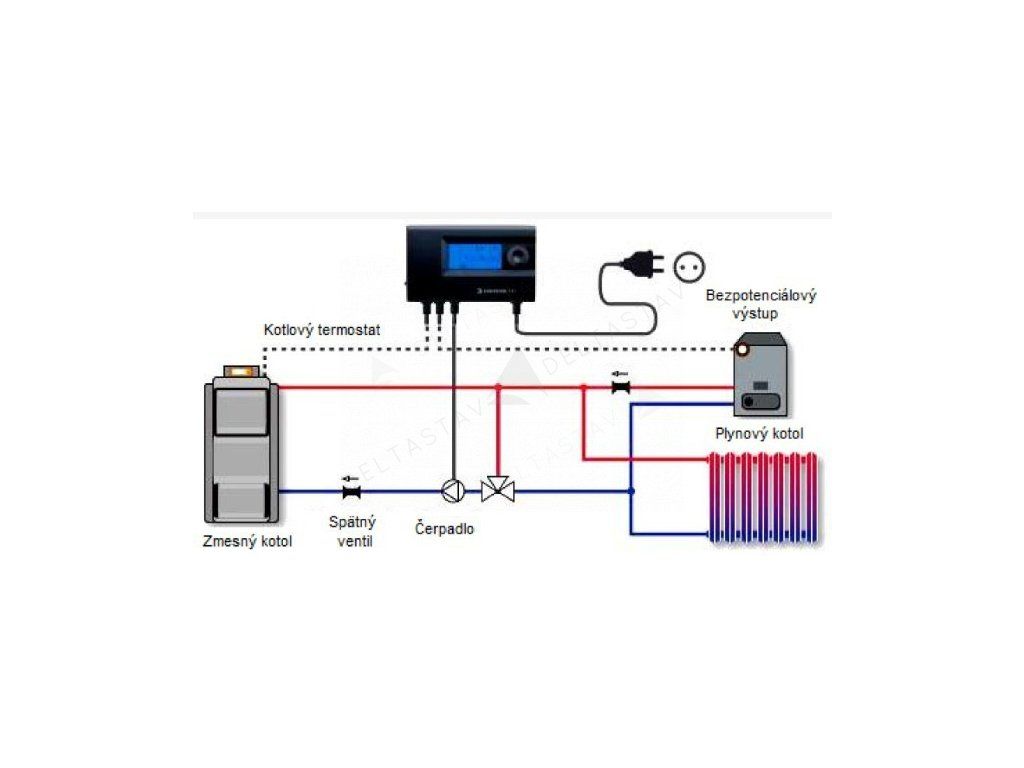

Euroster 11 E is a device used to control (turning on / off) the circulation pump of the heating system depending on the set temperature.
The pump can be connected either to the heating circuit or to the TÜV heating circuit.
As soon as the water temperature in the boiler is higher than the desired temperature (+ hysteresis), the pump is activated.
To prevent condensation in the boiler, the temperature must be set higher than the dew point temperature in the room using the rotary switch.
Stopping the pump after the boiler has turned off prevents undesirable cold water flow into the heating system, which would result in a rapid drop in temperature in the boiler and radiators.
EUROSTER 11 E is equipped with the AntiStop system, which protects the pump from clogging during long periods of inactivity (in summer months).
During the non-heating season, the pump is activated for 30 seconds every 14 days.
Advantages of the EUROSTER 11 E device:
- adjustable hysteresis

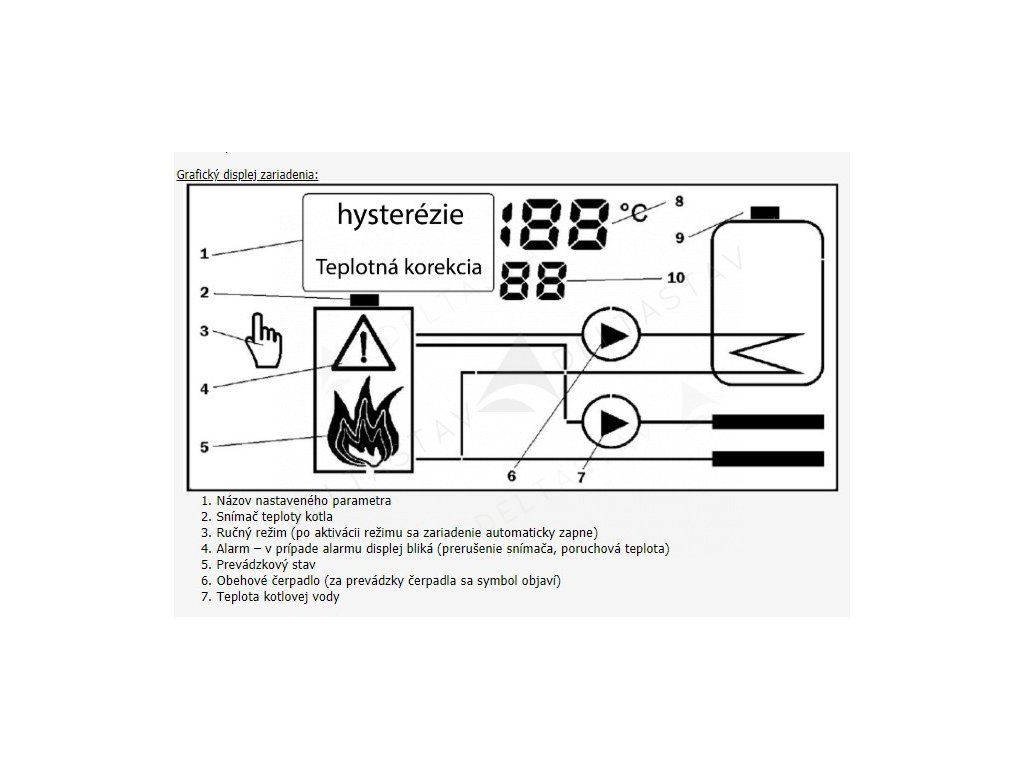

- clear LCD display - backlit
- possibility to calibrate temperature sensors
- possibility to manually switch the pump
- for heating systems with one circulation pump (heating or TÜV heating)
- 2 operating modes (heating or heating of TÜV tank)
- protects the pump from clogging
Technical specifications :
- Intended for : central heating pump, TÜV pump
- Power supply : 230 V 50 Hz
- Rated output load : 3 A 230 V 50 Hz
- Rated power consumption : 1.6 W
- Temperature measurement range : + 0 °C ... + 110 °C
- Temperature control range : + 10 °C ... + 80 °C
- Temperature control accuracy : 1 °C
- Temperature control hysteresis : 2 °C - 10 °C
- Status display : backlit LCD display
- Operating temperature range : + 5 °C ... + 40 °C
- Storage temperature range : 0 °C ... + 65 °C
- IP rating : IP 40
- Color : black
- Mounting : wall mounting
- Weight (controller with cables) : 0.54 kg
- Certificates / standards : complies with EMC and LVD directives
- Dimensions (WxHxD) mm : 150/90/52
Packaging includes :
- controller Euroster 11 E, screws, instructions, sensor, mounting template
Additional parameters
| Category: | controllers for pumps and boiler rooms |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.6 kg |
