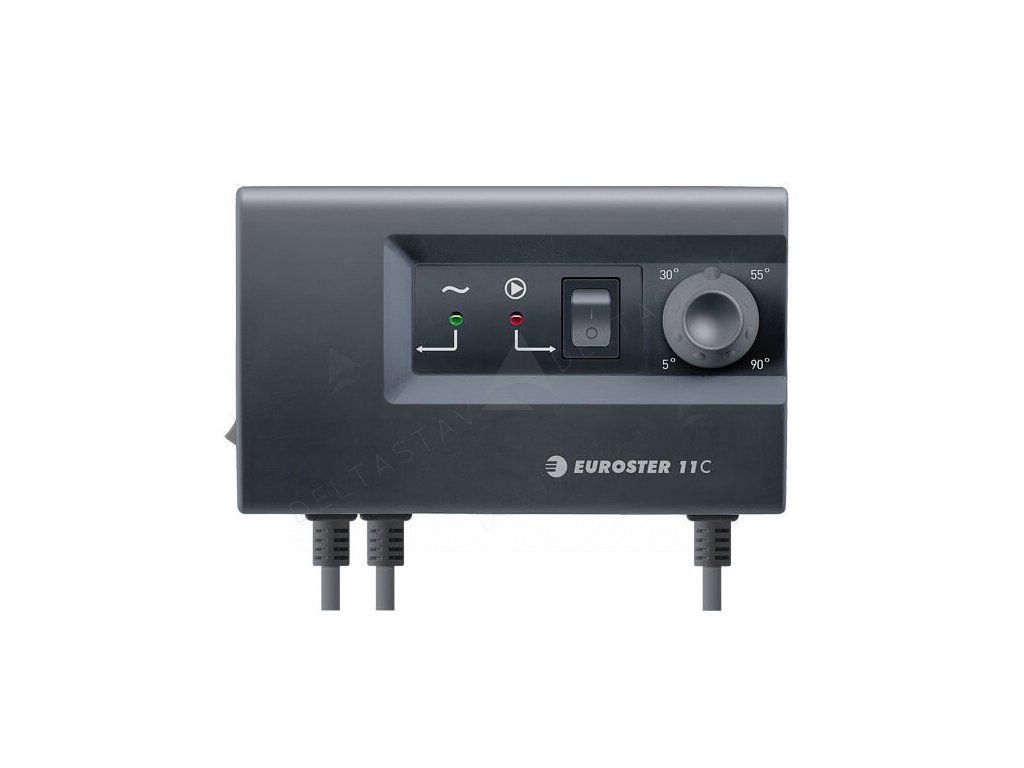

EUROSTER 11 C - electronic controller for controlling circulation pumps
Code: EUROSTER 11 CProduct detailed description
EUROSTER 11 C, thermostat for circulation pump UK.
The electronic controller for the pump automatically turns the pump on / off depending on the ratio of the current temperature to the preset temperature.
The Anti-Stop function of the controller prevents the rotor of the free-running pump from jamming.
Technical specifications:
- intended for: central heating circulation pump
- power supply: 230 V 50 Hz
- rated output load: 3 A 230 V 50 Hz
- rated power consumption: 1.4 W
- temperature measurement range: + 5 °C ... + 90 °C
- temperature control range: + 5 °C ... + 90 °C
- temperature control accuracy: 5 °C
- temperature control hysteresis: 5 °C
- status display: LED diodes
- operating temperature range: + 5 °C ... + 40 °C
- storage temperature range: 0 °C ... + 65 °C
- IP rating: IP 40
- color: black
- mounting: wall mounting
- weight (controller with cables): 0.52 kg
- certificates / standards: complies with EMC and LVD directives
- dimensions (WxHxD) mm: 150/90/52
Packaging includes:
- controller Euroster 11 C, screws, instructions, sensor, mounting template.
Additional parameters
| Category: | controllers for pumps and boiler rooms |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.6 kg |
