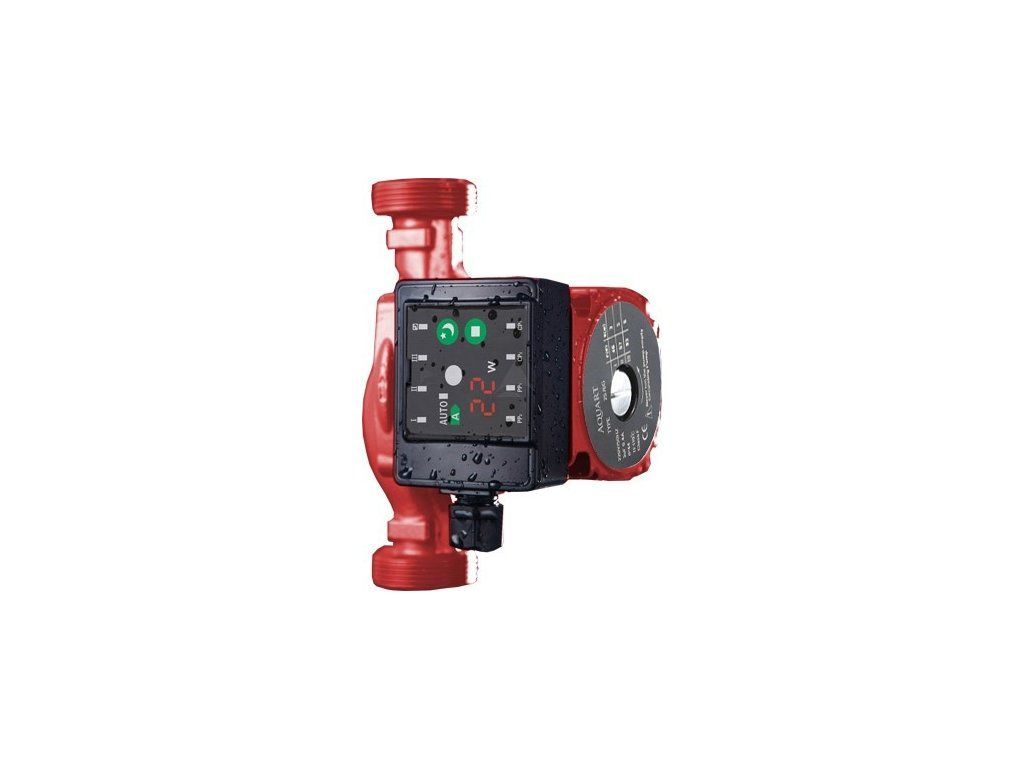

Electronic circulation pump AVANSA 25-6/180E

Product detailed description

- installation length 180 mm, delivery 6 m, max. flow 58 l/min

Circulating pumps are intended for central heating systems. The pump body is made of cast iron, cast aluminium. A high-quality bipolar motor, asynchronous, does not require overload protection, has three speeds. It is controlled by a special switch mounted on the terminal block, which allows the pump to be adjusted to the device characteristics.

Application:

• heating of all systems
• industrial circulation units
• cool water and air conditioning systems

Technical data:

• max. working pressure: up to 10 bar
• max. temperature of the pumped medium: + 110 °C
• protection class: IP44, insulation class: FH
• material of the pump part: cast iron / plastic
• performance: 1 ... 230 V, 50 / 60 Hz
• distance between suction and discharge nozzle: 180 mm
• electrical motor power: 45 W
• delivery: 6 m, max. flow: 58 l/min
• power: 5-45 W
• connection dimensions: 6/4“
