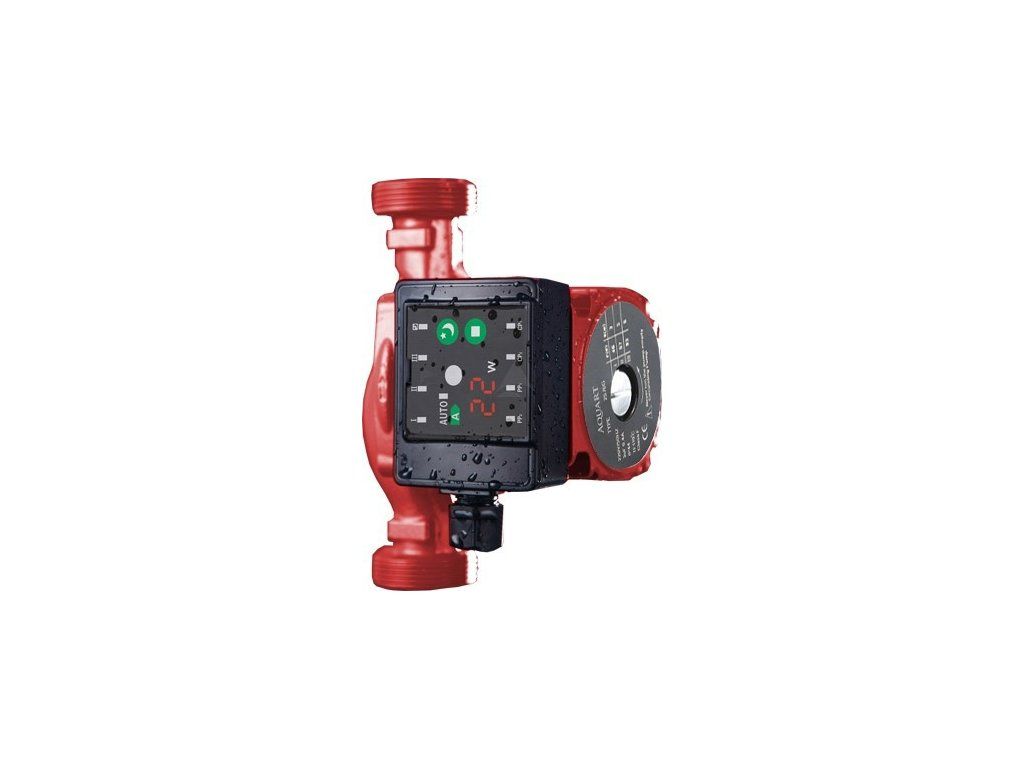

Electronic circulation pump AVANSA 25-4/180E

Product detailed description

 - mounting length 180 mm, head 4 m, max. flow rate 48 l/min

Circulation pumps are intended for central heating systems. The pump body is made of cast iron, cast aluminium. A high-quality bipolar motor, asynchronous, does not require overload protection, has three speeds. It is controlled by a special switch mounted on the terminal block, which allows the pump to be adjusted to the device characteristics.

Application:

• heating of all systems
• industrial circulation systems
• cool water and air conditioning systems

Technical data:

• max. working pressure: up to 10 bar
• max. temperature of the pumped medium: + 110 °C
• protection class: IP44, insulation class: FH
• material of pump parts: cast iron / plastic
• supply: 1 ... 230 V, 50 Hz
• distance between suction and discharge nozzles: 180 mm
• power 5-22 W
• electric motor power: 35 W
• head: 4 m, max. flow rate: 48 l/min
• connection dimensions: 6/4“
