Electric thermostat ADEX TTUV
Code: 125008Related products
Product detailed description
Electronic thermostat for setting the temperature of the TUV tank with the possibility to set the difference between the switching on and switching off temperature.
The electronic thermostat ADEX TTUV consists of a control module TTUV1, a switching module TTUV2 and a temperature sensor.
The control module TTUV1 ensures the setting of the thermostat's switching off temperature and the difference (difference) between the switching off and switching on temperature of the thermostat.
Two separate adjustment elements are used to set these parameters.

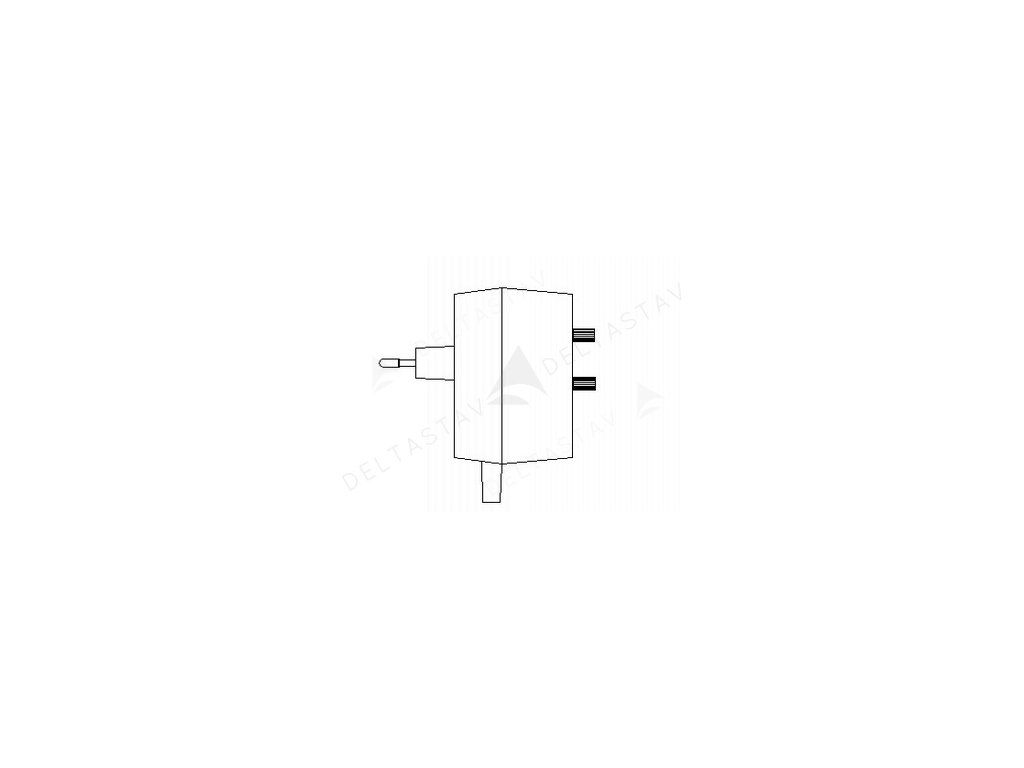

The switching module TTUV2 ensures the power supply of the thermostat TTUV and contains an output relay with a changeover contact.
The switching module is built into a plastic box with a mains plug.
The temperature sensor is delivered with a 180 cm lead.
Technical parameters:
- power supply 230V / 50Hz
- power consumption of electronics max. 1 VA
- range of setting the switching off temperature 40-90 ° C
- range of setting the difference 5 - 40 ° C (fig.1)
- contact load capacity max. 8A / 250V for resistive load
- protection class IP 40
- electrical appliance of class II
- part of it is a temperature sensor 1.8 m long
This type of thermostat was developed for the needs of charging the TUV tank with the aim of limiting the frequency of switching of the charging source - usually a gas boiler.
This is achieved by setting the difference between the switching on and switching off temperature to approximately 30 ° C.
Thanks to its universality, the thermostat TTUV finds application in a number of other applications as well.
The electronic thermostat ADEX TTUV is used to maintain the temperature within the selected range by controlling the heat source using a changeover contact of the relay.
By choosing the size of the range of switching off and switching on temperatures, it is possible to predetermine the frequency of switching of the heat source.
Thanks to the changeover contact of the relay, it is also possible to find applications for cooling or ventilation.
When the set temperature is reached on the connected sensor, the thermostat TTUV switches off the output relay.
When the temperature drops by the set difference, the output relay will switch on.
Additional parameters
| Category: | controllers for pumps and boiler rooms |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.5 kg |
