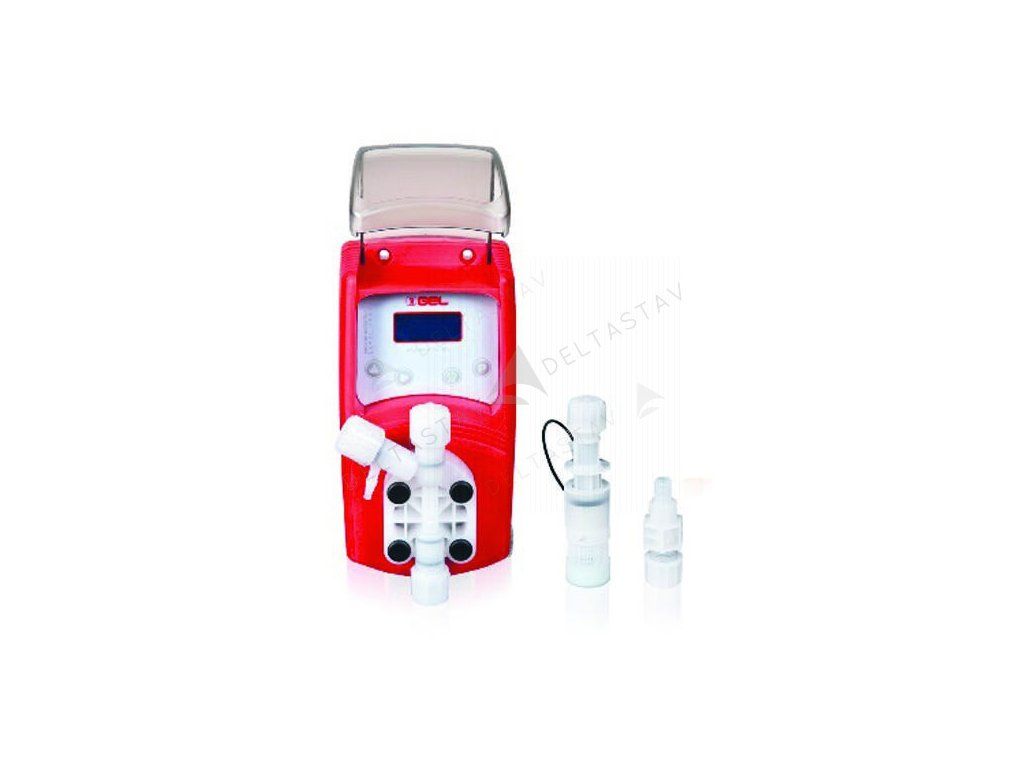

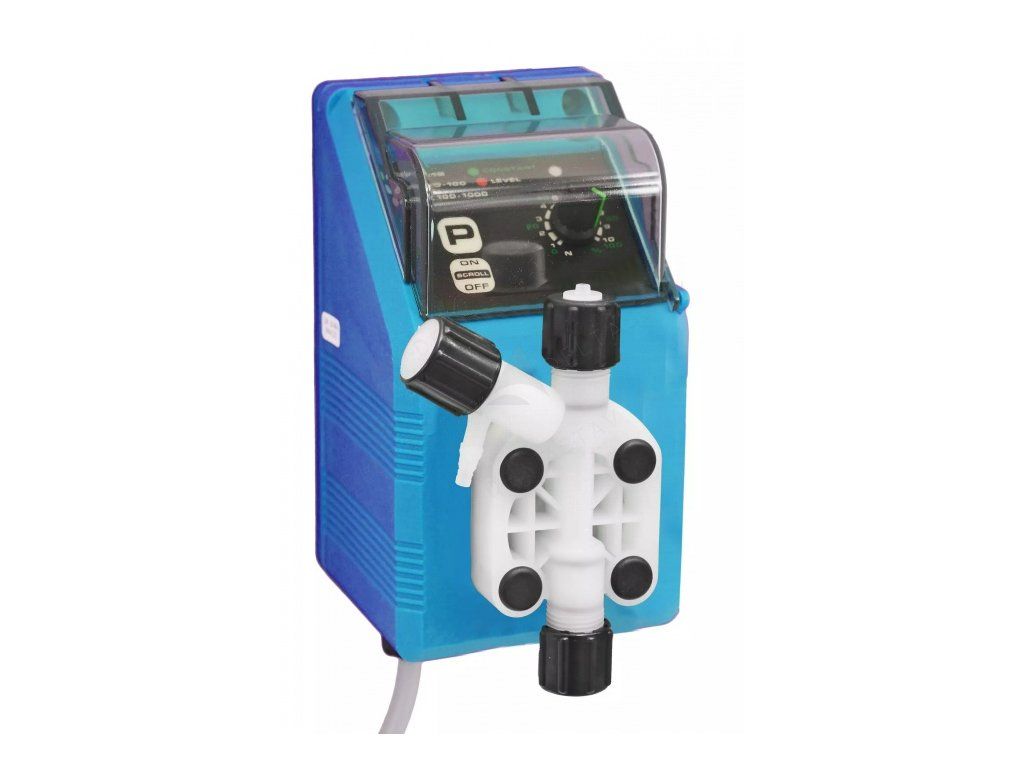

Dosing pump DOSAMATIC
Code: 106.191.X5M
Product detailed description
- use for dosing liquids and chemical solutions into the pipe,
dosing pump GEL DOSAMATIC PPI, PPI BIG and PPI X5M:
- proportional dosing pump (option to switch to constant dosing)
- setting: constant, division/multiplication of pulses, digital mA, mV
- pump blockage in case of low level
- flow rate: type GEL.DOSAMATIC PPI – up to 4 l/hour at pressure 10 bar
type GEL.DOSAMATIC PPI BIG – up to 10 l/hour at pressure 10 bar
type GEL.DOSAMATIC PPI X5M – up to 1.5 l/hour at pressure 7 bar
- adjustable dosing regulation – one pulse for 1/10/100 liters
- proportional dosing only with impulse water meters of the GEL.IVLI series
- connection: standard plug 230 V
- material: pump heads PVDF, O-rings FPM
- connection to pressure hoses PVDF size 6 x 4 mm
- delivery includes suction basket, injection nozzle 1/2” and adapter hose 6 x 4 mm
| Catalog No. | Type |
| IVAHADICEPVDF |
Additional parameters
| Category: | dosing pumps |
|---|---|
| Warranty: | 2 years |
