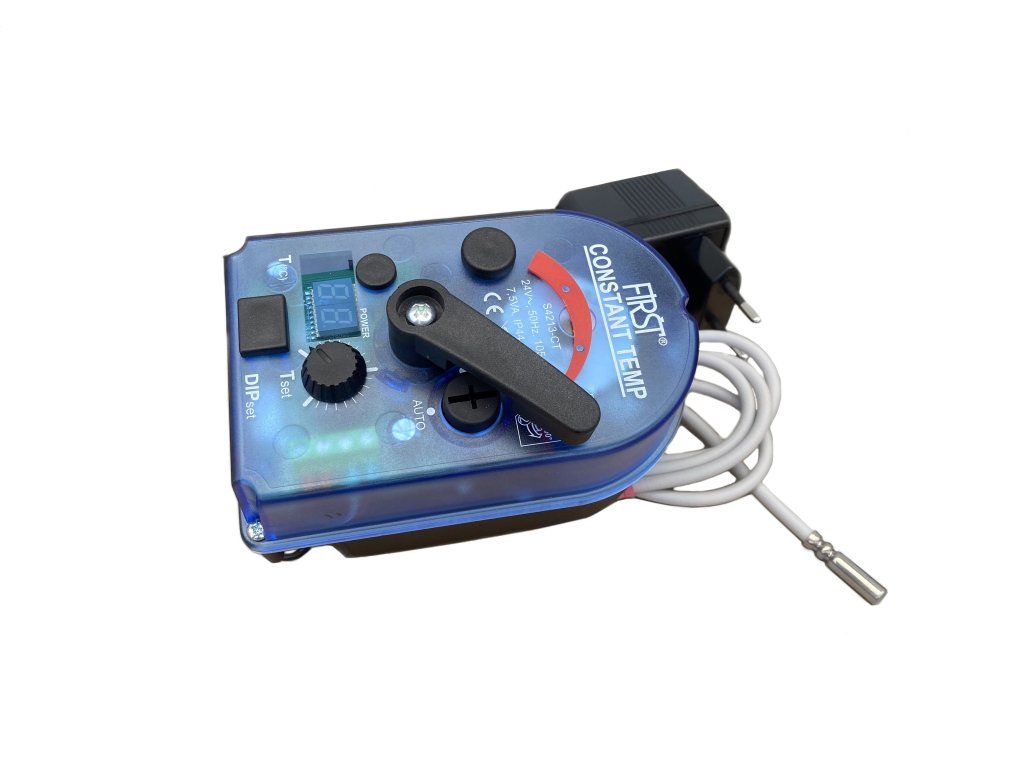

Control unit CONSTANTEMP

Code: F21169

Wholesale discount

Not rated Rating details

Brand: FIRŠT®

–20 %

201,72 € –20 % 161,38 € / pcs 131,20 € excl. VAT

In stock (14 pcs)

- for maintaining a constant temperature in the boiler heating circuit, suitable for three and four-way valves of type ROTOMIX F3, F4

Detailed information

Show all related products

Product detailed description

- control unit suitable for three- and four-way valves of type ROTOMIX F3, F4

It is designed to maintain a constant temperature in the boiler heating circuit (protection against condensation).
Suitable for use in floor heating, industrial processes, thermal accumulators.

Also suitable for use in domestic hot water systems or swimming pools.

Supplied with the following components:

adjustable control unit CONSTANT TEMP
adapter for 24V
power cable
temperature probe with pipe mounting

Technical specifications:

voltage 230V 50Hz, with adapter 24V 50Hz
setting the desired temperature using a rotary button, displayed on the display
rotation time: 105s / 90°
possibility to change the direction of the servo motor rotation clockwise and counter-clockwise
control options: manual/automatic
adjustable temperature range (0°C..95°C, 60°C...85°C, 20°C....80°C, 25°C...45°C)
max. temperature measurement range 135°C
temperature of heating medium: + 2°C to + 110°C
ambient temperature: 0°C to + 55°C
max. torque: 8 Nm
