Boiler module MULTIMIX-C- mixed
Code: 508156PEProduct detailed description

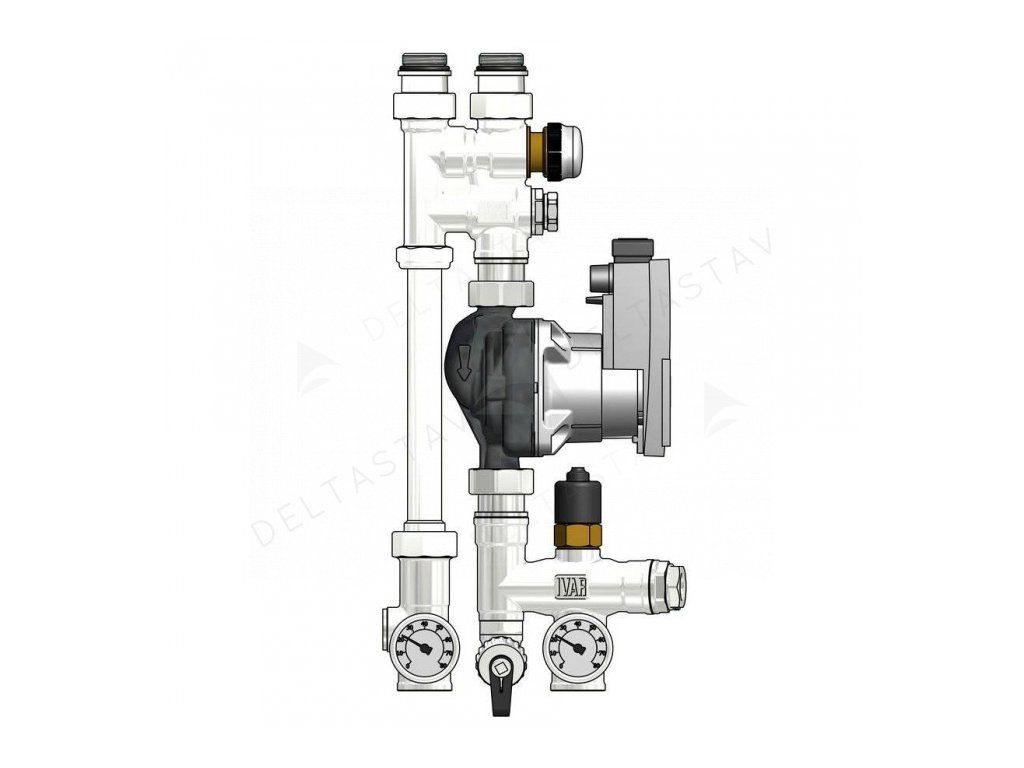

Boiler module IVAR.MUL-C 20 E - mixing.
- PN 10, T = +120 °C
- maximum flow 1700 l/h, Kv 4,34 / 4,87
Module contains: supply and return pipe, mixing valve, circulation electronic pump, balancing BY-PASS of secondary circuit, safety sensor, branch for temperature sensor drain, check valve, 2 pcs thermometers and filling / draining ball valve
- BY-PASS adjustable nominal flow rate Kv 0,27 to 6,50
- shut-off temperature of safety thermostat 60 °C
- connection size internal - external thread 3/4” F x 3/4” M
- material of distribution pipe copper, fittings brass CW617N, O-ring EPDM
- with circulation pump Qmax 3,3 m3/h; Hmax 6,9 m
Option of control using:
- thermostatic head with separate immersion sensor IVAR.T 5011U
- electronic head IVAR.TE 3061 with proportional control 0-10 V
- electronic actuator IVAR.UNIMIX SSA 31 with 3-position control signal
Additional parameters
| Category: | MULTIMIX-C boiler pump groups |
|---|---|
| Warranty: | 2 years |
| Weight: | 5 kg |
