AVANSA TH 1 - manual room thermostat
Code: AVANSA TH1Related products
Product detailed description

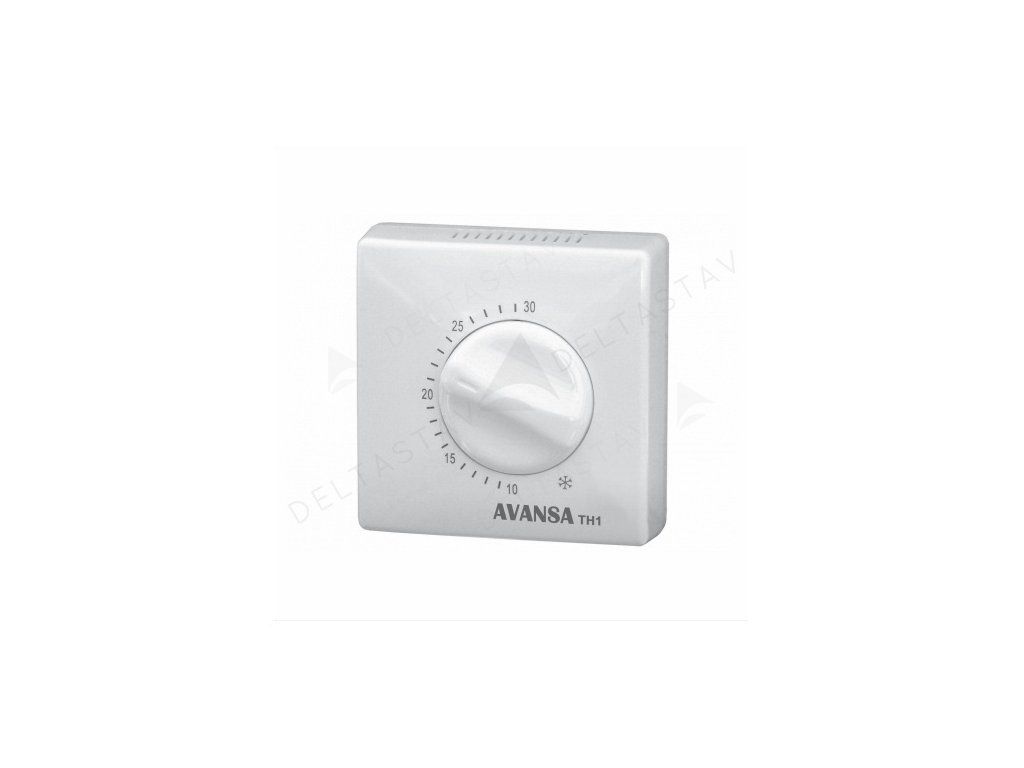

AVANSA TH 1 - room manual thermostat
Small, white thermostat with a temperature regulation range of air temperature from 10°C to + 30°C for wall mounting.
The thermostat is able to maintain the temperature in accordance with the values indicated on the scale, i.e. from 10°C to 30°C, and when turned to the extreme left position - anti-freeze temperature marked with a snowflake * 5°C
TH1 has a built-in switching contact NO / NC, so the thermostat can control heating or cooling and control low and high voltage up to 250 VAC with a load current up to 16A.
The thermostat is able to maintain the temperature in accordance with the values indicated on the scale, i.e. from 10°C to 30°C, and when turned to the extreme left position - anti-freeze temperature marked with a snowflake * 5°C
TH1 has a built-in switching contact NO / NC, so the thermostat can control heating or cooling and control low and high voltage up to 250 VAC with a load current up to 16A.
Thermostat installation:
- During installation, it is necessary to disconnect the thermostat from the electrical network.
- Reliable operation depends to a large extent on the correct installation location.
- The thermostat must be mounted at a place away from heat sources (radiator, TV, refrigerator) and out of the reach of direct sunlight at least 1.5 m.
- Installation near doors is not recommended due to air currents.
- The cable terminal connections are located inside the thermostat
- To access the terminals, it is necessary to remove the setting button and unscrew the screws that secure the cover.
- Connection is possible according to the diagram attached, located in the packaging.
Technical parameters:
- voltage: 16A 250V
- contact: AG 1000/1000
- operating temperature: +5°C ..... +30°C
- temperature difference: <1°C
- temperature gradient: 1°C/10 min.
- protection: IP20
Additional parameters
| Category: | non-programmable |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.3 kg |
