AVANSA 110 E - thermostat for circulation pump with digital display
Code: AVANSA 110 ERelated products
Product detailed description

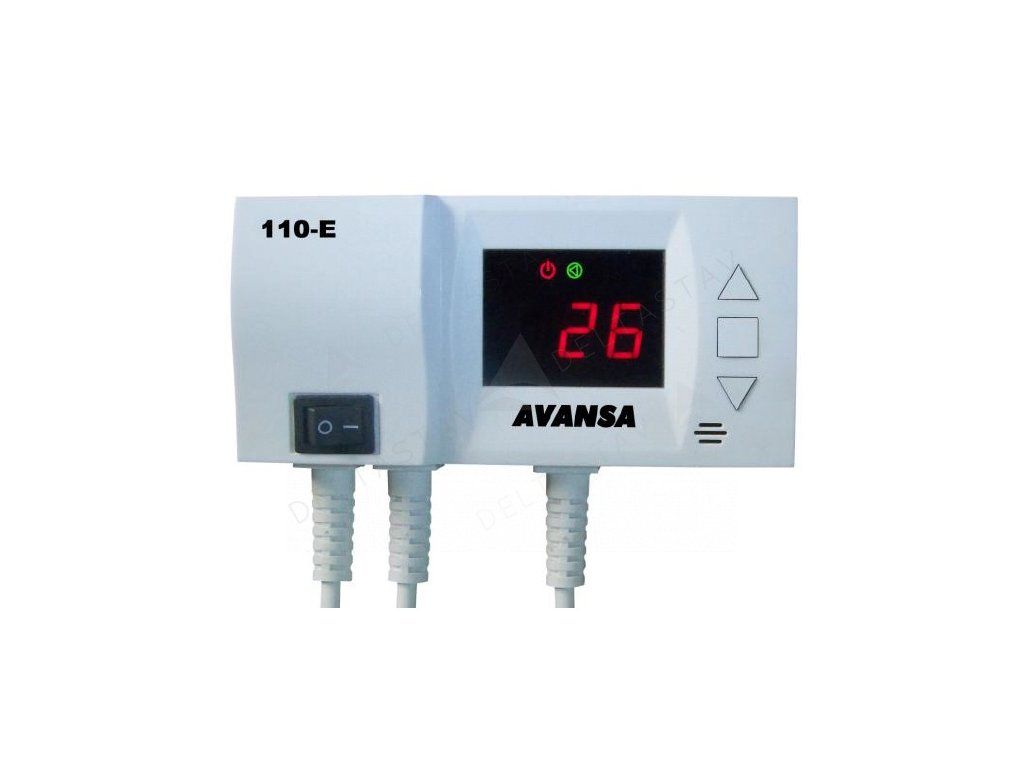

Thermostat AVANSA 110-E.
It is designed to control the circulation pump for heating.
The function of the thermostat is to switch on the pump when the temperature exceeds the set value and to switch it off if the boiler cools down (due to its shutdown).
This prevents unnecessary operation of the pump, which allows saving electrical energy (depending on the boiler usage, the savings can be up to 60%) and extends the pump's lifespan.
This increases reliability and reduces maintenance costs.
The thermostat is equipped with the Anti-Stop function, which protects the pump outside the heating season – it turns the pump on for 15 seconds every 15 days, and with the freeze protection function – if the temperature drops below 5°C, the pump is turned on.
Technical data:
- supply voltage: 230V 50Hz ±10%
- ambient temperature: -10...+50°C
- switching current: 6A
- temperature measurement range: 0...90°C
- temperature setting range: 5...80°C
- maximum sensor temperature: -10...120°C
- sensor length: 1.2 m
Additional parameters
| Category: | controllers for pumps and boiler rooms |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.6 kg |
