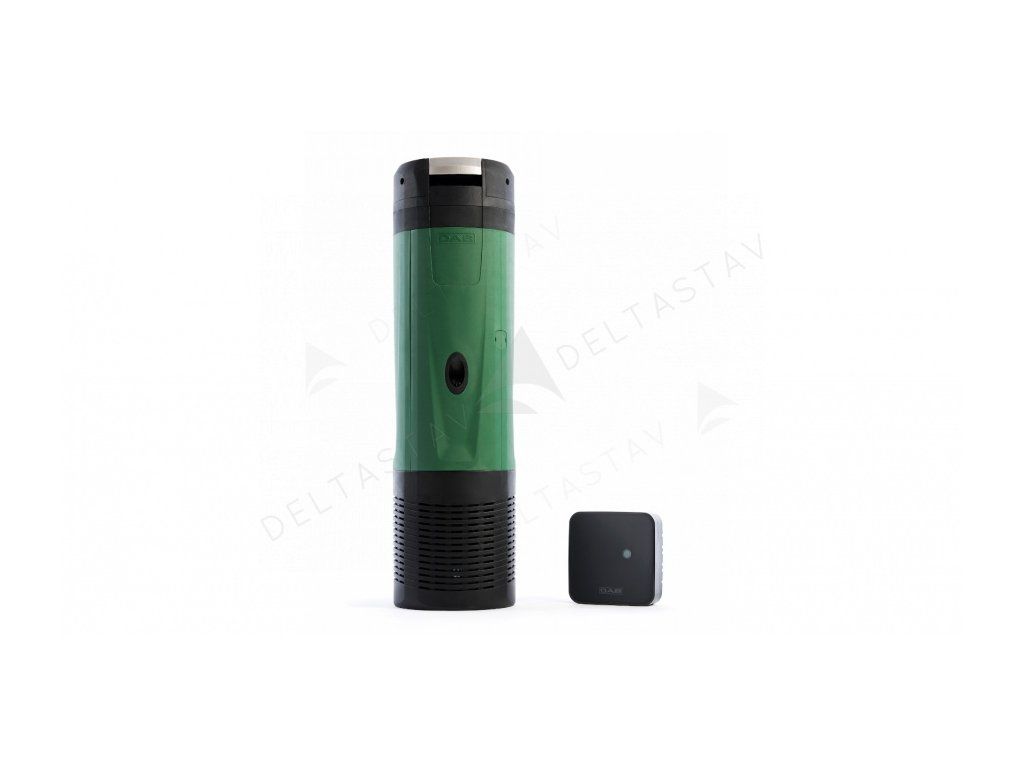

Automatic pump DAB ESYBOX DIVER with frequency inverter

Product detailed description

- 7" compact single-phase submersible pump with a diameter of 185 mm with an integrated frequency inverter, pressure tank and control unit D.Connect Box 2 for complete pump control via tablet or smartphone

• automatic start-up during water withdrawal and shuts off after the withdrawal is completed
• protected against dry running and excessive number of starts

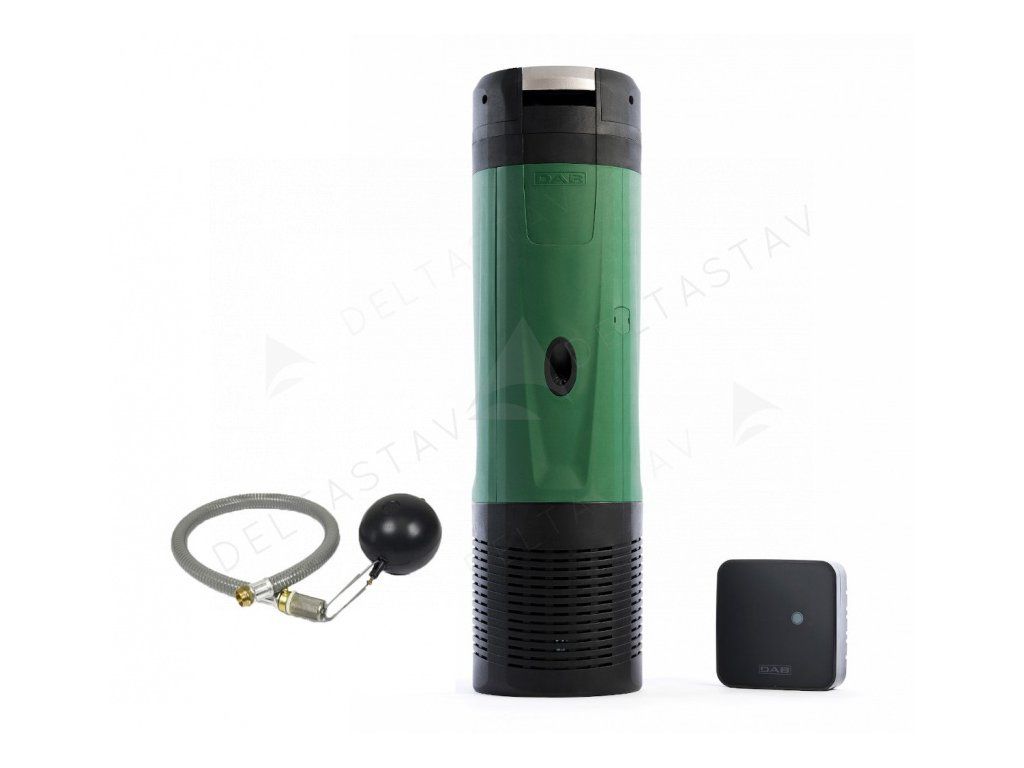

• version for outdoor installation and version X with floating suction basket
• supply cable 15 m
• connection G 1"

Technical specifications:

• Operating range: flow up to 7.2 m³/h with a head of up to 55 m
• Maximum submersion depth: standard version 12 m
• Type of pumped liquid: Clean, without solid or abrasive particles, non-viscous, non-aggressive,
   non-crystallizing, chemically neutral.
   Version for potable water certified according to WRAS, ACS, NSF 61 and 372
• Passability: 2 mm
• Minimum suction depth: 110 mm
• Minimum water level height: 35 mm
• Liquid temperature range: from +0 °C to +50 °C
• Minimum and maximum ambient temperature: < 0 °C / +50 °C
• Maximum submersion depth: 15 m
• Adjustable constant pressure: factory set to 3 bar,
   adjustable from 1 to 5.5 bar
• Discharge connection: threaded 5/4”
• Maximum pump diameter: 185 mm
• Impeller material: Technopolymer / stainless steel AISI 304
• Maximum number of starts: 60/h
• Continuous operation: yes
• Protection class: IP68
• Motor insulation class: F
• Supply cable (m), plug: 15 m with plug
• Single-phase power supply: 1x230 V 50 Hz

Possible installation methods:
Fixed, horizontal or vertical. Submersible or partially submersible. Can be installed on the surface, under the water level.

Version X also allows a dry version, surface vertical installation outside of water, but it is necessary to purchase the accessory DOC68
/please note in your message / not included with the pump.
