Automatic pump DAB DTRON 3

Product detailed description

- 7" compact submersible single-phase pump with a diameter of 185 mm with an integrated pressure tank and Com Box control unit, which allows pressure setting and alarm display

• automatic start-up during withdrawal and switches off after the withdrawal is completed
• protected against dry running and excessive number of starts

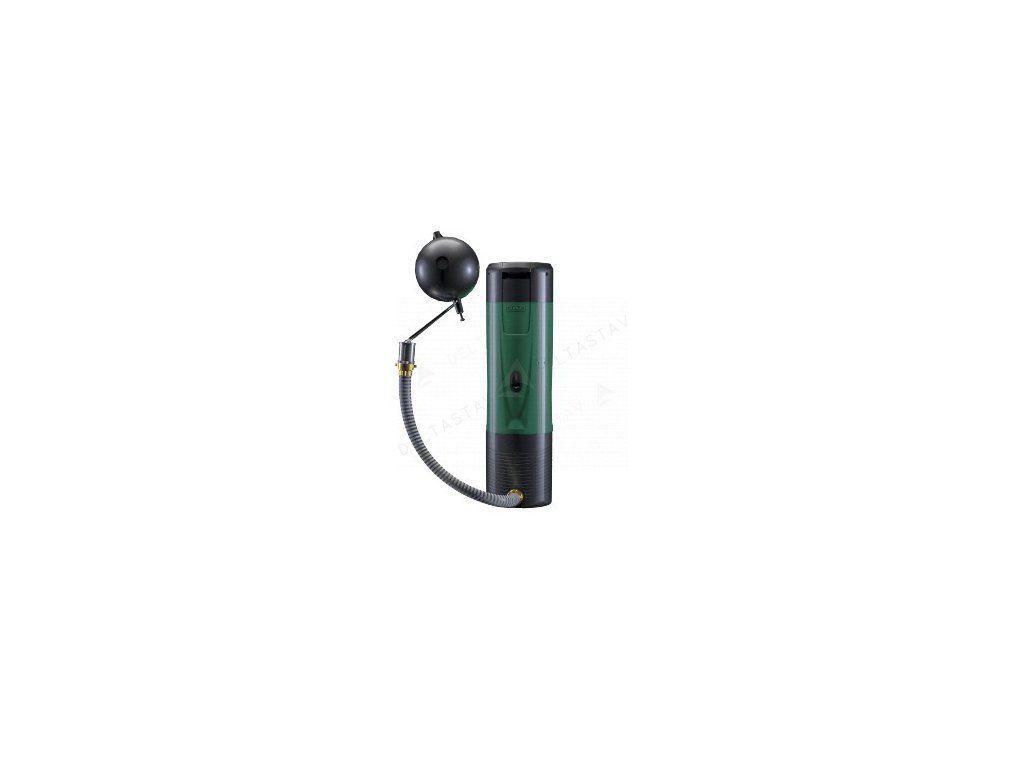

• version X with floating suction basket
• supply cable 15 m
• connection G 5/4"

Technical information:

• Operating range 45/90: flow up to 6 m3/h with a head of up to 45 m
                               35/120: flow up to 7.2 m3/h with a head of up to 37 m
• Max. submersion depth: 15 m
• Type of pumped liquid: clean, without solid or abrasive particles, non-viscous, non-aggressive, non-crystallizing, chemically neutral
• Passability: 2 mm
• Minimum suction depth: 110 mm
• Minimum liquid level height: 35 mm
• Temperature range of liquid: from +0 °C to +50 °C
• Minimum and maximum ambient temperature: < 0 °C / +50 °C
• Max. submersion depth: 15 m
• Set pressure: 2.4 bar (±0.2)
• Flanged/threaded connection: threaded 5/4”
• Maximum pump diameter: 185 mm
• Impeller material: technopolymer / stainless steel AISI 304
• Maximum number of starts: 60/h
• Continuous operation: yes
• Protection class: IP68
• Motor insulation class: F
• Power cable (m), plug: 10/15 m with plug
• Single-phase power supply: 1x230 V 50 Hz
• Possible installation methods: fixed, horizontal or vertical. Submerged or partially submerged. It can be installed on the surface, below the water level, or after installation of the DOC68 accessory outside in a vertical position (not part of the delivery).
