Additional module IVAR UNIMIX RS for manifold assembly UNIMIX
Code: 500456Product detailed description

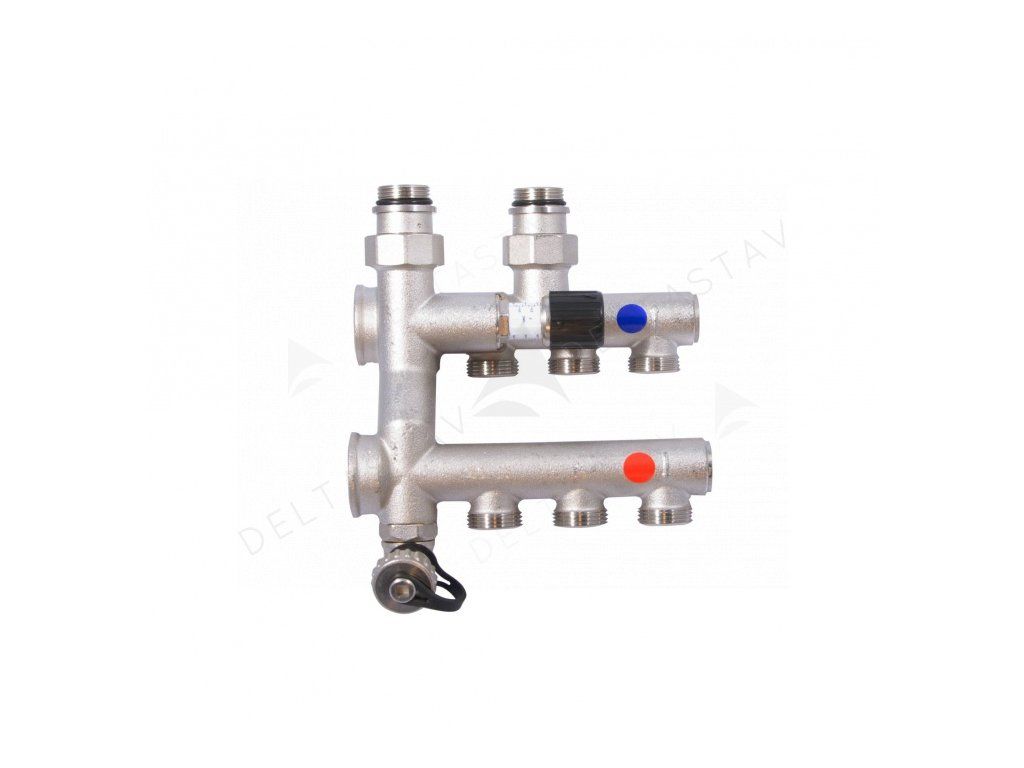

Additional module IVAR UNIMIX RS - distributor/collector for the UNIMIX assembly.
- PN 10, T = +120 °C
- for connection to the mixing assembly IVAR.UNIMIX using slip-on nuts allows solving the thermal comfort of the building by simultaneous operation of two temperature modes from one location
- assembly of the primary circuit distributor for connecting radiators
- three outputs for direct connection
- the module includes: three-way distributor and collector with outputs 3/4 ”EK, inputs 3/4”; filling and draining valve and integrated pressure relief valve with adjustment range 0.2 – 0.6 bar
- material: nickel-plated brass CW617N
- specification: 3/4" x 3/4" x EK
Note: connect using the IVAR.9723 R ball valve set or the corner connection of the distributor IVAR.AC 619 L – IVAR.AC 619
Additional parameters
| Category: | accessories, RTL valve and spare parts |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.6 kg |
