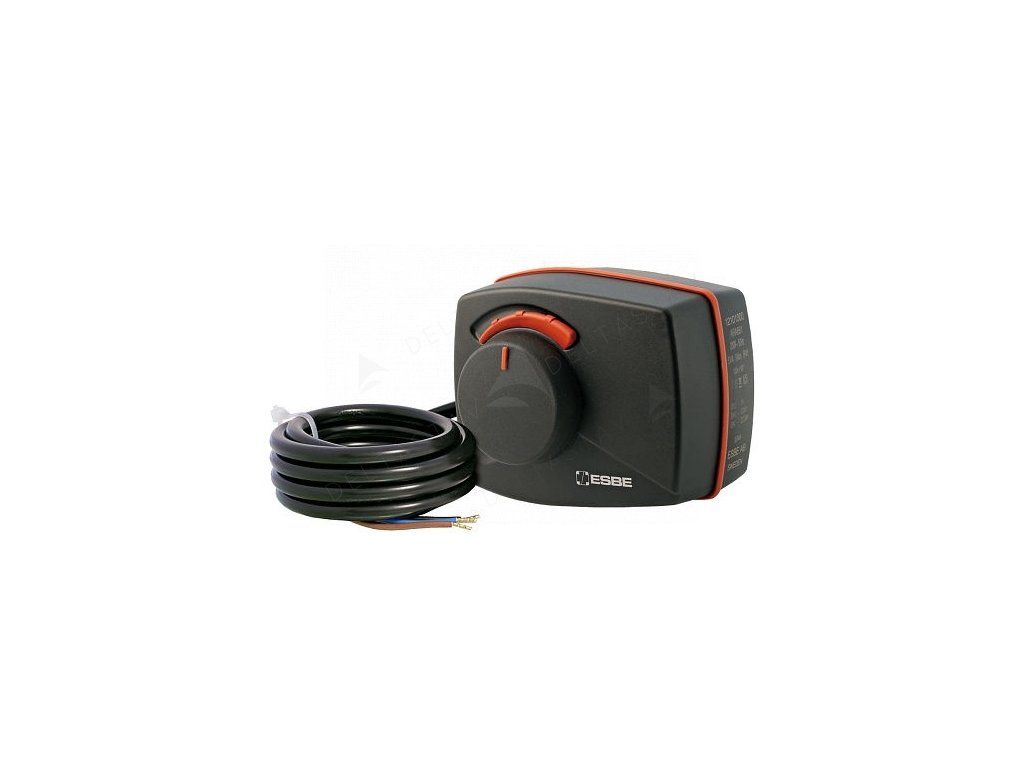

Actuator ESBE ARA
Code: 12101200Related products
Product detailed description
- is intended for the actuation of rotating mixing valves DN15-DN50.
The actuator has an operating angle of 90° and the valve can be operated manually if necessary, thanks to the pull-out button on the front side.
- cable length: 1.5 m
- ambient temperature: max +55°C
- protection class: IP 41
- ESBE ARA 653: supply voltage 24V, 3-point, travel time 60s and torque 6Nm
- ESBE ARA 663: supply voltage 24V, 3-point, travel time 120s and torque 6Nm
- ESBE ARA 651: supply voltage 230V, 3-point, travel time 60s and torque 6Nm
- ESBE ARA 661: supply voltage 230V, 3-point, travel time 120s and torque 6Nm
- ESBE ARA 639: supply voltage 0-10V / 24V, adjustment time 15s/30s/60s/120s
and torque 6Nm
- ESBE ARA 659: supply voltage 0-10V / 24V, adjustment time 45s/120s and torque 6Nm
- for 4-way valve ESBE VRG 141  |
